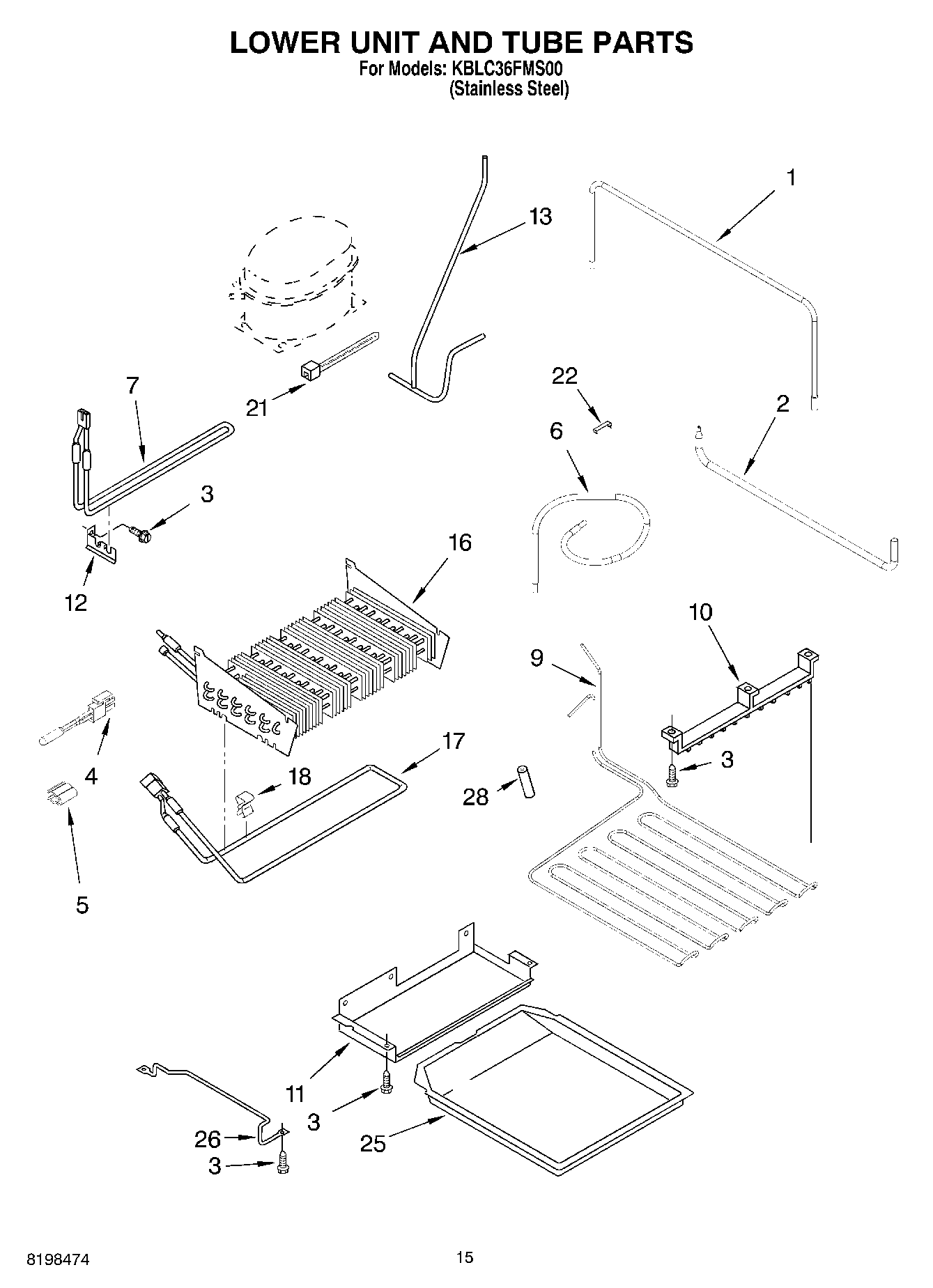

KBLC36FMS00 09 – LOWER UNIT AND TUBE PARTS
Written by
in
KBLC36FMS00 09 – LOWER UNIT AND TUBE PARTS
Products
Position
Product
1
Tube, Transition (Condenser)
2
Tube, Transition (Drier/Restrictor)
3
W11624204 Whirlpool Screw
4
WP2188819 Whirlpool Thermistor
5
CLIP
6
Suction Tube
7
Heater, Defrost (Rear)
9
Heater, Drain Pan
10
Hanger, Heater
11
Shield, Drain Pan
12
Support, Heater
13
Tube, Discharge
16
EVAPORATOR
17
Heater, Defrost (Front)
18
Clamp, Heater (2)
21
WPW10339879 Whirlpool Wire Tie
22
W10169509 Whirlpool Refrigerator Clip
25
WP2001264 Whirlpool Refrigerator Drip Pan
26
Bracket, Drain Pan (Left)
26
Bracket, Drain Pan (Right)
28
2215648 Whirlpool Refrigerator Dampener
←
