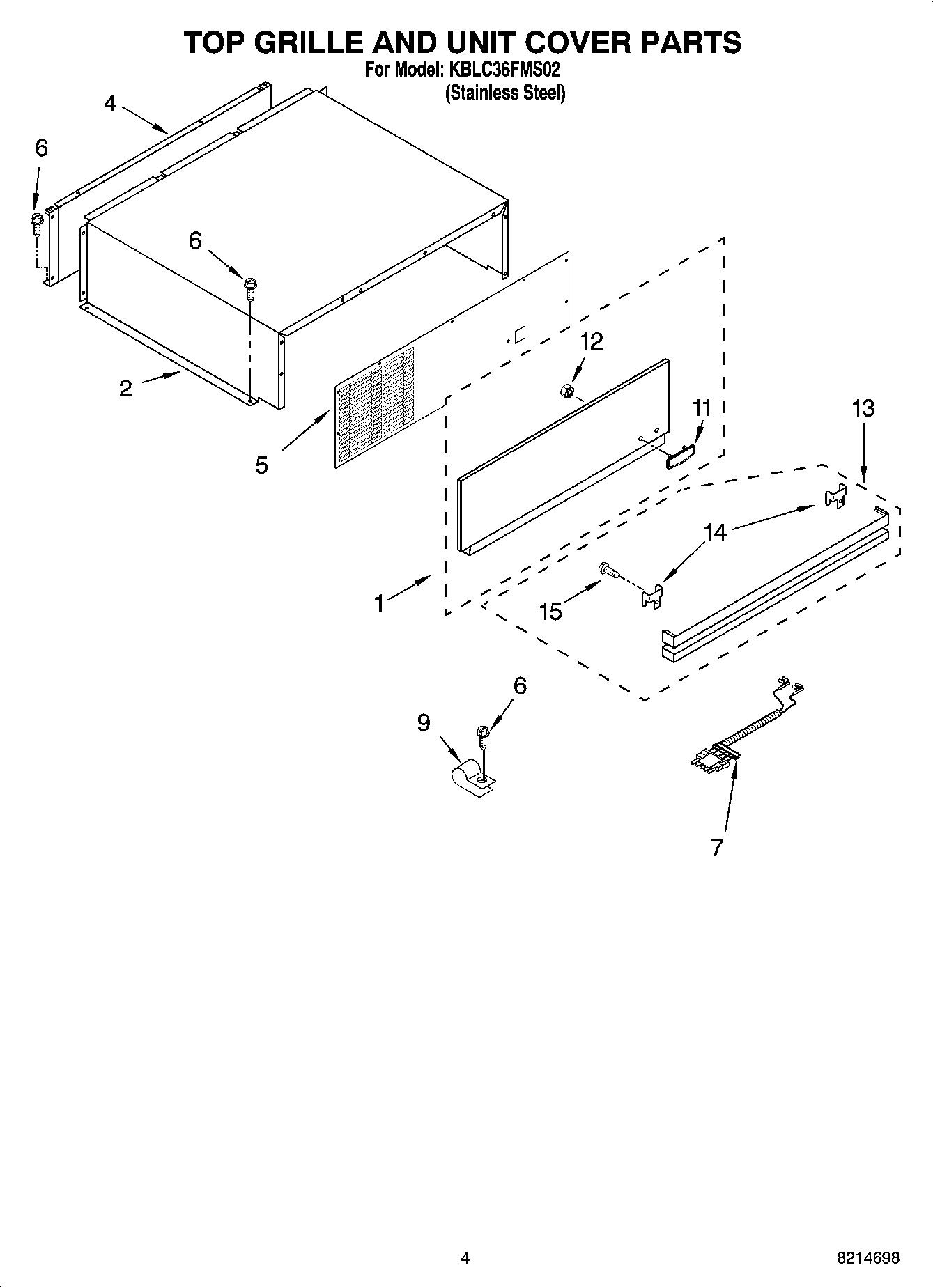

KBLC36FMS02 03 – TOP GRILLE AND UNIT COVER PARTS

KBLC36FMS02 03 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KBLC36FMS02 03 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly (Stainless Steel)
2Cover, Unit
42256466 Whirlpool Refrigerator Unit Cover
5Front, Unit Cover
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly
9489348 Whirlpool Refrigerator Tube Clamp
11Nameplate (Black)
12WP2004333 Whirlpool Refrigerator Nut
13Louver, Vent (Stainless Steel)
14Bracket, Louver
15303776 Whirlpool Dishwasher Screw
