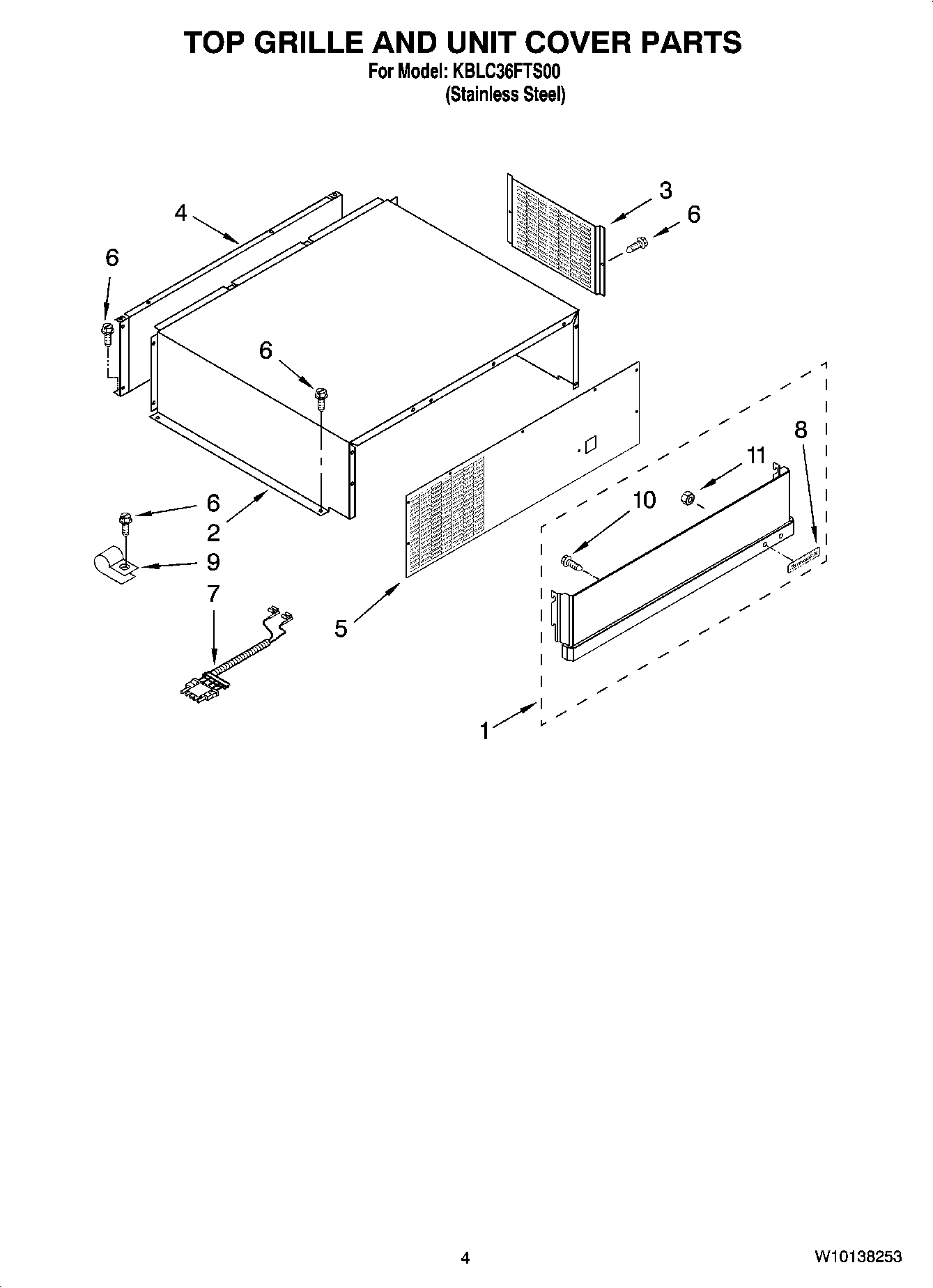

KBLC36FTS00 03 – TOP GRILLE AND UNIT COVER PARTS

KBLC36FTS00 03 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KBLC36FTS00 03 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1W10321109 Whirlpool Refrigerator Upper Grill
2Cover, Unit
3Grille, Condenser
42256466 Whirlpool Refrigerator Unit Cover
5Front, Unit Cover
6WP965173 Whirlpool Dishwasher Screw
72187894 Whirlpool Harness Switch
8NAMEPLATE
9489348 Whirlpool Refrigerator Tube Clamp
10WP489399 Whirlpool Refrigerator Screw
11WP2004333 Whirlpool Refrigerator Nut
