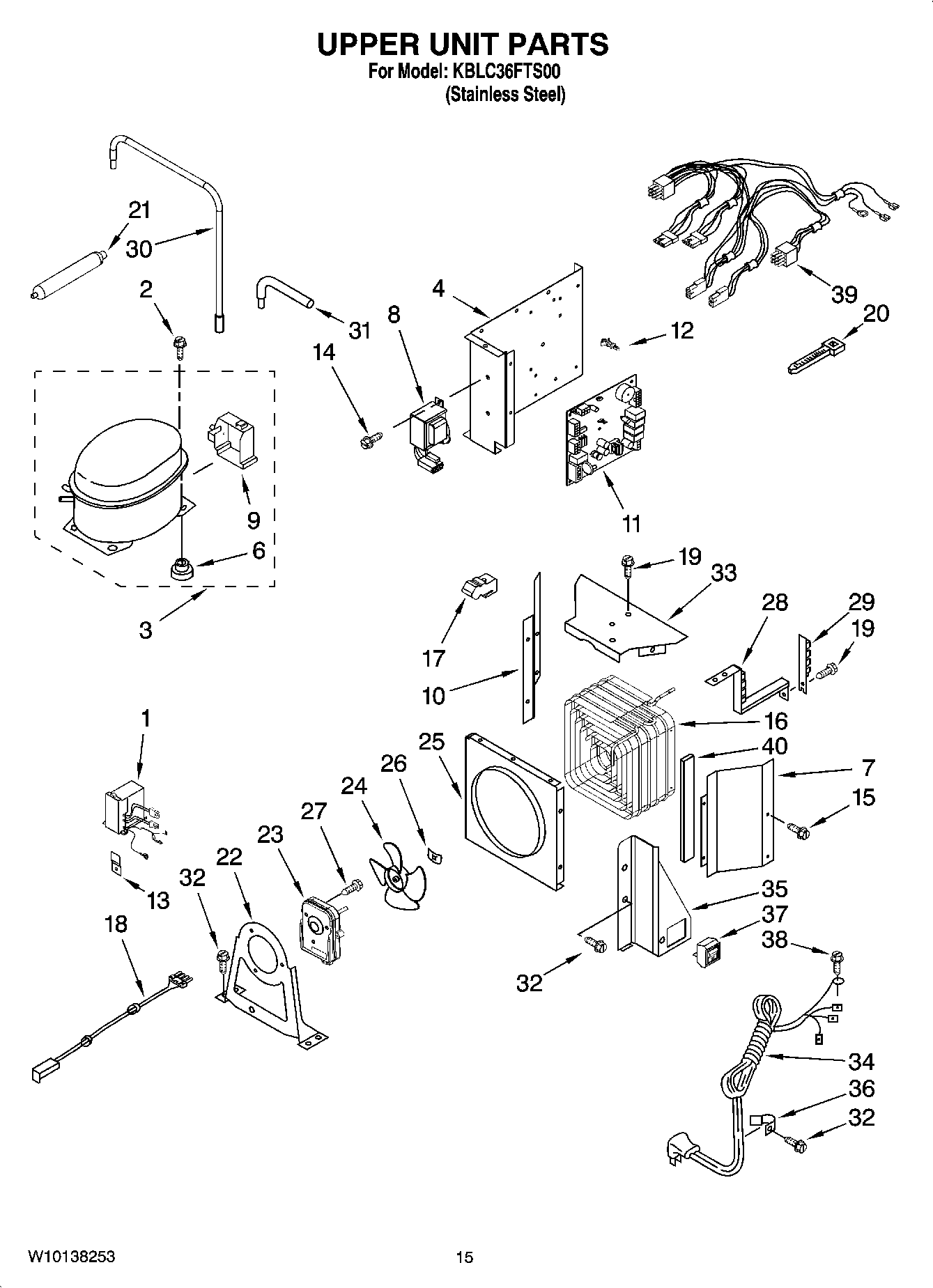

KBLC36FTS00 09 – UPPER UNIT PARTS

KBLC36FTS00 09 – UPPER UNIT PARTS

Written by

in

KBLC36FTS00 09 – UPPER UNIT PARTS

Products

Position	Product
	978027 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (1/2“)
	978030 Whirlpool Refrigerator Valve
	WP978025 Whirlpool Refrigerator Valve
	876764 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 5.50 oz. (R-134A)
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
	978026 Whirlpool Refrigerator Primary Valve
1	W10629033 Whirlpool Refrigerator Inverter Control Box
3	8201675 Whirlpool Refrigerator Compressor
4	Housing, Control Board
6	876811 Whirlpool Grommet
7	Support, Condenser (Right)
8	Transformer
9	2215676 Whirlpool Refrigerator Terminal Cover
10	Support, Condenser (Left)
11	W10219462 Whirlpool Refrigerator Electronic Control Board
12	WP2203075 Whirlpool Refrigerator Spacer
13	2256328 Whirlpool Bracket Assembly
14	WP965173 Whirlpool Dishwasher Screw
15	WP489069 Whirlpool Compactor Screw
16	2307998 Whirlpool Refrigerator Condenser
17	2309431 Whirlpool Grommet
18	2310207 Whirlpool Wire Harness
19	WP489399 Whirlpool Refrigerator Screw
20	WPW10339879 Whirlpool Wire Tie
21	WPW10143759 Whirlpool Dryer Filter
22	Bracket, Fan Motor
23	MOTOR-COND/INCL BLADE&BRKT
24	Blade, Fan
25	Orifice, Fan
26	WP486692 Whirlpool Refrigerator Nut
27	8281160 Whirlpool Screw
28	BRACKET, VIBRATION (CONDENSER)
29	ARM, VIBRATION (CONDENSER)
30	2307566 Whirlpool Refrigerator Tube
31	W10528578 Whirlpool Refrigerator Tube
32	W11624204 Whirlpool Screw
33	Cover, Condenser
34	WP2310251 Whirlpool Refrigerator Power Cord
35	W10185556 Whirlpool Refrigerator Bracket
36	549193 Whirlpool Refrigerator Power Clamp
37	WP2266802 Whirlpool Refrigerator Switch
38	WP489128 Whirlpool Refrigerator Screw
39	Wiring Harness, Unit Compartment
40	2309432 Whirlpool Seal Strip
