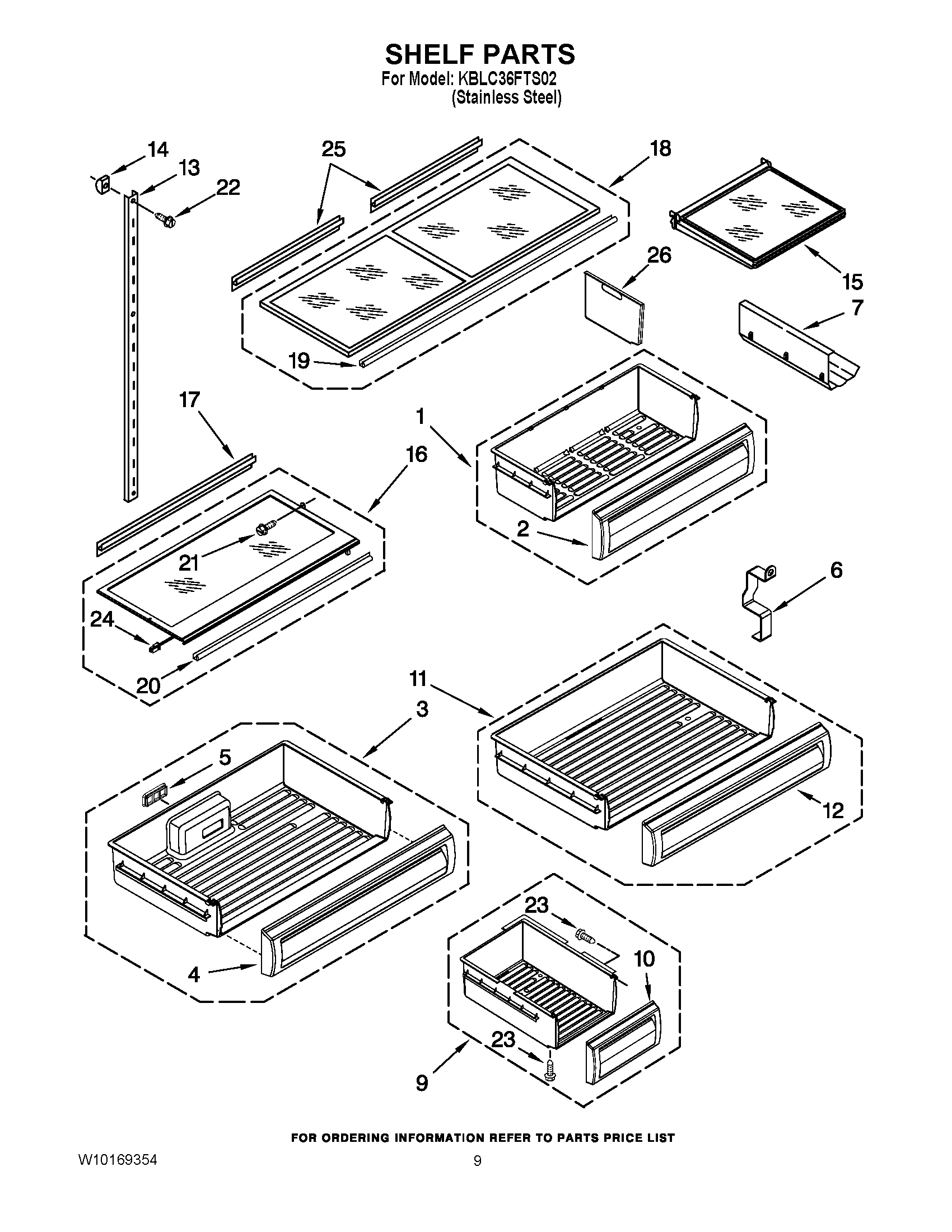

KBLC36FTS02 06 – SHELF PARTS

Products

Position	Product
1	WP2256375 Whirlpool Refrigerator Crisper Pan
2	2256374 Whirlpool Front Pan
3	Deli Pan Assembly (Incl. 4 & 5)
4	2257548 Whirlpool Refrigerator Front Pan
5	2307810 Whirlpool Refrigerator Air Duct
6	Locking Clip, Bin (Right Side)
6	Locking Clip, Bin (Left Side)
7	W10777924 Whirlpool Refrigerator Wine Rack
9	Ice Pan Assembly (Includes 10)
10	2306175 Whirlpool Refrigerator Front Pan
11	2327512 Whirlpool Freezer Pan
12	2268383 Whirlpool Front Panel
13	Ladder, Shelf (4)
14	520965 Whirlpool Refrigerator Support
15	Shelf (4)
16	Insulation, Deli
16	Cover, Deli Bin
17	Gasket, Rear
18	WPW10183749 Whirlpool Glass Shelf
20	Gasket, Front (Deli Cover)
21	Screw 8-15 x 1/2 (White)
22	2006475 Whirlpool Refrigerator Screw
23	WP488787 Whirlpool Refrigerator Screw
24	Light Assy, (Deli)
25	2309398 Whirlpool Pan Gasket
26	Divider, Crisper Pan
