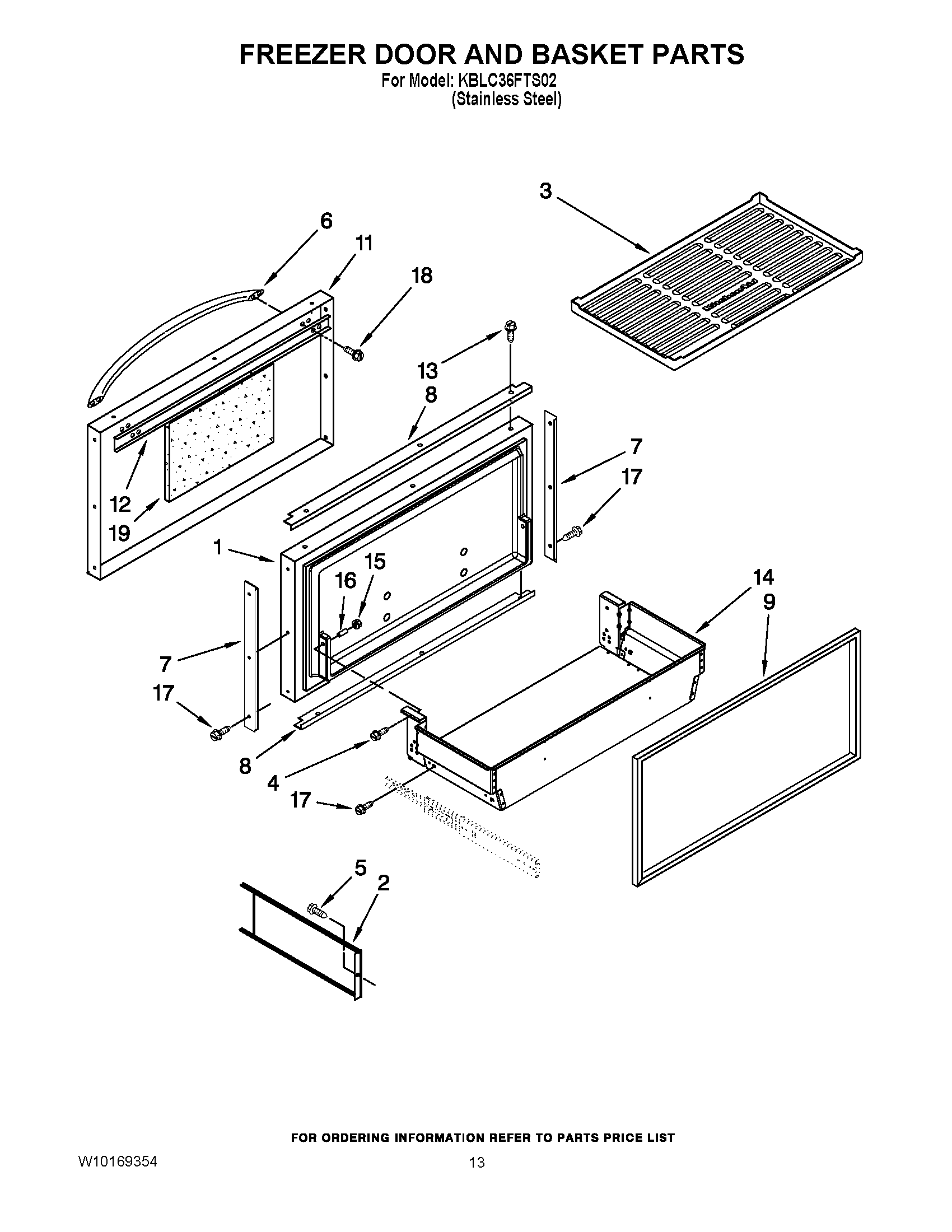

KBLC36FTS02 08 – FREEZER DOOR AND BASKET PARTS

KBLC36FTS02 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBLC36FTS02 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Item 9)
2Divider, Basket (2)
3Mat, Basket
4W10135775 Whirlpool Refrigerator Screw
5WPW10141625 Whirlpool Refrigerator Screw Assembly
6WP2316868 Whirlpool Refrigerator Handle
7Spacer, Door Edge Top & Bottom
82300027 Whirlpool Spacer
92302709 Whirlpool Refrigerator Door Gasket
11Skin, Door
12Plate, Handle
13WP8281250 Whirlpool Refrigerator Screw
14W10258182 Whirlpool Refrigerator Freezer Basket
15WP2207454 Whirlpool Refrigerator Nut
16WASHER
17W10109030 Whirlpool Refrigerator Screw
18WP308544 Whirlpool Screw
19Filler, Foam
