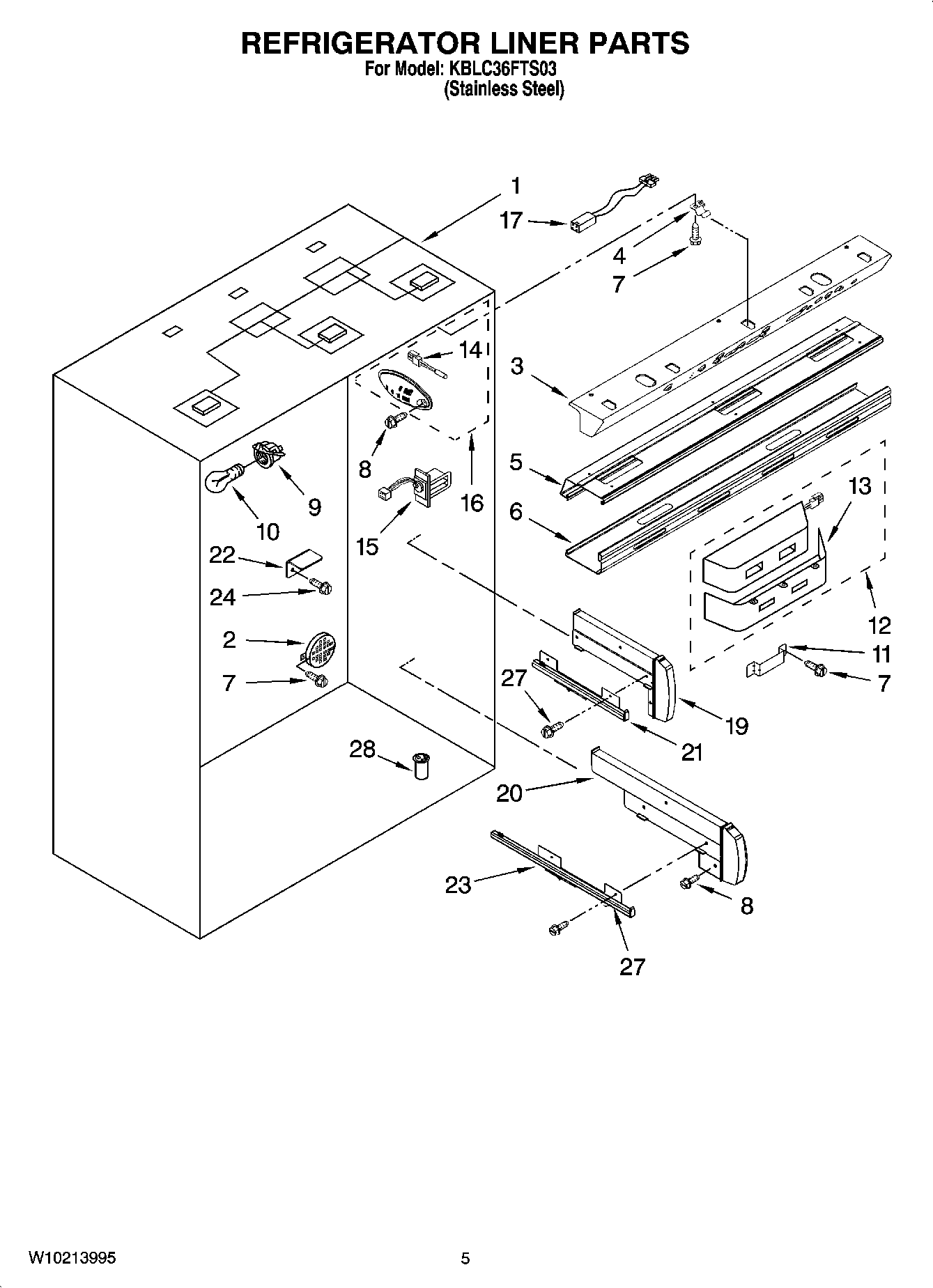

KBLC36FTS03 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner, Refrigerator (Not Servicable)
2	2317004 Whirlpool Refrigerator Air Cover
3	W10468945 Whirlpool Refrigerator Control Box
4	Clip, Control Box
5	Bracket, Control Box
6	Shield, Light
7	WP488729 Whirlpool Refrigerator Door Screw
8	WP488163 Whirlpool Refrigerator Screw
9	WPW10191429 Whirlpool Refrigerator Socket
10	WPA3073101 Whirlpool Light Bulb
11	Clip, Diffuser Cover
12	Diffuser Assembly
13	2320519 Whirlpool Refrigerator Cover
14	WP2188820 Whirlpool Refrigerator Thermistor
15	WP2221296 Whirlpool Air Baffle
16	WP2317844 Whirlpool Refrigerator Cover
17	2310164 Whirlpool Refrigerator Wire Harness
19	Spacer, Crisper (Right)
19	Spacer, Crisper (Left)
20	Spacer, Deli (Right)
20	Spacer, Deli (Left)
21	2302952 Whirlpool Refrigerator Slide
21	2302953 Whirlpool Refrigerator Slide
22	Support, Crisper Cover
23	2302956 Whirlpool Refrigerator Slide
23	2302957 Whirlpool Refrigerator Slide
24	WP8533928 Whirlpool Refrigerator Screw
27	WP3400886 Whirlpool Refrigerator Screw
28	WP2210509 Whirlpool Refrigerator Tub Valve
