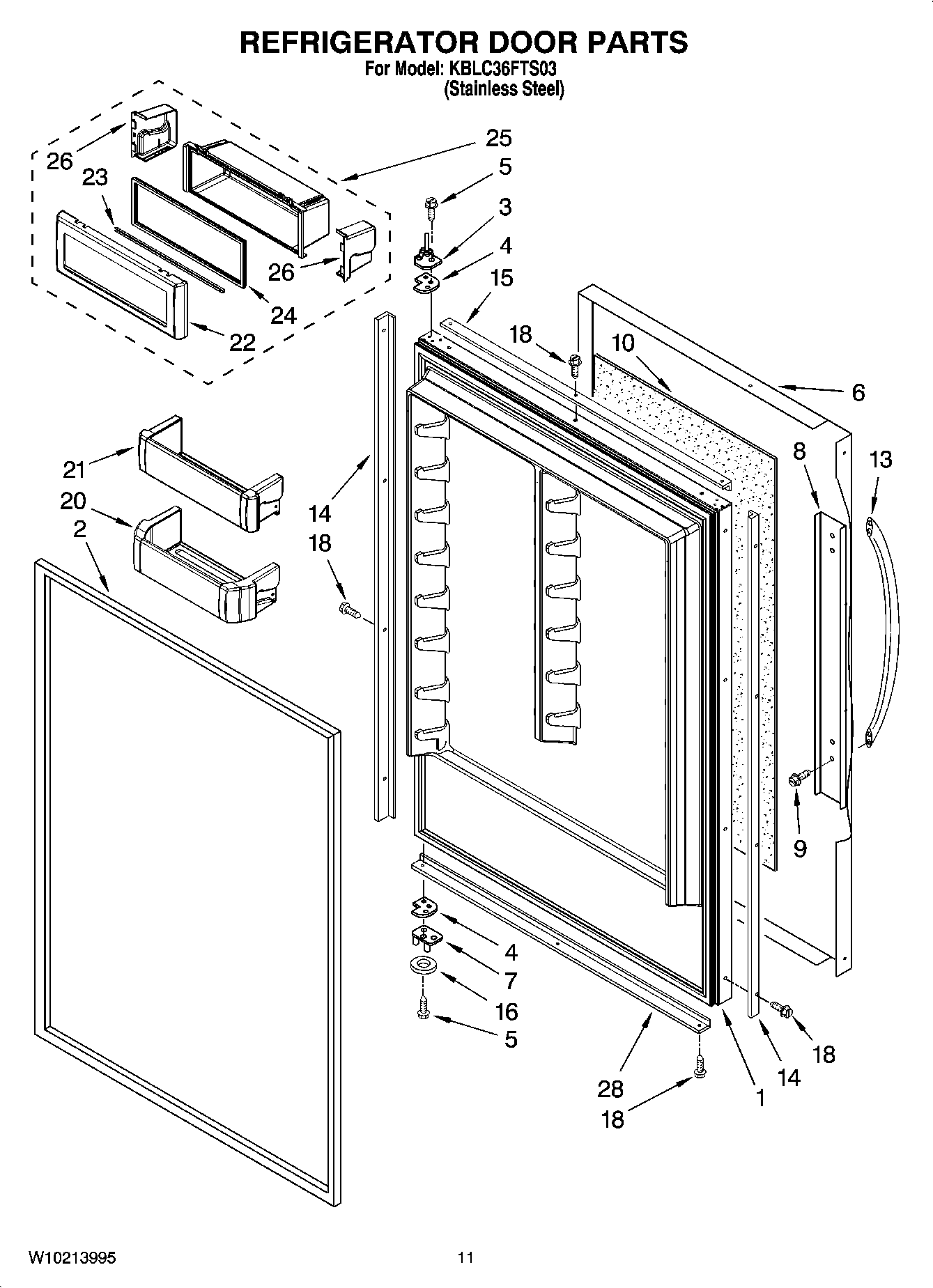

KBLC36FTS03 07 – REFRIGERATOR DOOR PARTSadmin2025-04-26T11:40:22+00:00KBLC36FTS03 07 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Door, Refrigerator (Includes Item 2) |
| 2 | 2302709 Whirlpool Refrigerator Door Gasket |
| 3 | Hinge Assembly, Top |
| 4 | W11673500 Whirlpool Door Hinge |
| 5 | W11474472 Whirlpool Screw |
| 6 | Skin, Door |
| 7 | 2316807 Whirlpool Refrigerator Door Hinge |
| 8 | W10127710 Whirlpool Refrigerator Plate |
| 9 | WP308544 Whirlpool Screw |
| 10 | Filler, Foam |
| 13 | WP2316868 Whirlpool Refrigerator Handle |
| 14 | Spacer, Door Edge - Side (2) |
| 15 | SPACER, DOOR EDGE (TOP) |
| 16 | WP2006346 Whirlpool Refrigerator Washer |
| 18 | WP8281250 Whirlpool Refrigerator Screw |
| 20 | W10323749 Whirlpool Refrigerator Cantilever Bin |
| 21 | W11590561 Whirlpool Refrigerator Cantilever Bin |
| 22 | Door, Utility Bin |
| 23 | Rail, Lid |
| 24 | Gasket, Utility Bin |
| 25 | W10323044 Whirlpool Refrigerator Cantilever Bin |
| 26 | WPW10323172 Whirlpool Refrigerator Retainer End Cap |
| 26 | WPW10323173 Whirlpool Refrigerator Retainer End Cap |
| 28 | SPACER, DOOR EDGE (BOTTOM) |
