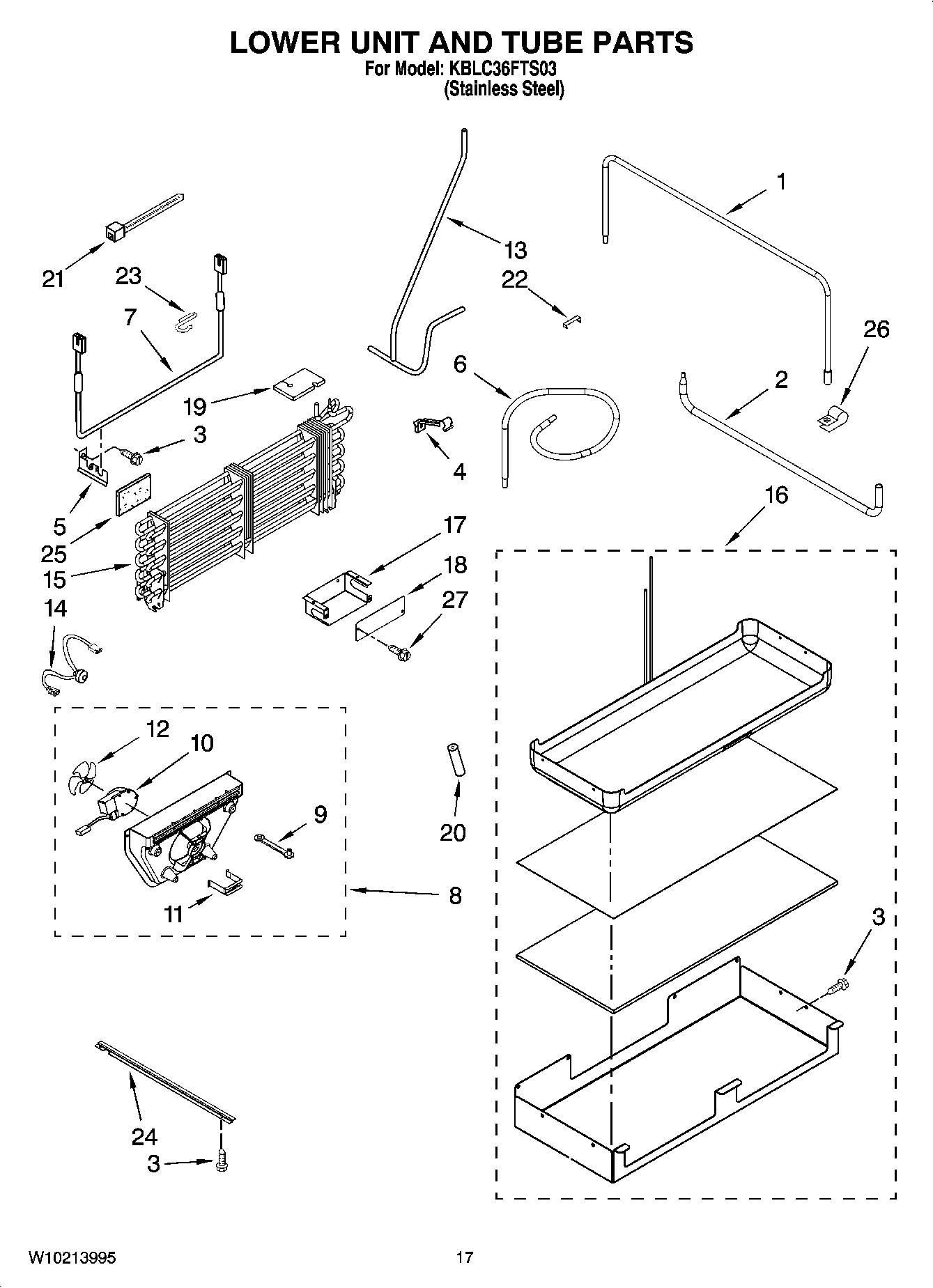

KBLC36FTS03 10 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	Tube, Transition (Condenser)
2	W10388653 Whirlpool Refrigerator Tube
3	W11624204 Whirlpool Screw
4	2307944 Whirlpool Clip
5	Bracket, Mounting
6	Tube, Suction
7	WP2268393 Whirlpool Refrigerator Heater
8	Scroll Assembly
9	W11669856 Whirlpool Grommet
10	Motor, Fan
11	8201663 Whirlpool Refrigerator Primary Fan Blade
12	WP2169142 Whirlpool Fan Blade
13	2309073 Whirlpool Refrigerator Tube
14	W10139165 Whirlpool Refrigerator Wire Harness
15	WPW10195923 Whirlpool Refrigerator Evaporator Assembly
16	WPW10281063 Whirlpool Refrigerator Heater Pan
17	Cover, Wiring
18	Cover, Wiring
19	Block, Evaporator
20	2215648 Whirlpool Refrigerator Dampener
21	WPW10339879 Whirlpool Wire Tie
22	W10169509 Whirlpool Refrigerator Clip
23	Clip, Heater
24	2320554 Whirlpool Bracket
25	W11553819 Whirlpool Refrigerator Insulation
26	Clamp, Tube
27	WP489069 Whirlpool Compactor Screw
