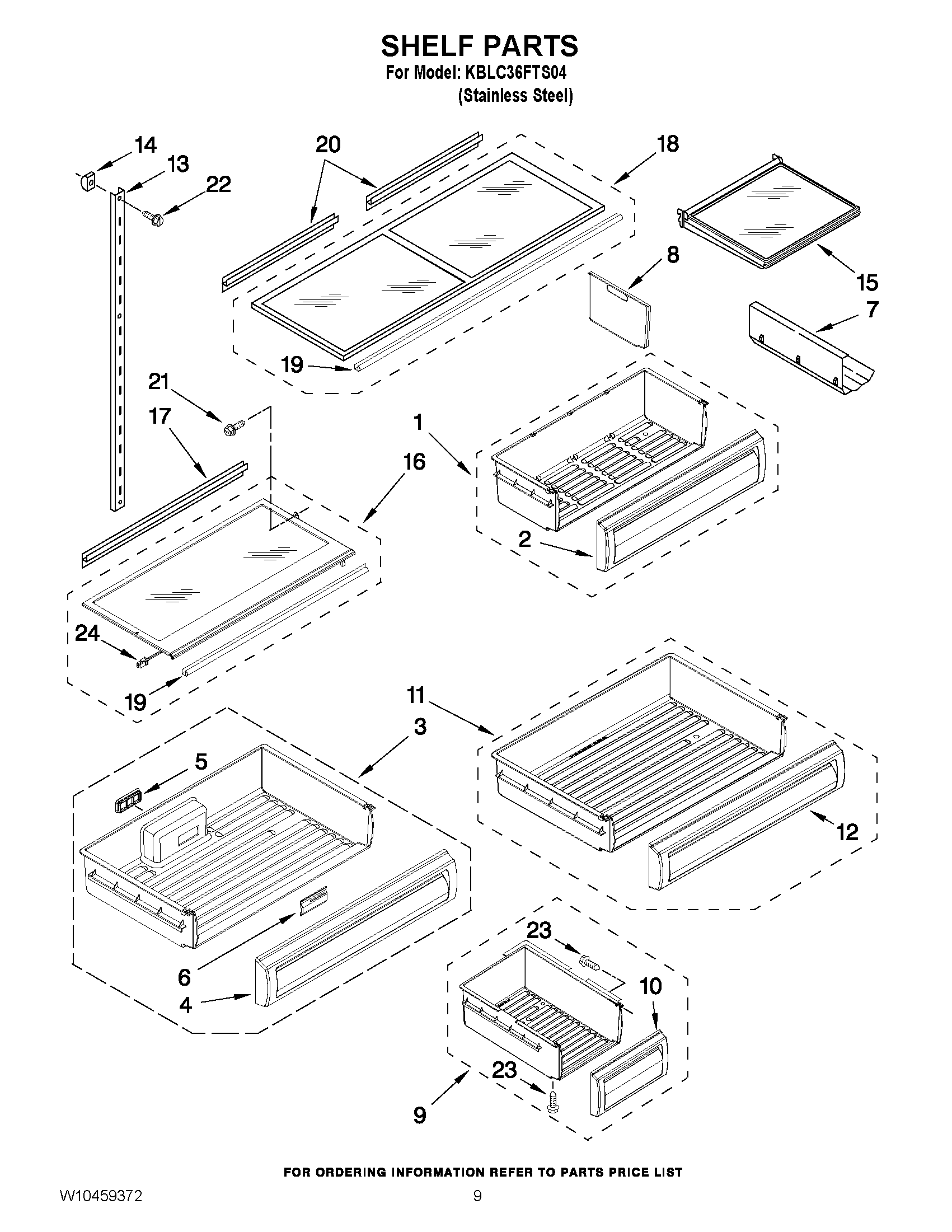

KBLC36FTS04 06 – SHELF PARTS

Products

Position	Product
1	WP2256375 Whirlpool Refrigerator Crisper Pan
2	2256374 Whirlpool Front Pan
3	DELI PAN ASSEMBLY (INCLUDES ITEM 6)
4	2257548 Whirlpool Refrigerator Front Pan
5	2307810 Whirlpool Refrigerator Air Duct
6	2317939 Whirlpool Refrigerator Deflector
7	W10777924 Whirlpool Refrigerator Wine Rack
8	Divider, Crisper Pan
9	Ice Pan Assembly (Includes 10)
10	2306175 Whirlpool Refrigerator Front Pan
11	2327512 Whirlpool Freezer Pan
12	2268383 Whirlpool Front Panel
13	Ladder, Shelf (4)
14	520965 Whirlpool Refrigerator Support
15	Shelf (4)
16	Cover, Deli Bin
17	Gasket, Rear
18	WPW10183749 Whirlpool Glass Shelf
19	Gasket, Front (Deli Cover)
20	2309398 Whirlpool Pan Gasket
21	Screw 8-15 x 1/2 (White)
22	2006475 Whirlpool Refrigerator Screw
23	WP488787 Whirlpool Refrigerator Screw
24	Light Assy, (Deli)
