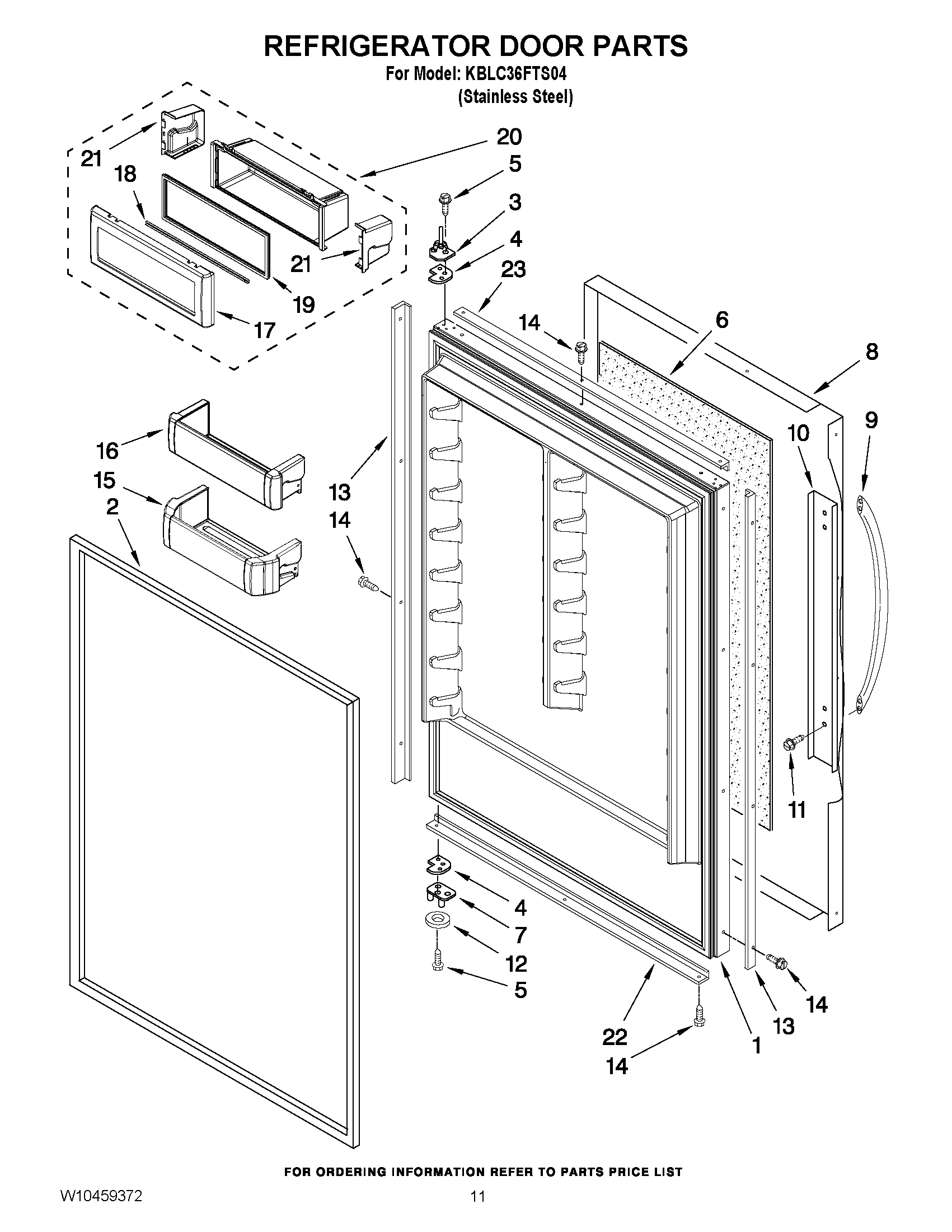

KBLC36FTS04 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Refrigerator (Includes Item 2)
2	2302709 Whirlpool Refrigerator Door Gasket
3	Hinge Assembly, Top
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	Filler, Foam
7	2316807 Whirlpool Refrigerator Door Hinge
8	Skin, Door
9	WP2316868 Whirlpool Refrigerator Handle
10	W10127710 Whirlpool Refrigerator Plate
11	WP308544 Whirlpool Screw
12	WP2006346 Whirlpool Refrigerator Washer
13	Spacer, Door Edge – Side (2)
14	WP8281250 Whirlpool Refrigerator Screw
15	W10323749 Whirlpool Refrigerator Cantilever Bin
16	W11590561 Whirlpool Refrigerator Cantilever Bin
17	Door, Utility Bin
18	Rail, Lid
19	Gasket, Utility Bin
20	W10323044 Whirlpool Refrigerator Cantilever Bin
21	WPW10323172 Whirlpool Refrigerator Retainer End Cap
21	WPW10323173 Whirlpool Refrigerator Retainer End Cap
22	SPACER, DOOR EDGE (BOTTOM)
23	SPACER, DOOR EDGE (TOP)
