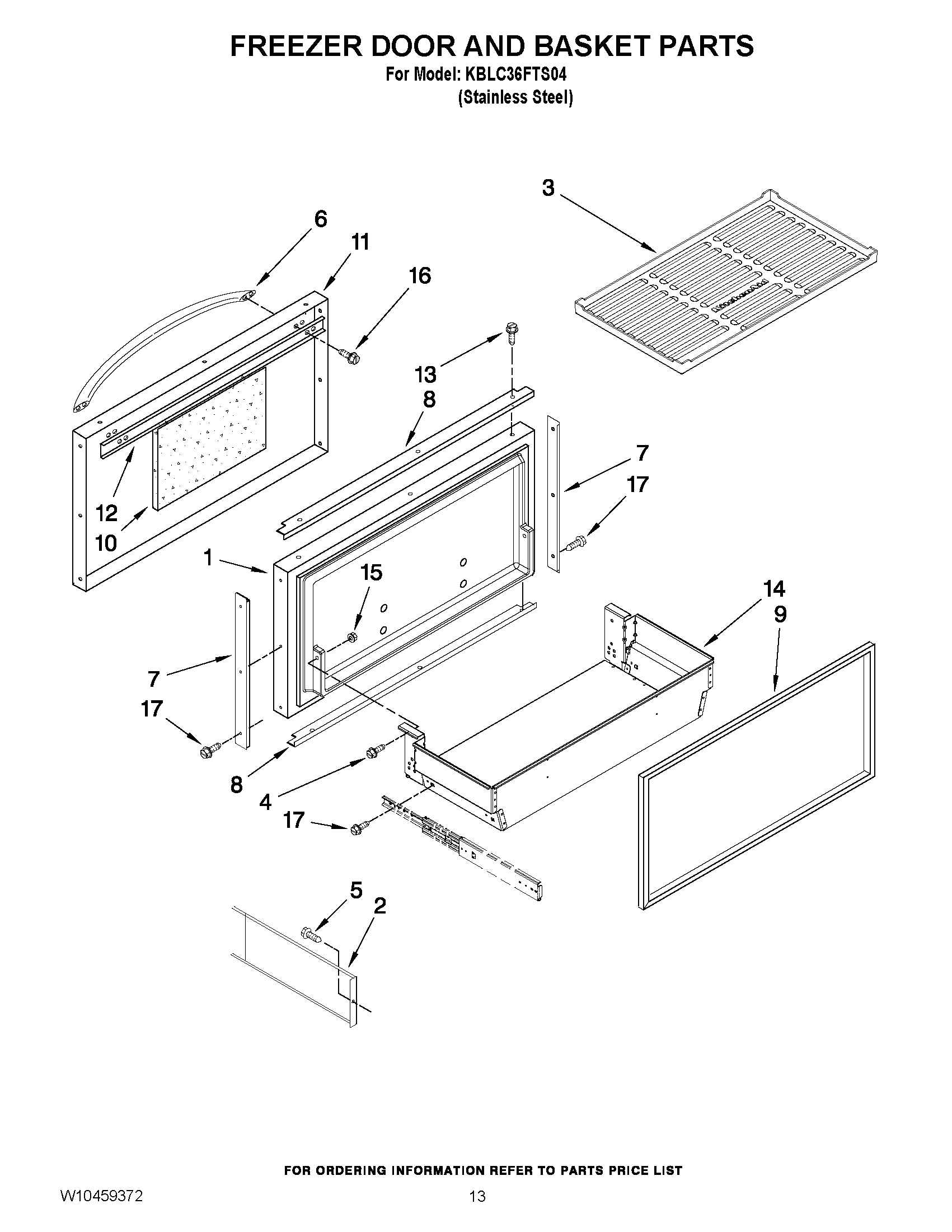

KBLC36FTS04 08 – FREEZER DOOR AND BASKET PARTS

Products

Position	Product
1	FREEZER DOOR PANEL (INCLUDES ITEM 9)
2	Divider, Basket (2)
3	Mat, Basket
4	W10135775 Whirlpool Refrigerator Screw
5	WP488234 Whirlpool Air Conditioner Screw
6	WP2316868 Whirlpool Refrigerator Handle
7	Spacer, Door Edge Top & Bottom
8	2300027 Whirlpool Spacer
9	W11624996 Whirlpool Refrigerator FIP Gasket
10	Filler, Foam
11	SKIN, DOOR
12	W10127710 Whirlpool Refrigerator Plate
13	WP8281250 Whirlpool Refrigerator Screw
14	W10258182 Whirlpool Refrigerator Freezer Basket
15	WP2207454 Whirlpool Refrigerator Nut
16	WP308544 Whirlpool Screw
17	W10109030 Whirlpool Refrigerator Screw
