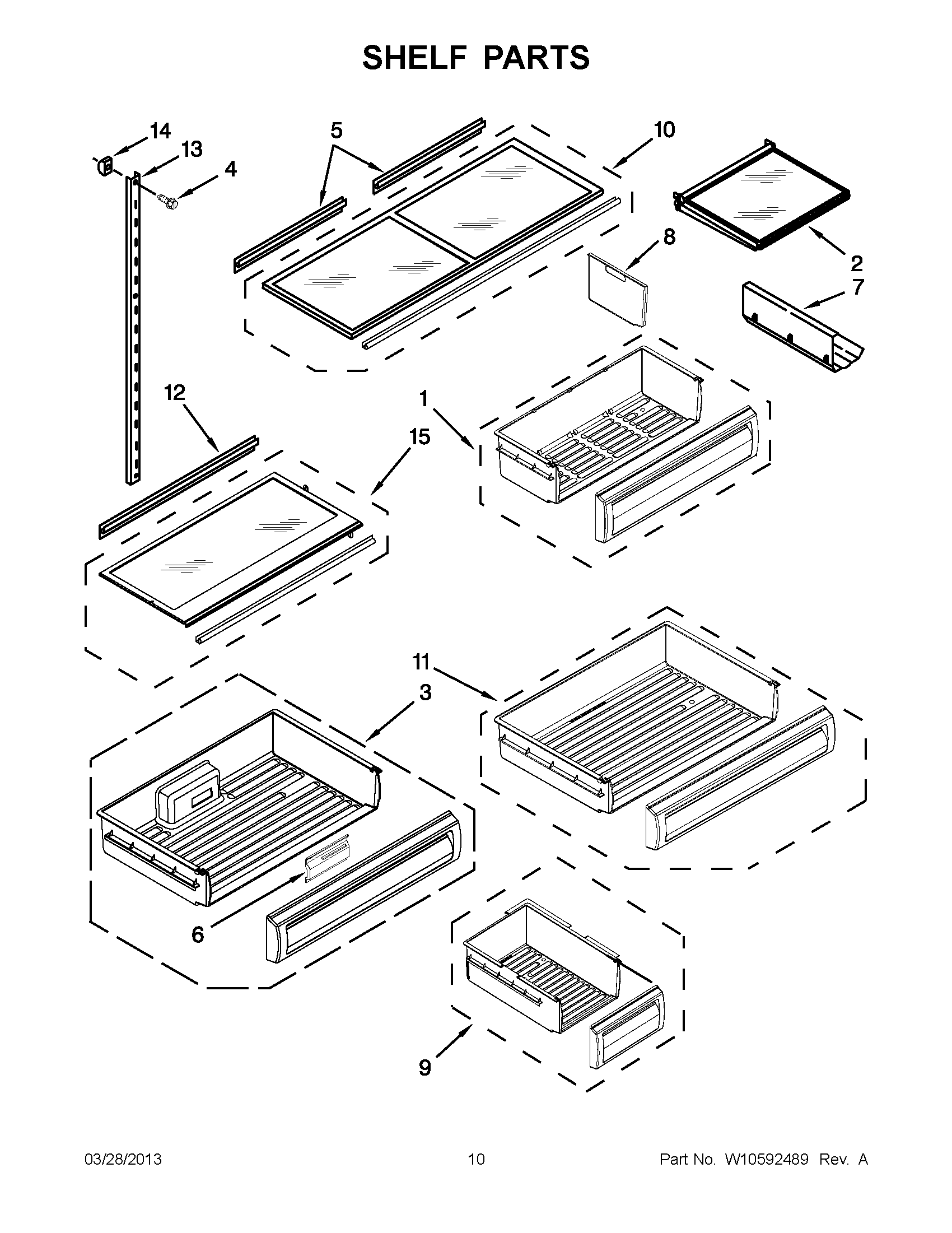

KBLC36FTS07 05 – SHELF PARTS

Products

Position	Product
1	WP2256375 Whirlpool Refrigerator Crisper Pan
2	Shelf (4)
3	DELI PAN ASSEMBLY (INCLUDES ITEM 6)
4	2006475 Whirlpool Refrigerator Screw
5	2309398 Whirlpool Pan Gasket
6	2317939 Whirlpool Refrigerator Deflector
7	W10777924 Whirlpool Refrigerator Wine Rack
8	Divider, Crisper Pan
9	Ice Pan Assembly (Includes 10)
10	WPW10183749 Whirlpool Glass Shelf
11	2327512 Whirlpool Freezer Pan
12	Gasket, Rear
13	Ladder, Shelf (4)
14	520965 Whirlpool Refrigerator Support
15	Cover, Deli Bin
