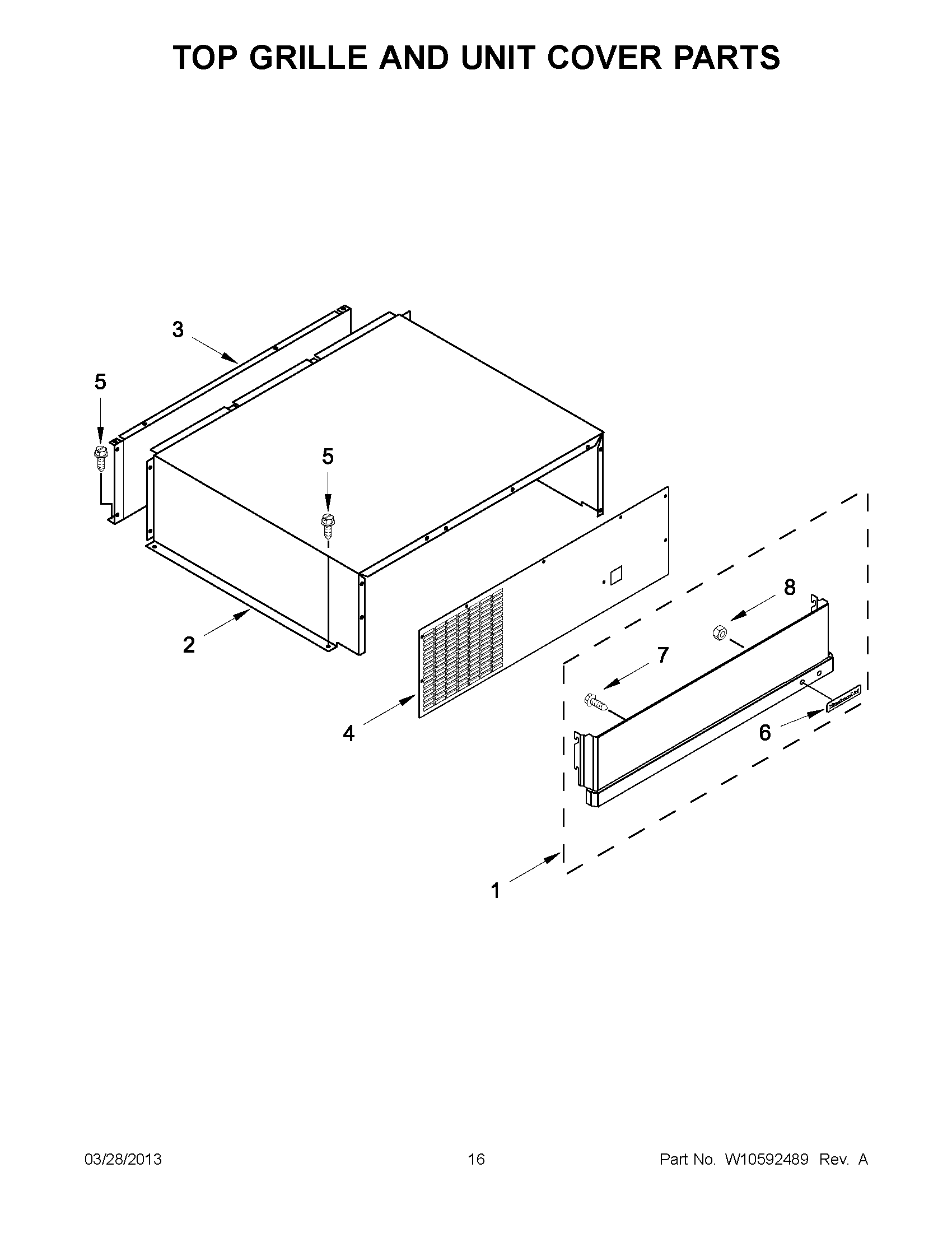

KBLC36FTS07 08 – TOP GRILLE AND UNIT COVER PARTS

Written by

Products

Position	Product
1	TOP GRILLE ASSY (INCLUDES ITEMS 6, 7 & 8)
1	W10321109 Whirlpool Refrigerator Upper Grill
2	COVER, UNIT
3	2256466 Whirlpool Refrigerator Unit Cover
4	FRONT, UNIT COVER
5	WP489069 Whirlpool Compactor Screw
6	NAMEPLATE
7	WP489399 Whirlpool Refrigerator Screw
8	WP2004333 Whirlpool Refrigerator Nut
