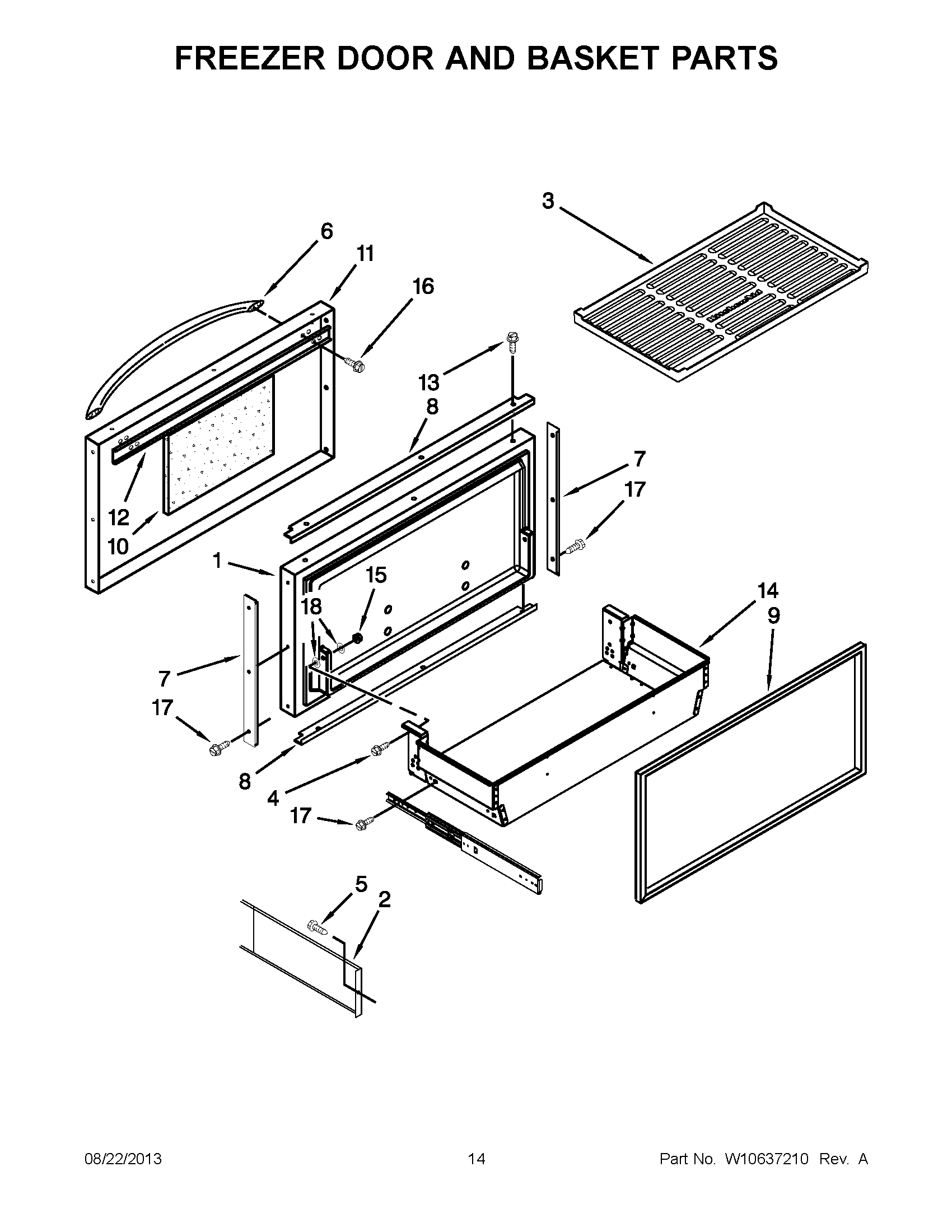

KBLC36FTS08 08 – FREEZER DOOR AND BASKET PARTS

KBLC36FTS08 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBLC36FTS08 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1FREEZER DOOR PANEL (INCLUDES ITEM 9)
2Divider, Basket (2)
3Mat, Basket
4W10135775 Whirlpool Refrigerator Screw
5WP488234 Whirlpool Air Conditioner Screw
6WP2316868 Whirlpool Refrigerator Handle
7Spacer, Door Edge Top & Bottom
82300027 Whirlpool Spacer
9W11624996 Whirlpool Refrigerator FIP Gasket
10Filler, Foam
11W10643704 Whirlpool Door Skin
12W10127710 Whirlpool Refrigerator Plate
13WP8281250 Whirlpool Refrigerator Screw
14W10258182 Whirlpool Refrigerator Freezer Basket
15WP2207454 Whirlpool Refrigerator Nut
16WP308544 Whirlpool Screw
17W10109030 Whirlpool Refrigerator Screw
18WASHER
