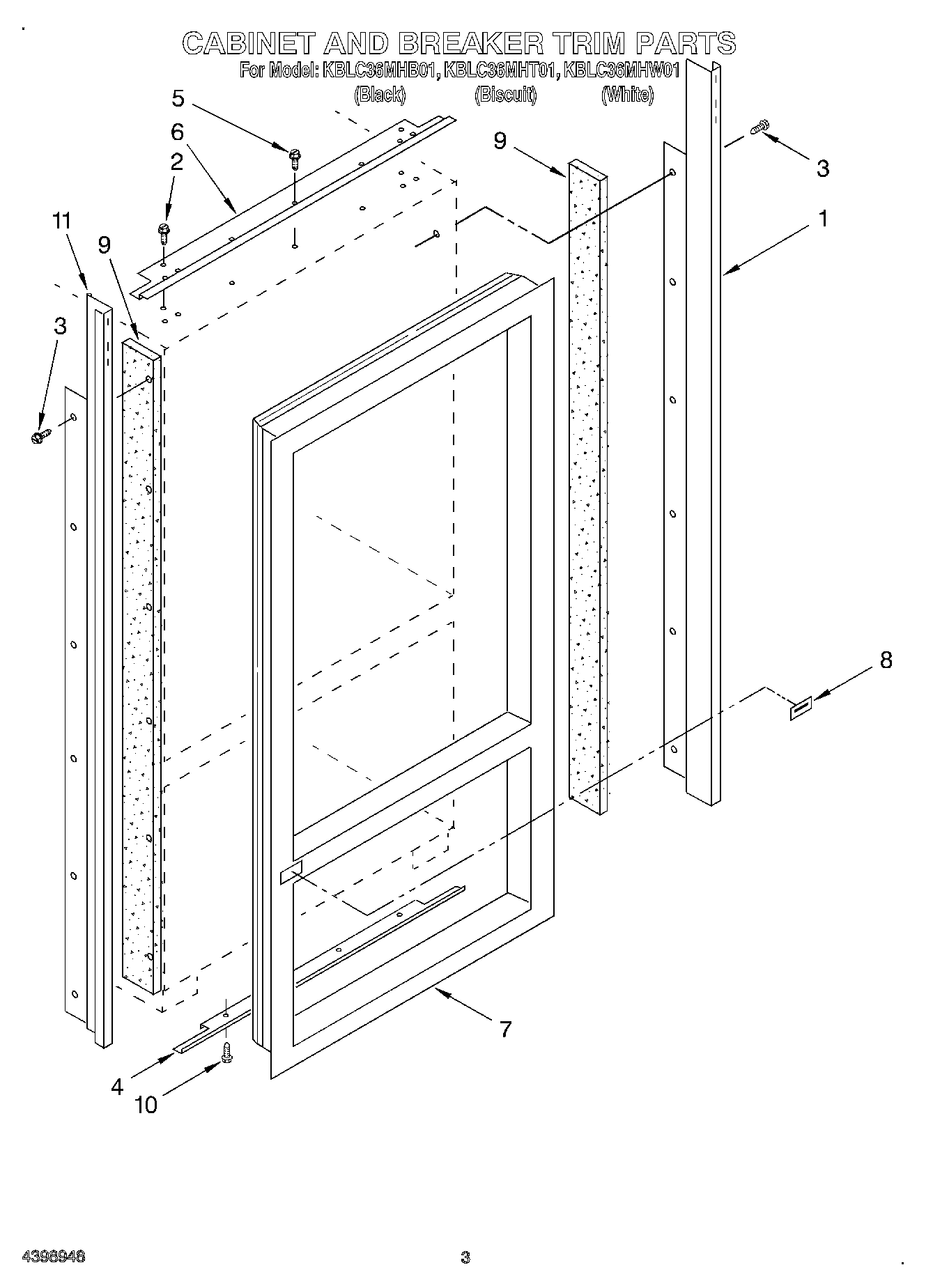

KBLC36MHB01 02 – CABINET AND BREAKER TRIM

Products

PositionProduct
1Cabinet, Trim Right Side (White)
1Cabinet, Trim Right Side (Biscuit)
1Cabinet, Trim Right Side (Black)
2Screw
3WP1163283 Whirlpool Air Conditioner Screw
3Repair, Screw
4Cabinet, Trim (Bottom)
5W11624204 Whirlpool Screw
6Cabinet, Trim Top
7Breaker Trim
8Cover, Hinge
9Seal, Side Trim
10WP489464 Whirlpool Refrigerator Screw
11Cabinet, Trim Left Side (Black)
11Cabinet, Trim Left Side (Biscuit)
11Cabinet, Trim Left Side (White)
