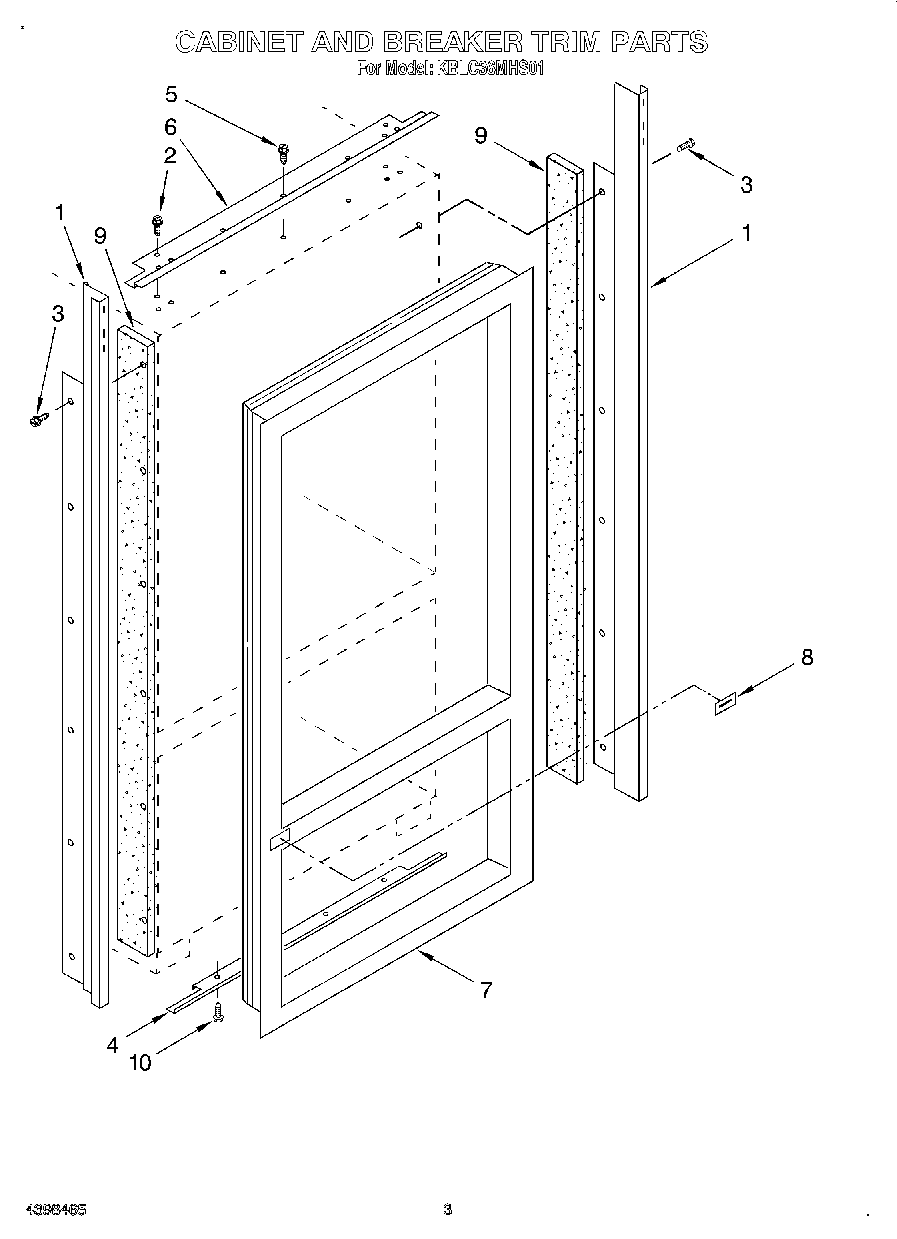

KBLC36MHS01 02 – CABINET AND BREAKER TRIM

KBLC36MHS01 02 – CABINET AND BREAKER TRIM

Written by

in

KBLC36MHS01 02 – CABINET AND BREAKER TRIM

Products

PositionProduct
1Cabinet, Trim Left Side
1Cabinet, Trim Right Side
2Screw
3WP1163283 Whirlpool Air Conditioner Screw
3Repair, Screw
4Cabinet, Trim (Bottom)
5W11624204 Whirlpool Screw
6Cabinet, Trim Top
7Breaker Trim
8Cover, Hinge
9Seal, Side Trim
10WP489464 Whirlpool Refrigerator Screw
