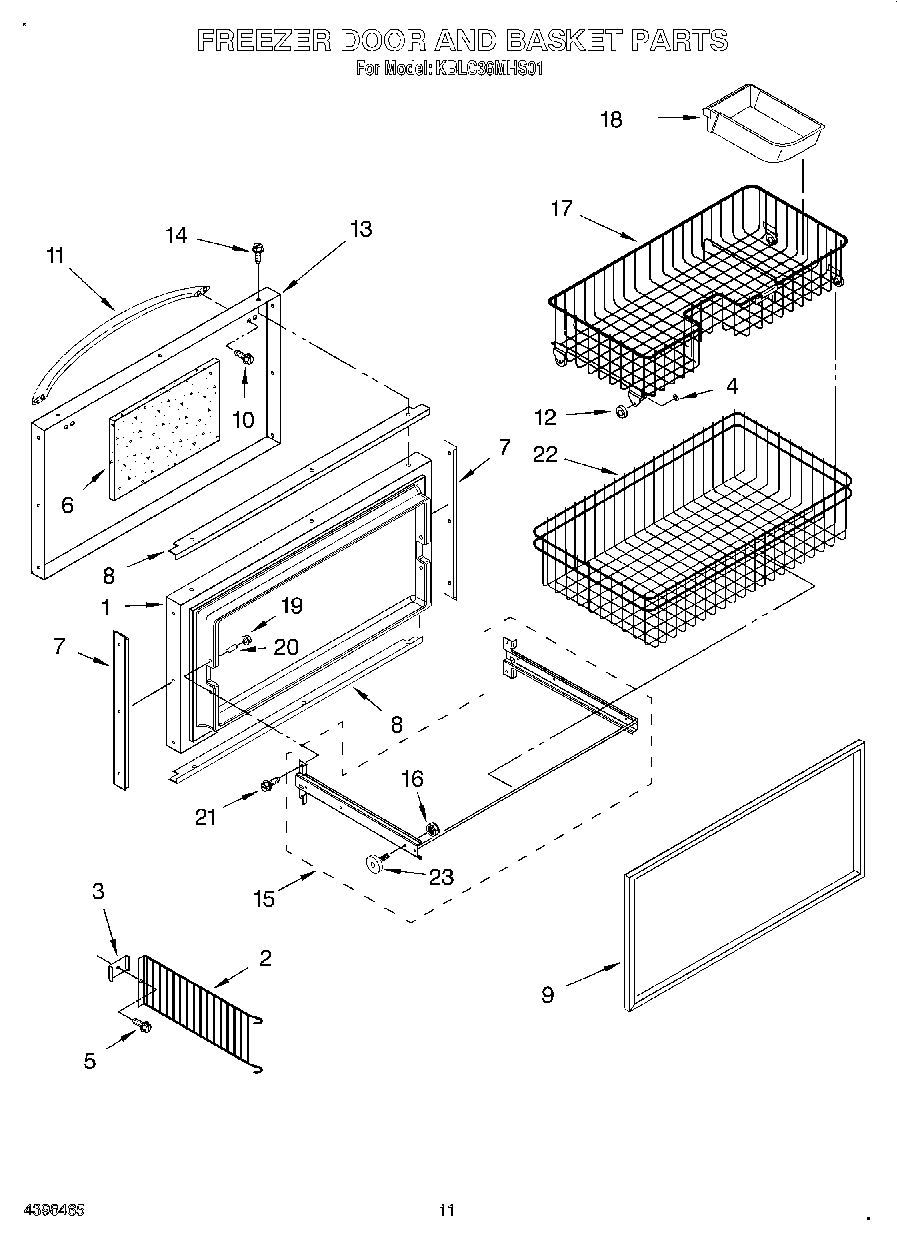

KBLC36MHS01 07 – FREEZER DOOR AND BASKET

KBLC36MHS01 07 – FREEZER DOOR AND BASKET

Written by

in

KBLC36MHS01 07 – FREEZER DOOR AND BASKET

Products

PositionProduct
1Freezer Door Panel (Includes Item 9)
2Divider, Basket
3Clamp, Divider
5WPW10141625 Whirlpool Refrigerator Screw Assembly
6Foam, Filler
7Spacer, Door Edge Side
8Spacer, Door Edge Top & Bottom
9Door Gasket, Magnetic
10Screw, 1/4 – 20 x .500
11Handle, Door (Stainless Steel)
12W11214482 Whirlpool Refrigerator Roller
13Skin, Door (Stainless Steel)
14WP488729 Whirlpool Refrigerator Door Screw
15Bracket, Assembly Freezer Basket
162207415 Whirlpool Refrigerator Nut
17Basket, Upper
18Pan, Ice Cube
19WP2207454 Whirlpool Refrigerator Nut
20Bushing
21Screw
22Basket, Freezer Lower
23Roller
