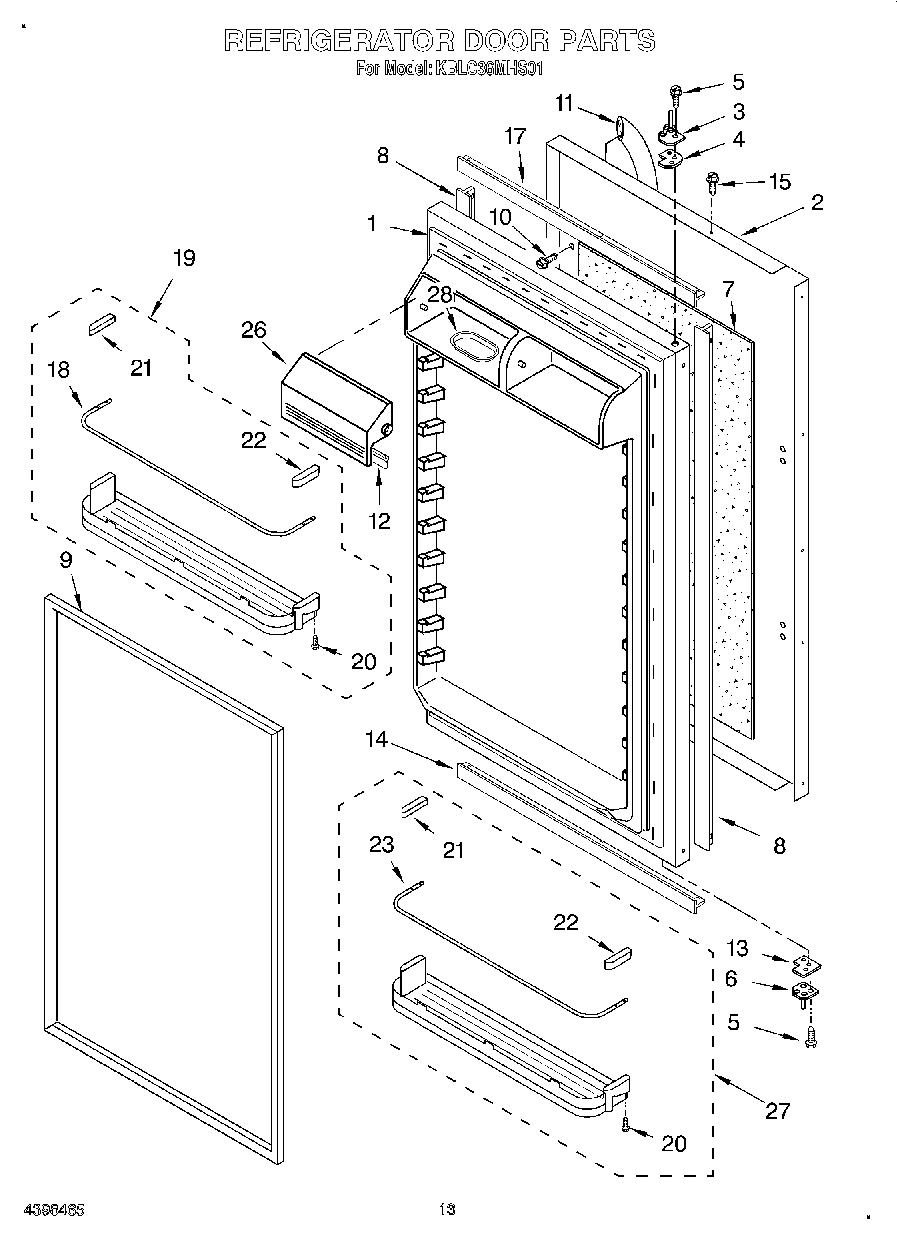

KBLC36MHS01 08 – REFRIGERATOR DOORadmin2025-04-26T11:40:39+00:00KBLC36MHS01 08 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Item 9) |
| 2 | Skin, Door (Stainless Steel) |
| 3 | Hinge Assembly, Top |
| 4 | Spacer-Hinge, Top |
| 5 | W11474472 Whirlpool Screw |
| 6 | Hinge Assembly, Bottom |
| 7 | Filler, Foam |
| 8 | Spacer, Door Edge Side |
| 9 | Door Gasket, Magnetic |
| 10 | Screw, 1/4 - 20 x .500 |
| 11 | Handle, Door (Stainless Steel) |
| 12 | Gasket (2) |
| 13 | Spacer-Hinge, Bottom |
| 14 | Spacer, Door Edge Bottom |
| 15 | WP488729 Whirlpool Refrigerator Door Screw |
| 17 | Spacer, Door Edge Top |
| 18 | Tube, Door Shelf |
| 19 | Shelf, Door (2) |
| 20 | WP681249 Whirlpool Screw Assembly |
| 21 | End Cap, Left |
| 22 | End Cap, Right |
| 23 | Tube, Door Shelf (Gallon) |
| 26 | Door, Utility Bin (2) ( |
| 27 | Door Shelf, Gallon |
| 28 | Butter Tray |
