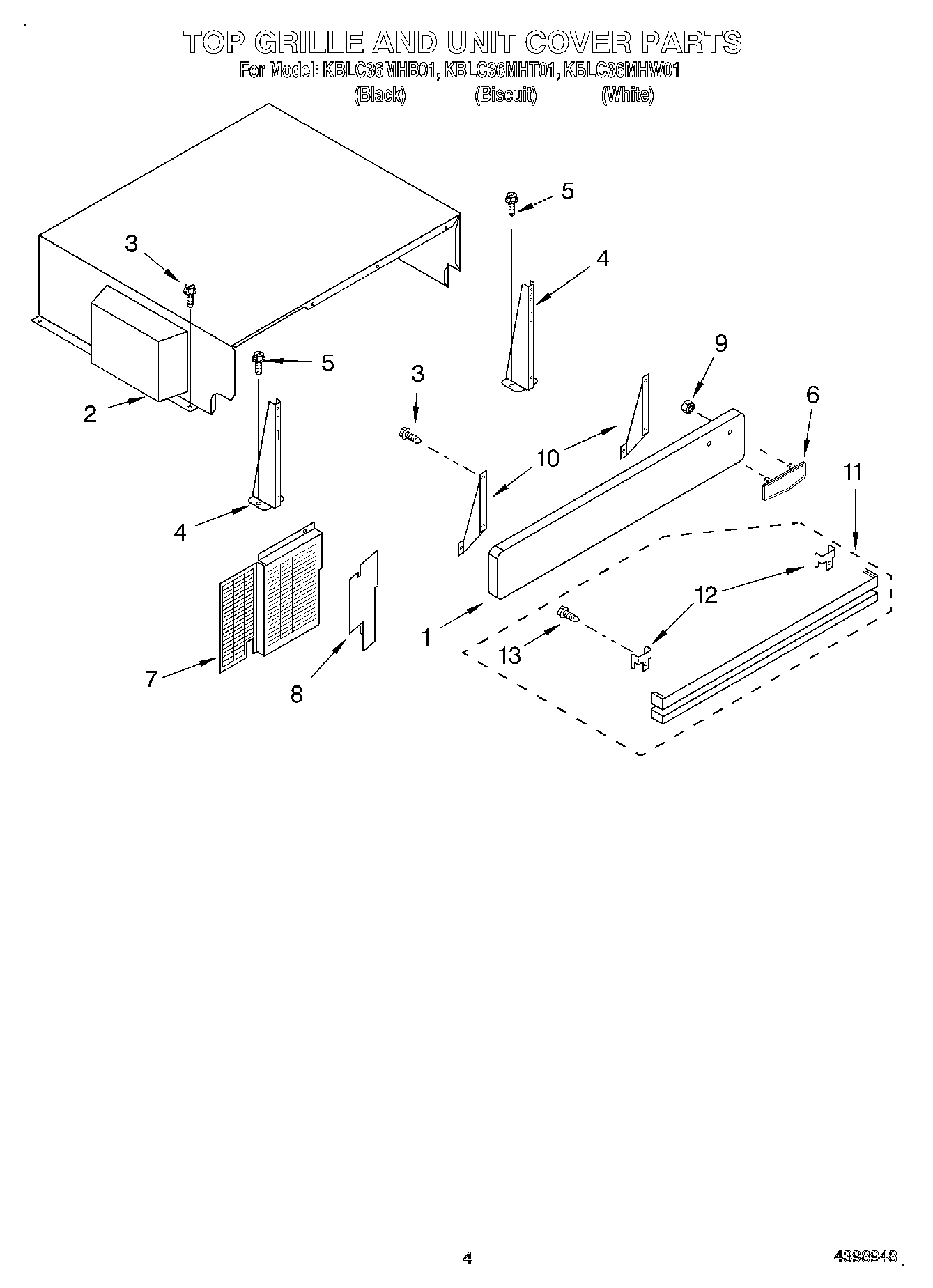

KBLC36MHW01 03 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (White)
1Top Grille Assembly (Biscuit)
1Top Grille Assembly (Black)
2Cover, Unit
3SCREW
4Grille, Bracket
5WP8204624 Whirlpool Bolt
6Nameplate (Black)
6Nameplate (Biscuit)
6Nameplate (White)
7Guard, Compressor Wiring
8Baffle-Air, Condenser
9WP2004333 Whirlpool Refrigerator Nut
10Bracket, Trim Panel
11Louver, Vent (Biscuit)
11Louver, Vent (Black)
11Louver, Vent (White)
12Louver, Bracket
13WPW10141625 Whirlpool Refrigerator Screw Assembly
