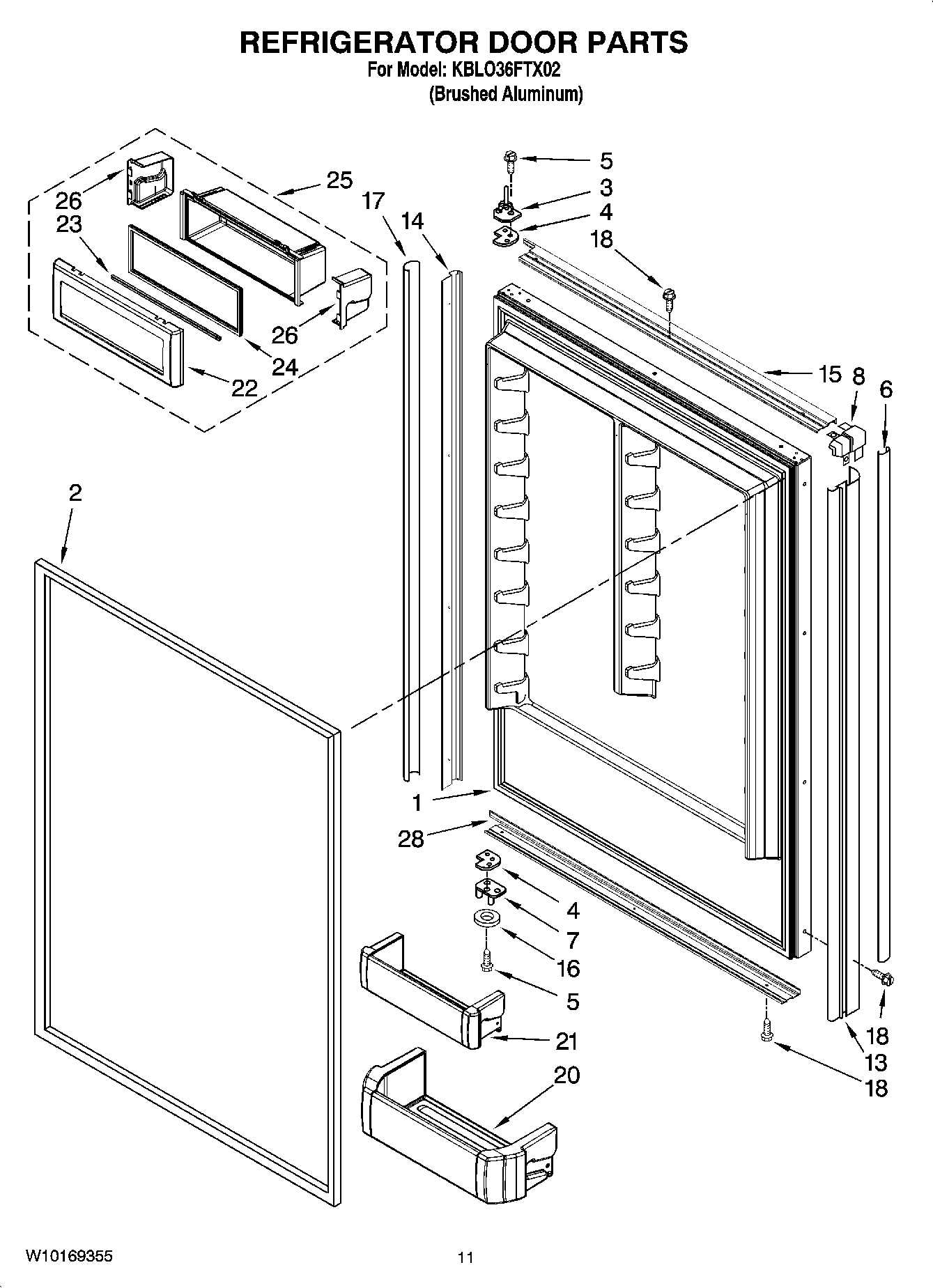

KBLO36FTX02 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Refrigerator (Includes Item 2)
2	2302709 Whirlpool Refrigerator Door Gasket
3	2256384 Whirlpool Refrigerator Door Hinge
4	W11673500 Whirlpool Door Hinge
5	WP8533980 Whirlpool Refrigerator Screw
6	2209084S Whirlpool Refrigerator Trim Cover
7	2256281 Whirlpool Refrigerator Door Hinge
8	2207457 Whirlpool Refrigerator Door Trim
13	2309475 Whirlpool Refrigerator Door Trim
14	TRIM, DOOR (HINGE SIDE)
15	2309473 Whirlpool Door Trim
16	WP2006346 Whirlpool Refrigerator Washer
17	Cover, Trim (Handle Side)
18	WP8281250 Whirlpool Refrigerator Screw
20	W10323749 Whirlpool Refrigerator Cantilever Bin
21	W11590561 Whirlpool Refrigerator Cantilever Bin
22	Door, Utility Bin
23	Rail, Lid
24	Gasket, Utility Bin
25	W10323044 Whirlpool Refrigerator Cantilever Bin
26	WPW10323172 Whirlpool Refrigerator Retainer End Cap
26	WPW10323173 Whirlpool Refrigerator Retainer End Cap
28	2309474 Whirlpool Door Trim
