KBLO36FTX02 08 – FREEZER DOOR AND BASKET PARTS

KBLO36FTX02 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

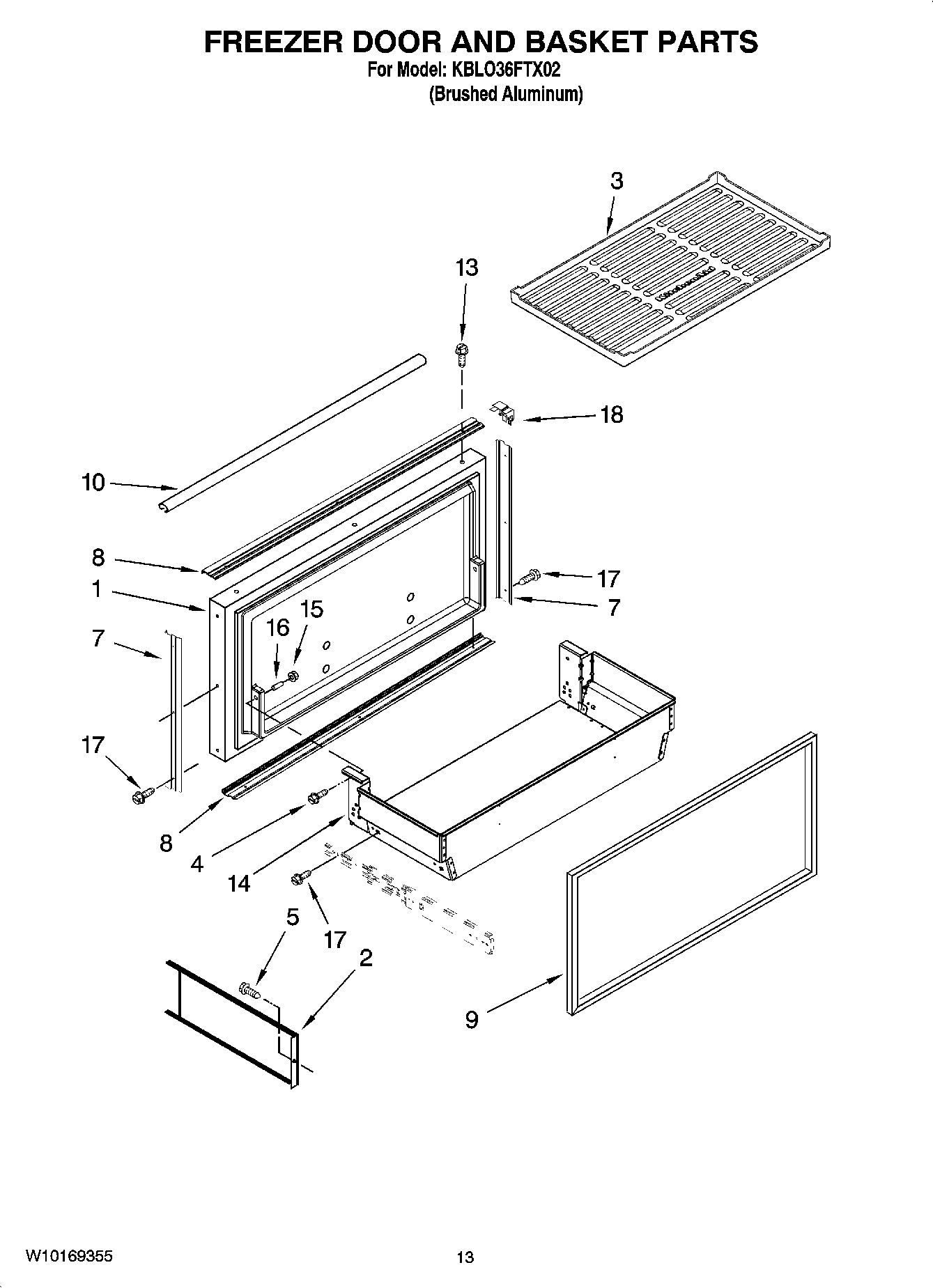

KBLO36FTX02 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Item 9)
2Divider, Basket (2)
3Mat, Basket
4W10135775 Whirlpool Refrigerator Screw
5WPW10141625 Whirlpool Refrigerator Screw Assembly
72309477 Whirlpool Door Trim
82309478 Whirlpool Door Trim
92302710 Whirlpool Refrigerator Door Gasket
102006329 Whirlpool Refrigerator Cover Trim
13WP8281250 Whirlpool Refrigerator Screw
14W10258182 Whirlpool Refrigerator Freezer Basket
15WP2207454 Whirlpool Refrigerator Nut
16WASHER
17W10109030 Whirlpool Refrigerator Screw
182207457 Whirlpool Refrigerator Door Trim
