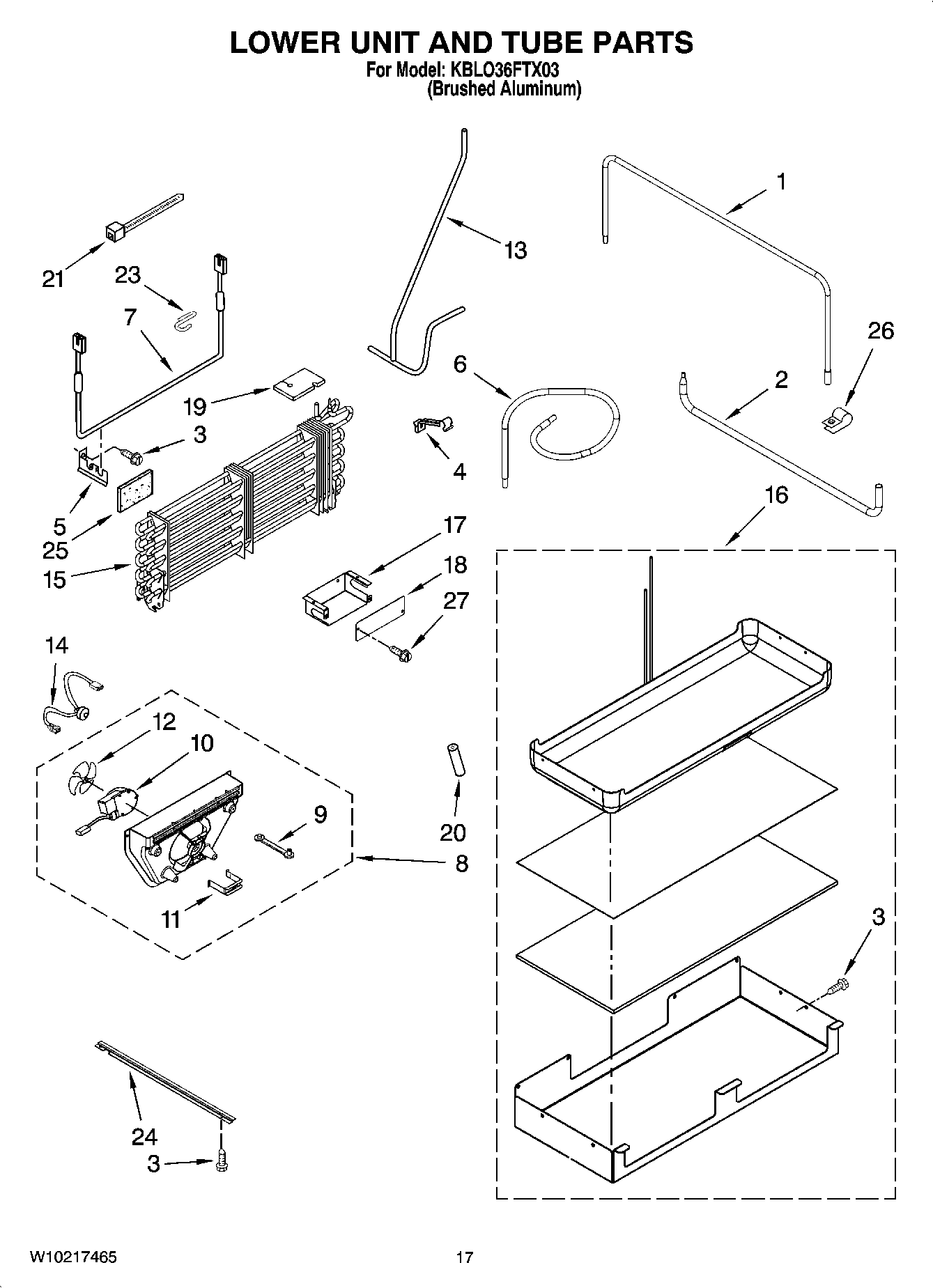

KBLO36FTX03 10 – LOWER UNIT AND TUBE PARTS

KBLO36FTX03 10 – LOWER UNIT AND TUBE PARTS

Written by

in

KBLO36FTX03 10 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1Tube, Transition (Condenser)
2W10388653 Whirlpool Refrigerator Tube
3W11624204 Whirlpool Screw
42307944 Whirlpool Clip
5Bracket, Mounting
6Tube, Suction
7WP2268393 Whirlpool Refrigerator Heater
8Scroll Assembly
9W11669856 Whirlpool Grommet
10Motor, Fan
118201663 Whirlpool Refrigerator Primary Fan Blade
12WP2169142 Whirlpool Fan Blade
132309073 Whirlpool Refrigerator Tube
14W10139165 Whirlpool Refrigerator Wire Harness
15WPW10195923 Whirlpool Refrigerator Evaporator Assembly
16WPW10281063 Whirlpool Refrigerator Heater Pan
17Cover, Wiring
18Cover, Wiring
19Block, Evaporator
202215648 Whirlpool Refrigerator Dampener
21WPW10339879 Whirlpool Wire Tie
23Clip, Heater
242320554 Whirlpool Bracket
25W11553819 Whirlpool Refrigerator Insulation
26Clamp, Tube
27WP489069 Whirlpool Compactor Screw
