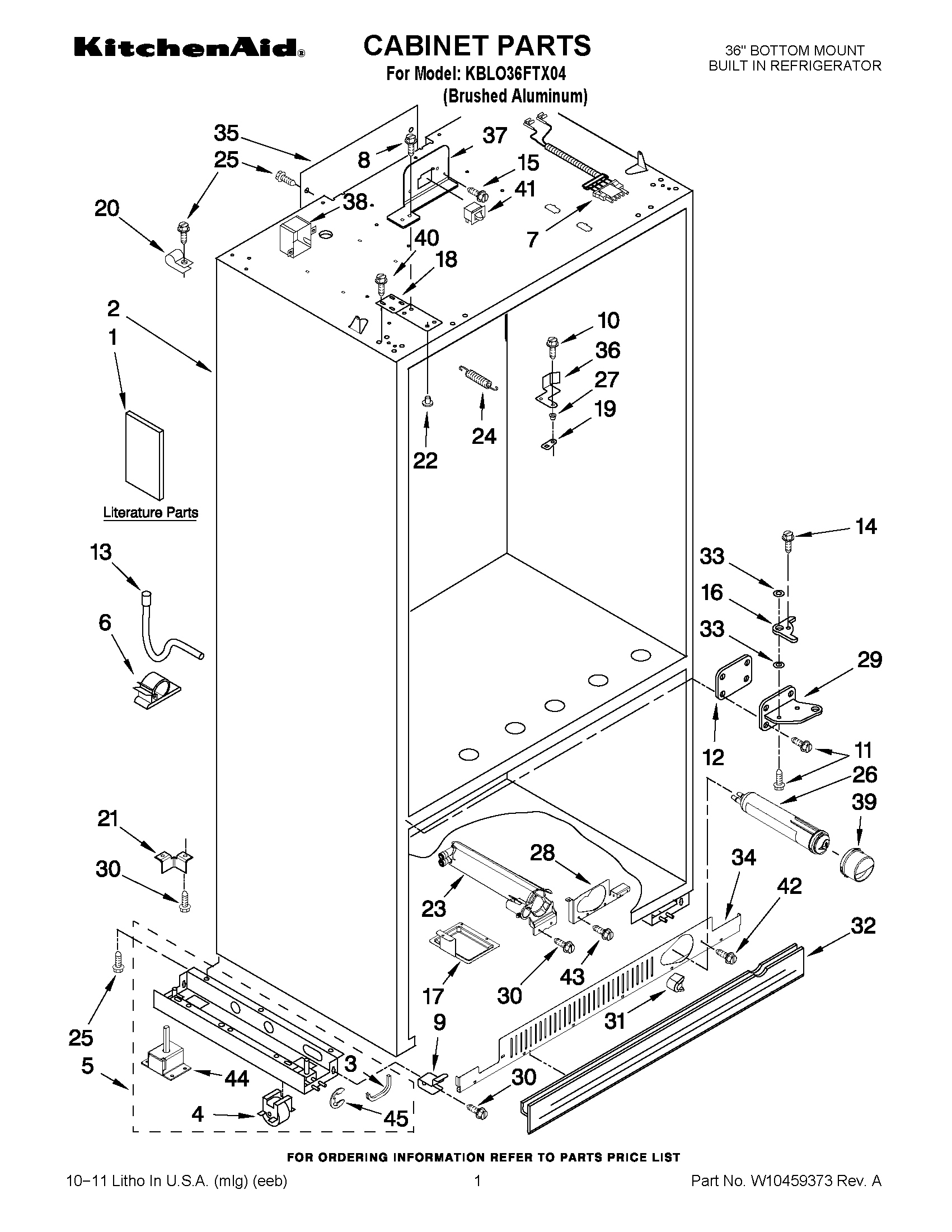

KBLO36FTX04 01 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	Modular Icemaker Service Sheet
1	INSTALLATION INSTRUCTIONS
1	Energy Guide
1	Service & Wiring Sheet
1	Main Control Service Sheet
2	CABINET (NOT A SERVICEABLE PART)
3	2307584 Whirlpool Refrigerator Grommet
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	Clamp
7	2187894 Whirlpool Harness Switch
8	WP8281164 Whirlpool Refrigerator Screw
9	W10839844 Whirlpool Refrigerator Bracket
10	SCREW
11	W11474472 Whirlpool Screw
12	2207470 Whirlpool Refrigerator Hinge Shim
13	2314064 Whirlpool Refrigerator Drain Tube
14	WP8533980 Whirlpool Refrigerator Screw
15	WP965173 Whirlpool Dishwasher Screw
16	W10188434 Whirlpool Refrigerator Hinge Gap
17	2318189 Whirlpool Refrigerator Drip Pan
18	2252291 Whirlpool Refrigerator Door Hinge
19	Cam-Closer, Door
20	CLAMP, TUBE
21	2006617 Whirlpool Refrigerator Bracket
22	Bushing
23	WPW10121140 Whirlpool Refrigerator Housing
24	WP2004517 Whirlpool Refrigerator Spring
25	W11624204 Whirlpool Screw
26	FILTER 3-SINGLE TEAL
27	WP2316859 Whirlpool Refrigerator Bushing
28	W10674648 Whirlpool Refrigerator Bracket
29	2252299 Whirlpool Refrigerator Bottom Hinge
30	WP489464 Whirlpool Refrigerator Screw
31	WP2260503B Whirlpool Refrigerator Button
32	WP2209024B Whirlpool Refrigerator Front Grille
33	WP2006346 Whirlpool Refrigerator Washer
34	WP2325187B Whirlpool Refrigerator Front Grille
35	W10426957 Whirlpool Duct Cover
36	W11416733 Whirlpool Refrigerator Extension
37	2221096 Whirlpool Refrigerator Bracket
38	2215938 Whirlpool Refrigerator Switch Cover
39	WP2260518B Whirlpool Water Filter Cap
40	W11189635 Whirlpool Refrigerator Screw
41	W11384469 Whirlpool Door Switch
43	WP8281163 Whirlpool Refrigerator Screw
44	2005032 Whirlpool Refrigerator Leveler
45	2006841 Whirlpool Ring
