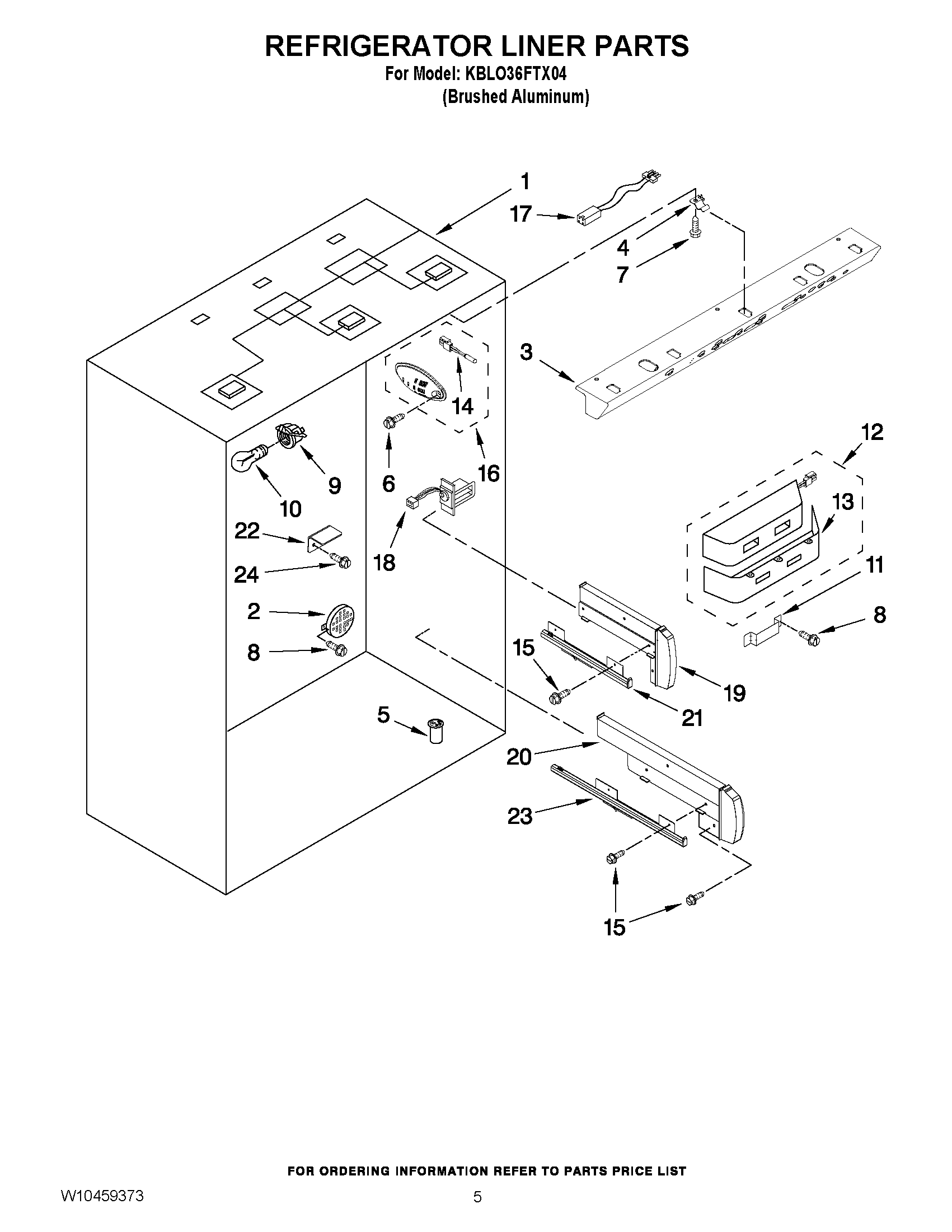

KBLO36FTX04 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
22317004 Whirlpool Refrigerator Air Cover
3W10468945 Whirlpool Refrigerator Control Box
4Clip, Control Box
5WP2210509 Whirlpool Refrigerator Tub Valve
6W11624204 Whirlpool Screw
7WP8281163 Whirlpool Refrigerator Screw
8WP488729 Whirlpool Refrigerator Door Screw
9WPW10191429 Whirlpool Refrigerator Socket
10WPA3073101 Whirlpool Light Bulb
11Clip, Diffuser Cover
12Diffuser Assembly
132320519 Whirlpool Refrigerator Cover
14WP2188820 Whirlpool Refrigerator Thermistor
15WP3400886 Whirlpool Refrigerator Screw
16WP2317844 Whirlpool Refrigerator Cover
172310164 Whirlpool Refrigerator Wire Harness
18WP2221296 Whirlpool Air Baffle
19Spacer, Crisper (Left)
19Spacer, Crisper (Right)
20Spacer, Deli (Left)
20Spacer, Deli (Right)
212302952 Whirlpool Refrigerator Slide
212302953 Whirlpool Refrigerator Slide
22Support, Crisper Cover
232302956 Whirlpool Refrigerator Slide
232302957 Whirlpool Refrigerator Slide
24WP8533928 Whirlpool Refrigerator Screw
