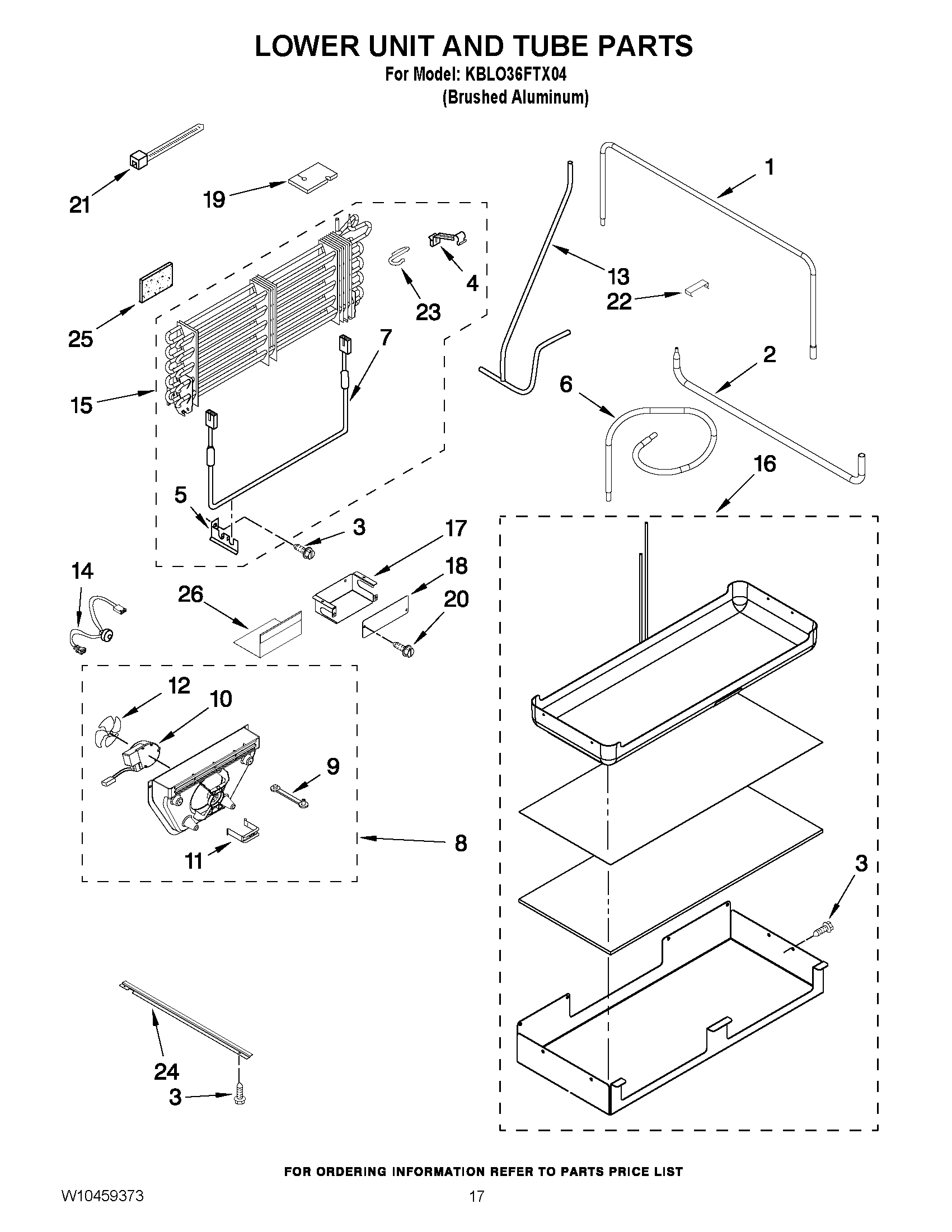

KBLO36FTX04 10 – LOWER UNIT AND TUBE PARTS

KBLO36FTX04 10 – LOWER UNIT AND TUBE PARTS

Written by

in

KBLO36FTX04 10 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1Tube, Transition (Condenser)
2W10388653 Whirlpool Refrigerator Tube
3W11624204 Whirlpool Screw
42307944 Whirlpool Clip
5Bracket, Mounting
6W10306442 Whirlpool Refrigerator Tube
7WP2268393 Whirlpool Refrigerator Heater
8Scroll Assembly
9W11669856 Whirlpool Grommet
10Motor, Fan
118201663 Whirlpool Refrigerator Primary Fan Blade
12WP2169142 Whirlpool Fan Blade
13W10404239 Whirlpool Refrigerator Tube
14W10139165 Whirlpool Refrigerator Wire Harness
15WPW10195923 Whirlpool Refrigerator Evaporator Assembly
16WPW10281063 Whirlpool Refrigerator Heater Pan
17WIRE COVER BOTTOM
18WIRE BOX COVER
19Block, Evaporator
20WP489069 Whirlpool Compactor Screw
21WPW10339879 Whirlpool Wire Tie
22W10169509 Whirlpool Refrigerator Clip
23Clip, Heater
242320554 Whirlpool Bracket
25W11553819 Whirlpool Refrigerator Insulation
26W10321050 Whirlpool Refrigerator Shield
