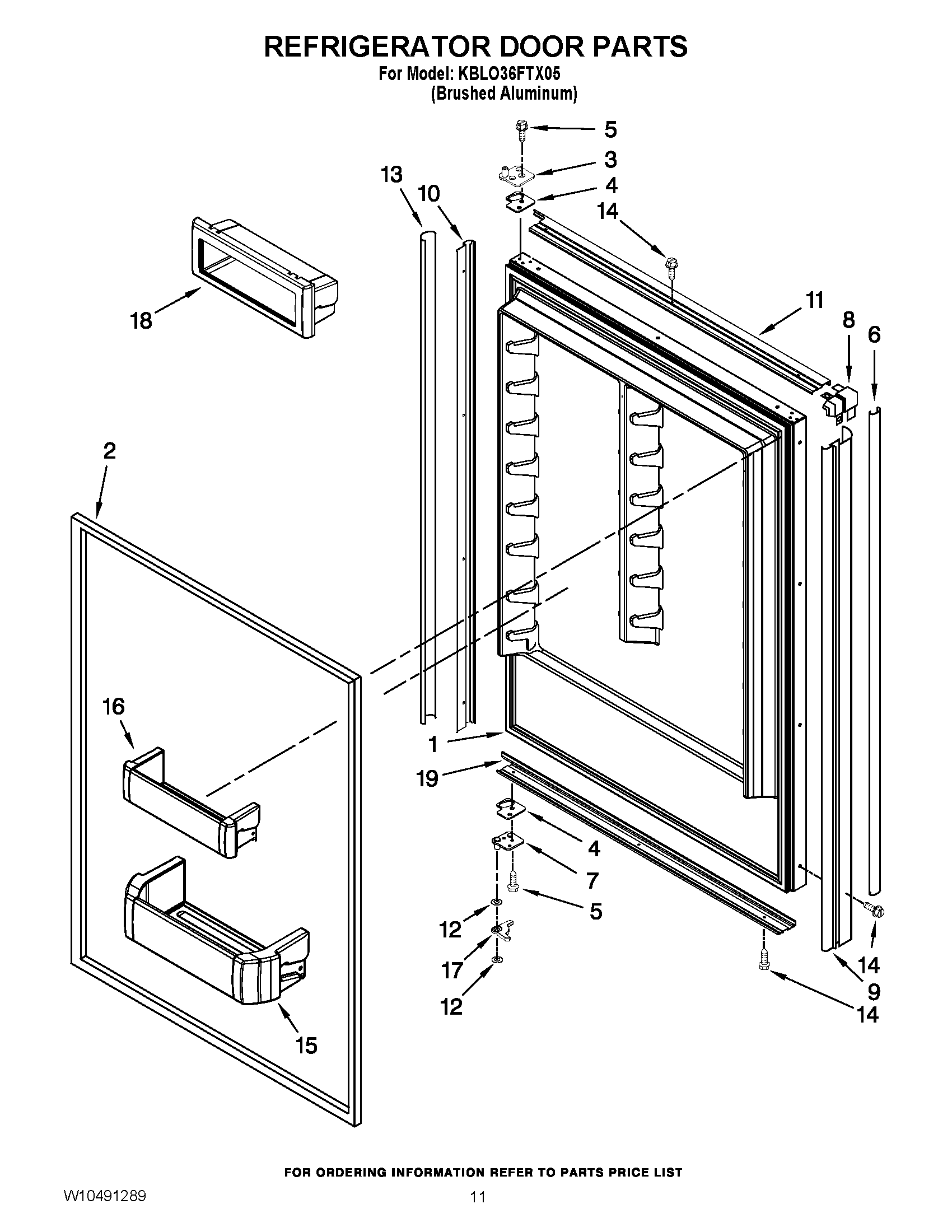

KBLO36FTX05 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Refrigerator (Includes Item 2)
22302709 Whirlpool Refrigerator Door Gasket
32256384 Whirlpool Refrigerator Door Hinge
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
6Cover, Trim (Handle Side)
72256281 Whirlpool Refrigerator Door Hinge
82207457 Whirlpool Refrigerator Door Trim
9TRIM, DOOR (HINGE SIDE)
102309475 Whirlpool Refrigerator Door Trim
112309473 Whirlpool Door Trim
12WP2006346 Whirlpool Refrigerator Washer
132209084S Whirlpool Refrigerator Trim Cover
14WP8281250 Whirlpool Refrigerator Screw
15W10323749 Whirlpool Refrigerator Cantilever Bin
16W11590561 Whirlpool Refrigerator Cantilever Bin
17W10188434 Whirlpool Refrigerator Hinge Gap
18W10323044 Whirlpool Refrigerator Cantilever Bin
192309474 Whirlpool Door Trim
