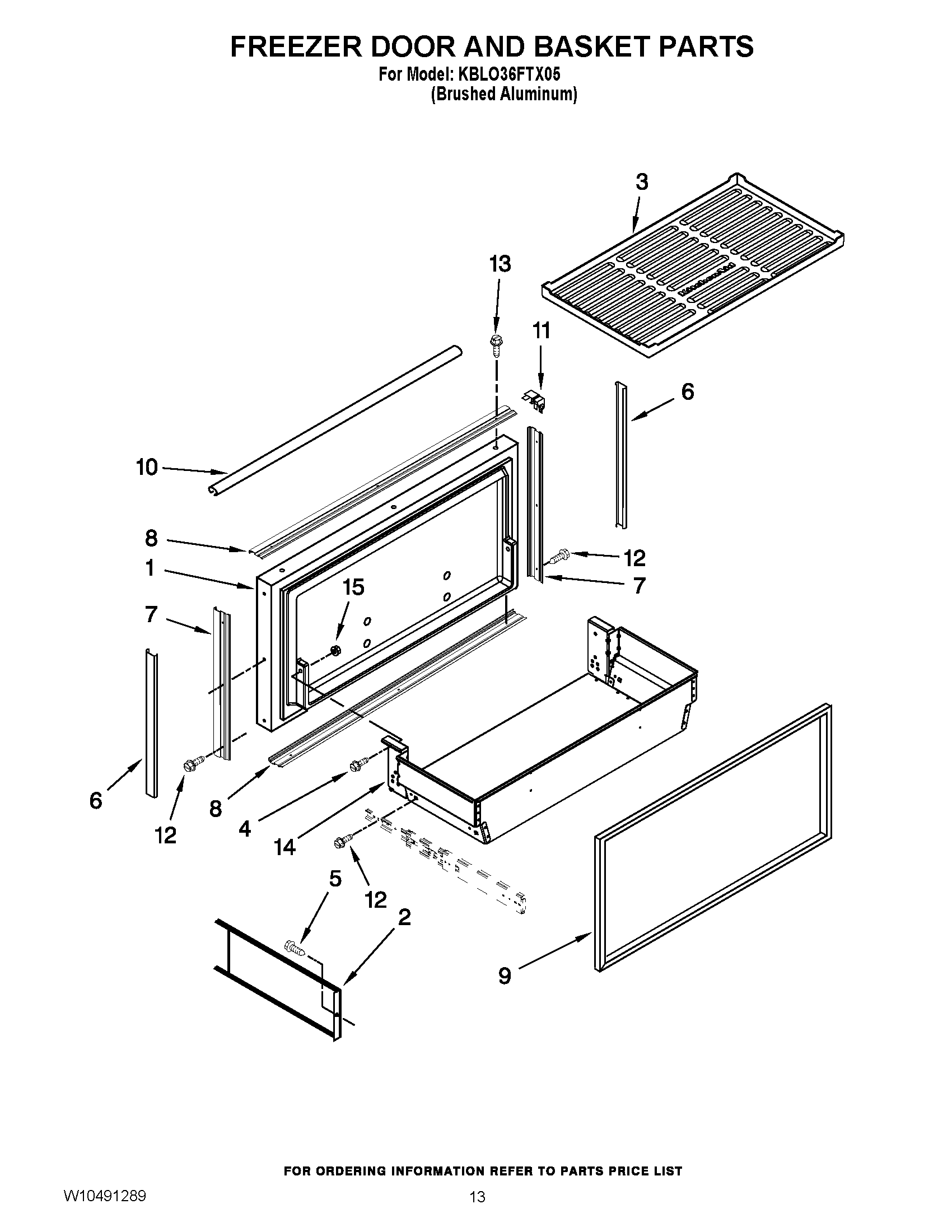

KBLO36FTX05 08 – FREEZER DOOR AND BASKET PARTS

KBLO36FTX05 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBLO36FTX05 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1FREEZER DOOR PANEL (INCLUDES ITEM 9)
2Divider, Basket (2)
3Mat, Basket
4W10135775 Whirlpool Refrigerator Screw
5WP488234 Whirlpool Air Conditioner Screw
62006324 Whirlpool Refrigerator Cover Trim
72309477 Whirlpool Door Trim
82309478 Whirlpool Door Trim
9W11624996 Whirlpool Refrigerator FIP Gasket
102006329 Whirlpool Refrigerator Cover Trim
112207457 Whirlpool Refrigerator Door Trim
12W10109030 Whirlpool Refrigerator Screw
13WP8281250 Whirlpool Refrigerator Screw
14W10258182 Whirlpool Refrigerator Freezer Basket
15WP2207454 Whirlpool Refrigerator Nut
