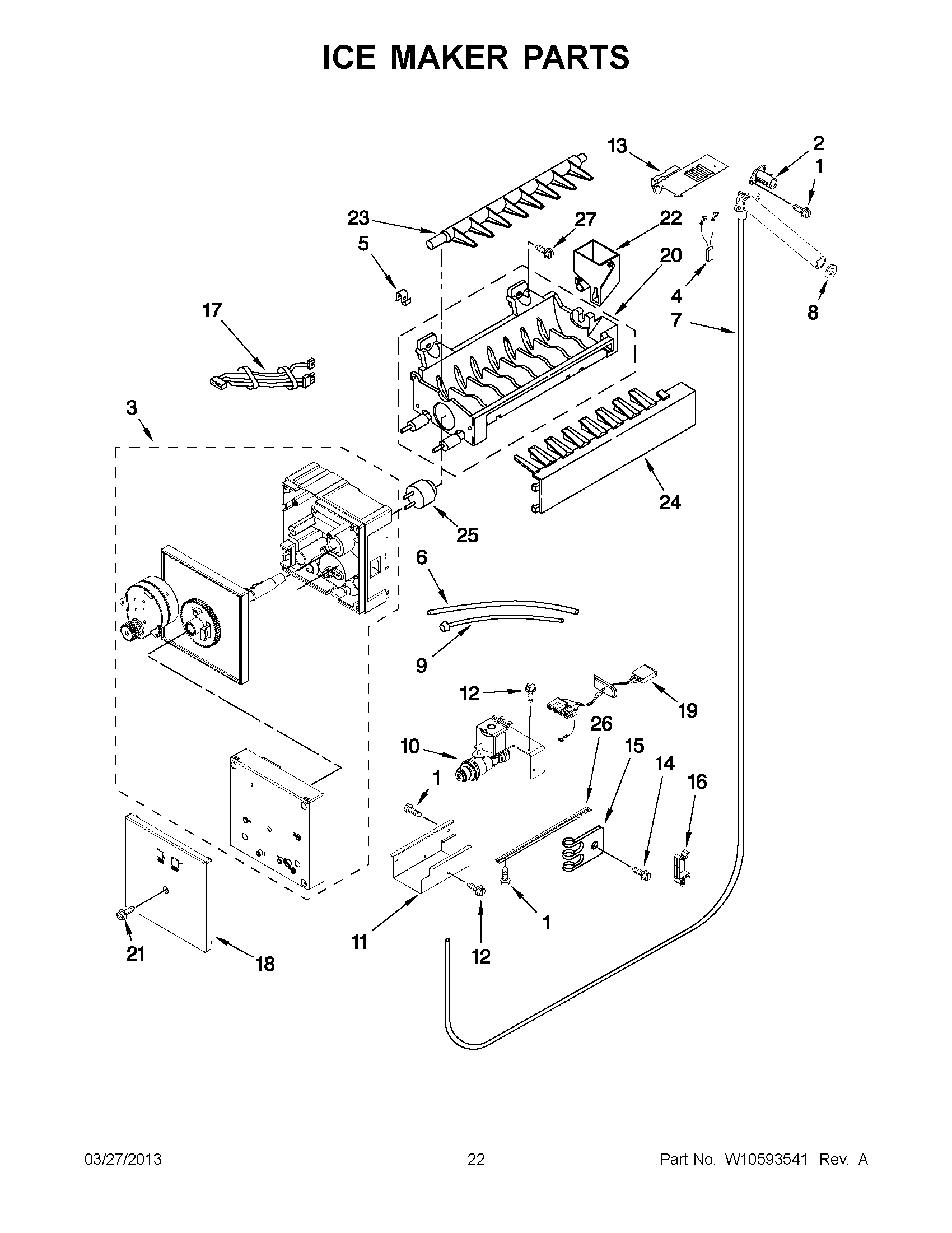

KBLO36FTX07 11 – ICE MAKER PARTS

KBLO36FTX07 11 – ICE MAKER PARTS

Written by

in

KBLO36FTX07 11 – ICE MAKER PARTS

Products

PositionProduct
1W11624204 Whirlpool Screw
2WP2221240 Whirlpool Refrigerator Heater
3WPW10281342 Whirlpool Refrigerator Motor Module
4Jumper, Heater Fill Tube
5WP628379 Whirlpool Refrigerator Clip
6W11565275 Whirlpool Refrigerator Water Tube
72317847 Whirlpool Refrigerator Water Tube
8WP1106508 Whirlpool Refrigerator Gasket
9W11533506 Whirlpool Refrigerator Water Tube
10VALVE-INLT REFR
11Shield, Valve
12WP489128 Whirlpool Refrigerator Screw
13WP2221231 Whirlpool Refrigerator Shield
14WP489464 Whirlpool Refrigerator Screw
15WP488366 Whirlpool Refrigerator Clamp
16CLIP, TUBE
17WIRE HARNESS, ICEMAKER
18W10377174 Whirlpool Refrigerator Front Cover
19W10279393 Whirlpool Refrigerator Wire Harness
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21WP3395530 Whirlpool Screw
22WPW10372171 Whirlpool Cup Fill
23WP627843 Whirlpool Refrigerator Ejector Arm
24WPW10122563 Whirlpool Refrigerator Stripper Arm
25WP627985 Whirlpool Icemaker Cycling Thermostat
26Support, Valve
27W10141596 Whirlpool Screw Assembly
100WPW10277450 Whirlpool Refrigerator Icemaker
