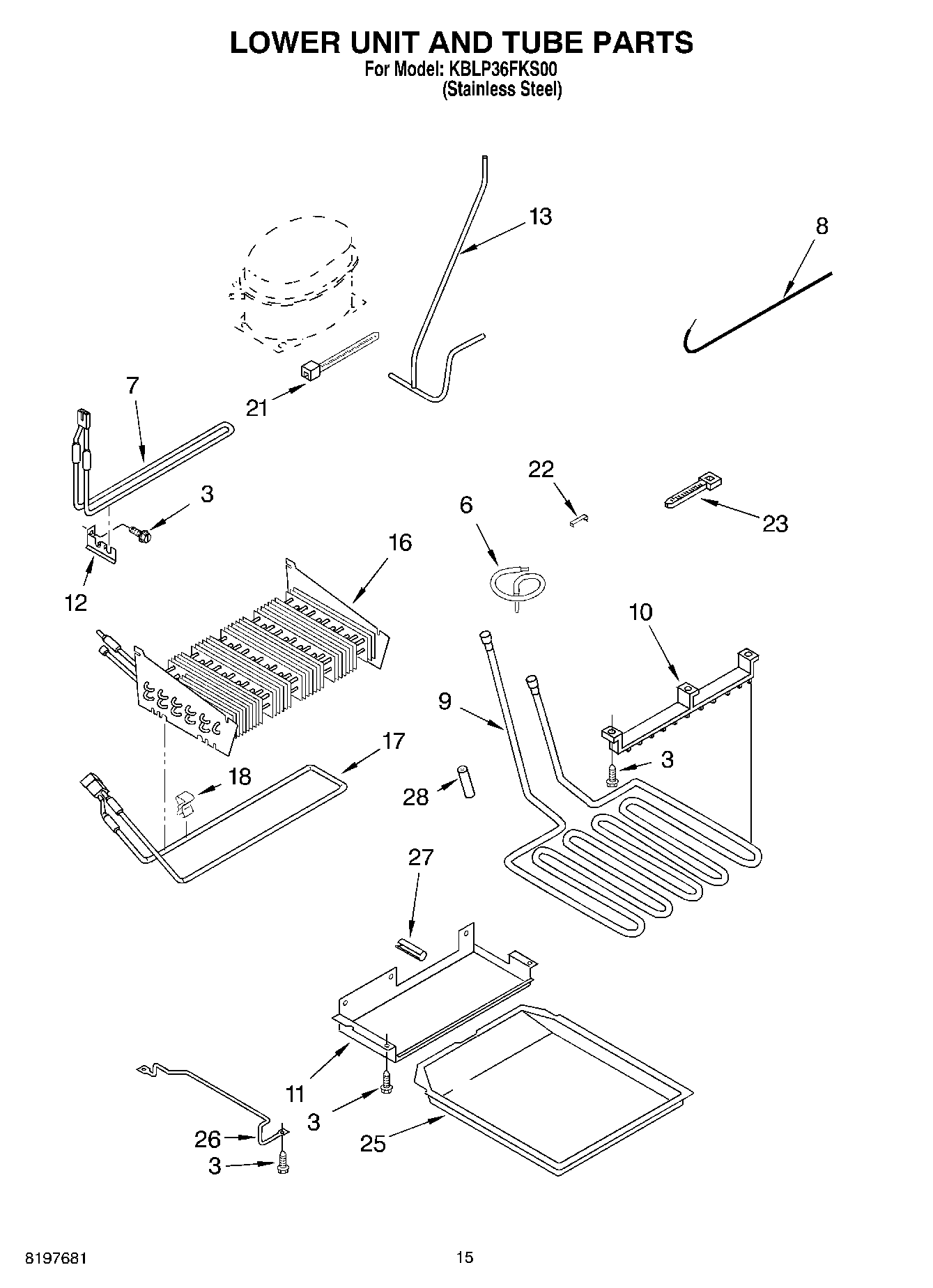

KBLP36FKS00 09 – LOWER UNIT AND TUBE

KBLP36FKS00 09 – LOWER UNIT AND TUBE

Written by

in

KBLP36FKS00 09 – LOWER UNIT AND TUBE

Products

PositionProduct
3W11624204 Whirlpool Screw
6Suction Tube
7Heater, Defrost (Rear)
8Tube, Connect (Drier)
9Heater, Drain Pan
10Hanger, Heater
11Shield, Drain Pan
12Support, Heater
13Tube, Discharge
16Evaporator
17Heater, Defrost (Front)
18Clamp, Heater (2)
21WPW10339879 Whirlpool Wire Tie
22W10169509 Whirlpool Refrigerator Clip
23Strap
25WP2001264 Whirlpool Refrigerator Drip Pan
26Bracket, Drain Pan (Left)
26Bracket, Drain Pan (Right)
27WP2158826 Whirlpool Refrigerator Dampener
282215648 Whirlpool Refrigerator Dampener
