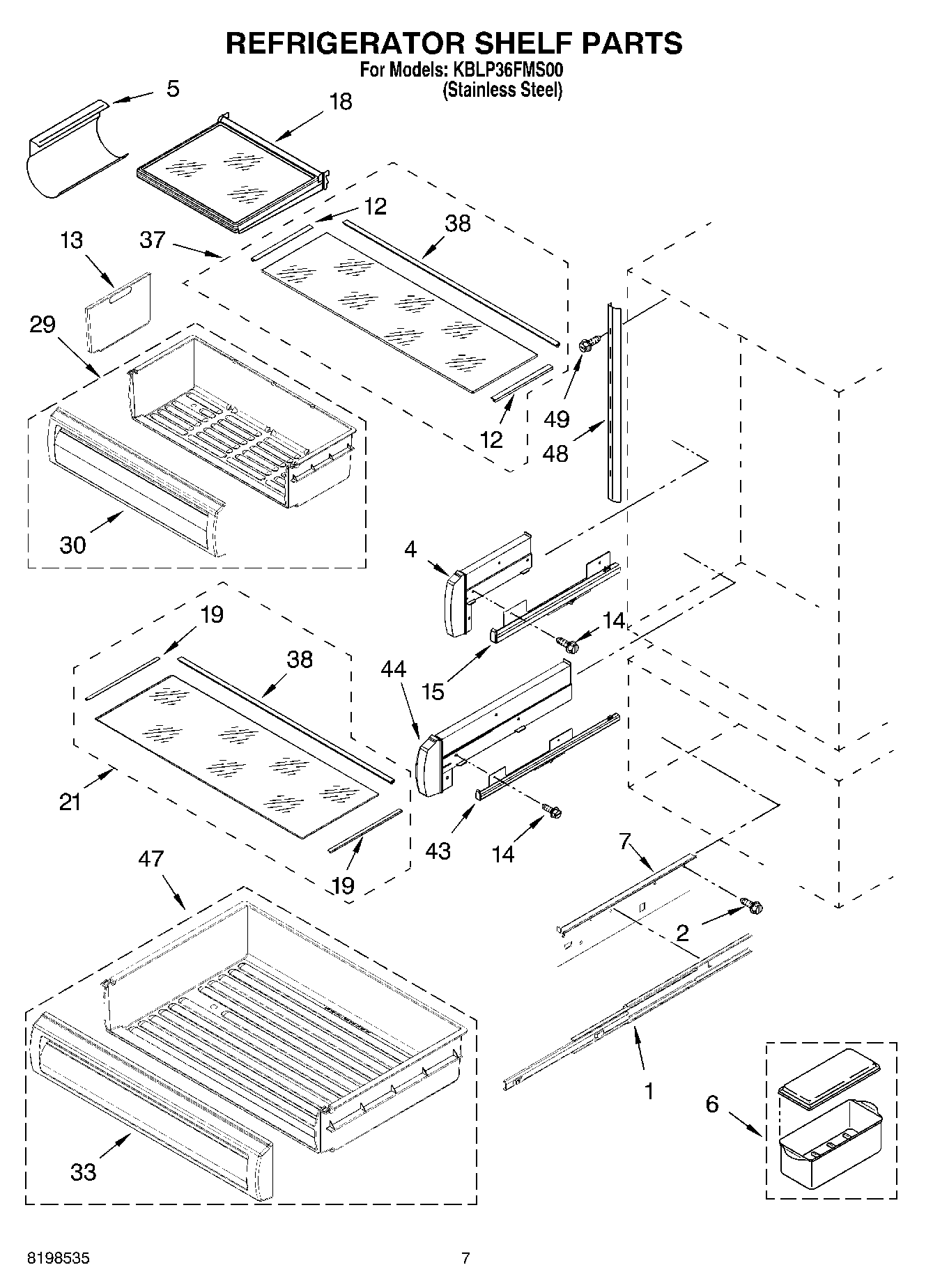

KBLP36FMS00 05 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Slide, Freezer Basket (Left Side)
1Slide, Freezer Basket (Right Side)
4Spacer, Crisper (Left Side)
4Spacer, Crisper (Right Side)
5W10777924 Whirlpool Refrigerator Wine Rack
6Egg Bin Assembly
7Bracket, Freezer Basket (Right Side)
7Bracket, Freezer Basket (Left Side)
12Trim-Glass, Side
13Divider, Crisper Pan
14WP3400886 Whirlpool Refrigerator Screw
152302952 Whirlpool Refrigerator Slide
152302953 Whirlpool Refrigerator Slide
18Shelf (4)
19Trim-Glass, Side
21Deli Shelf Assembly
29WP2256375 Whirlpool Refrigerator Crisper Pan
302256374 Whirlpool Front Pan
332257548 Whirlpool Refrigerator Front Pan
37Crisper Shelf Assembly
38Trim-Glass, Rear
43Slide, Deli (Left Side)
43Slide, Deli (Right Side)
44Spacer, Deli (Left Side)
44Spacer, Deli (Right Side)
47Deli Pan Assembly (Includes 33)
48Ladder, Shelf (4)
492006475 Whirlpool Refrigerator Screw
