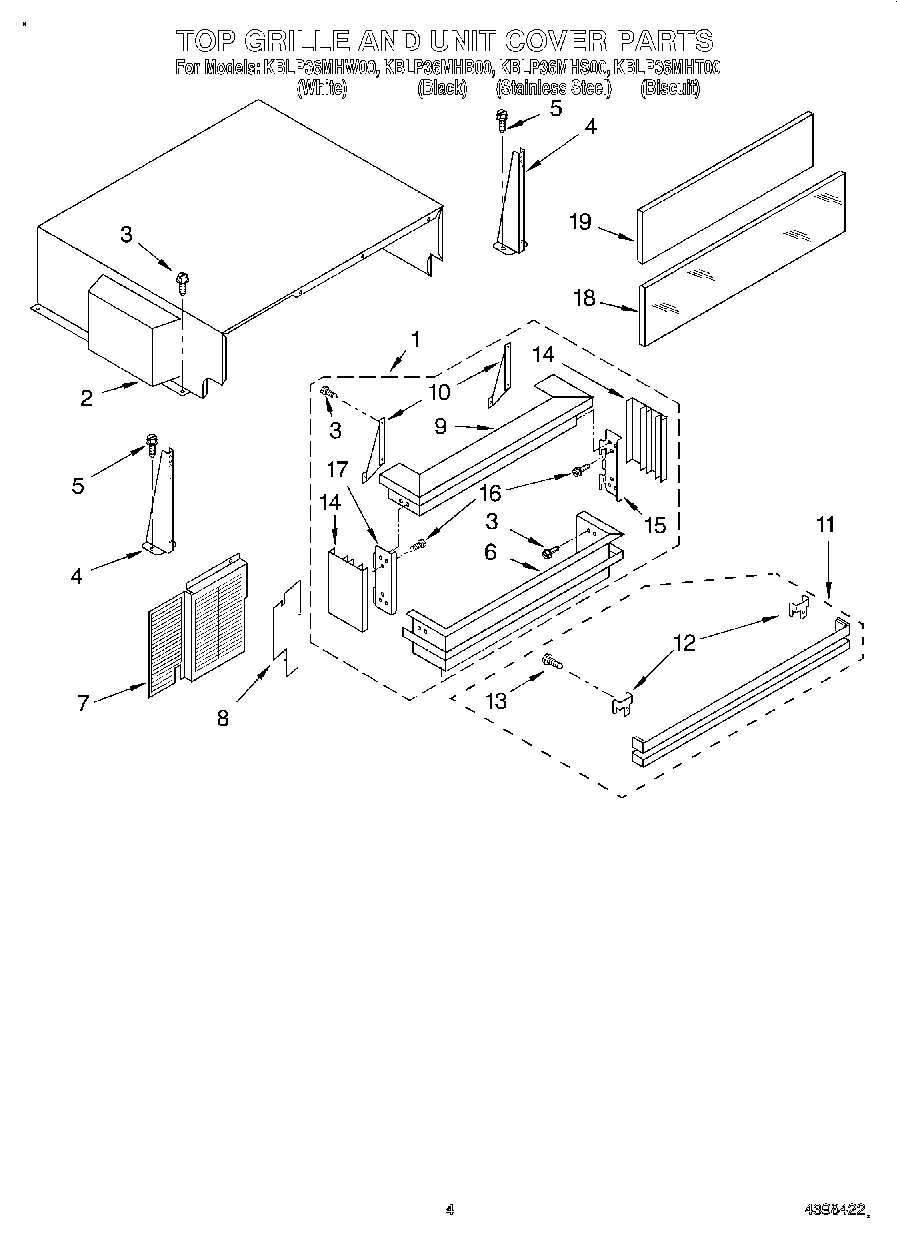

KBLP36MHW00 03 – TOP GRILLE AND UNIT COVER

Products

Position	Product
1	Top Grille Assembly (Stainless Steel)
1	Top Grille Assembly (Biscuit)
1	Top Grille Assembly (Black)
1	Top Grille Assembly (White)
2	Cover, Unit
4	Grille, Bracket
5	WP8204624 Whirlpool Bolt
6	Trim-Lower, Panel (Black)
6	Trim-Lower, Panel (White)
6	Trim-Lower, Panel (Biscuit)
6	Trim-Lower, Panel (Stainless Steel)
7	Guard, Compressor Wiring
8	Baffle-Air, Condenser
9	Trim-Top, Panel (White)
9	Trim-Top, Panel (Stainless Steel)
9	Trim-Top, Panel (Biscuit)
9	Trim-Top, Panel (Black)
10	Bracket, Trim Panel
11	Louver, Vent (Black)
11	Louver, Vent
11	Louver, Vent (White)
11	Louver, Vent (Biscuit)
12	Louver, Bracket
13	WPW10141625 Whirlpool Refrigerator Screw Assembly
14	Trim-Side, Panel (Biscuit)
14	Trim-Side, Panel (Stainless Steel)
14	Trim-Side, Panel (White)
14	Trim-Side, Panel (Black)
15	Bracket-Panel, Right Side
16	WP3196170 Whirlpool Screw
17	Bracket-Panel, Left Side
18	Decorative Panel, Acrylic (White)
18	Decorative Panel, Acrylic (Biscuit)
18	Decorative Panel, Acrylic (Stainless Steel)
18	Decorative Panel, Acrylic (Black)
19	Board, Filler
