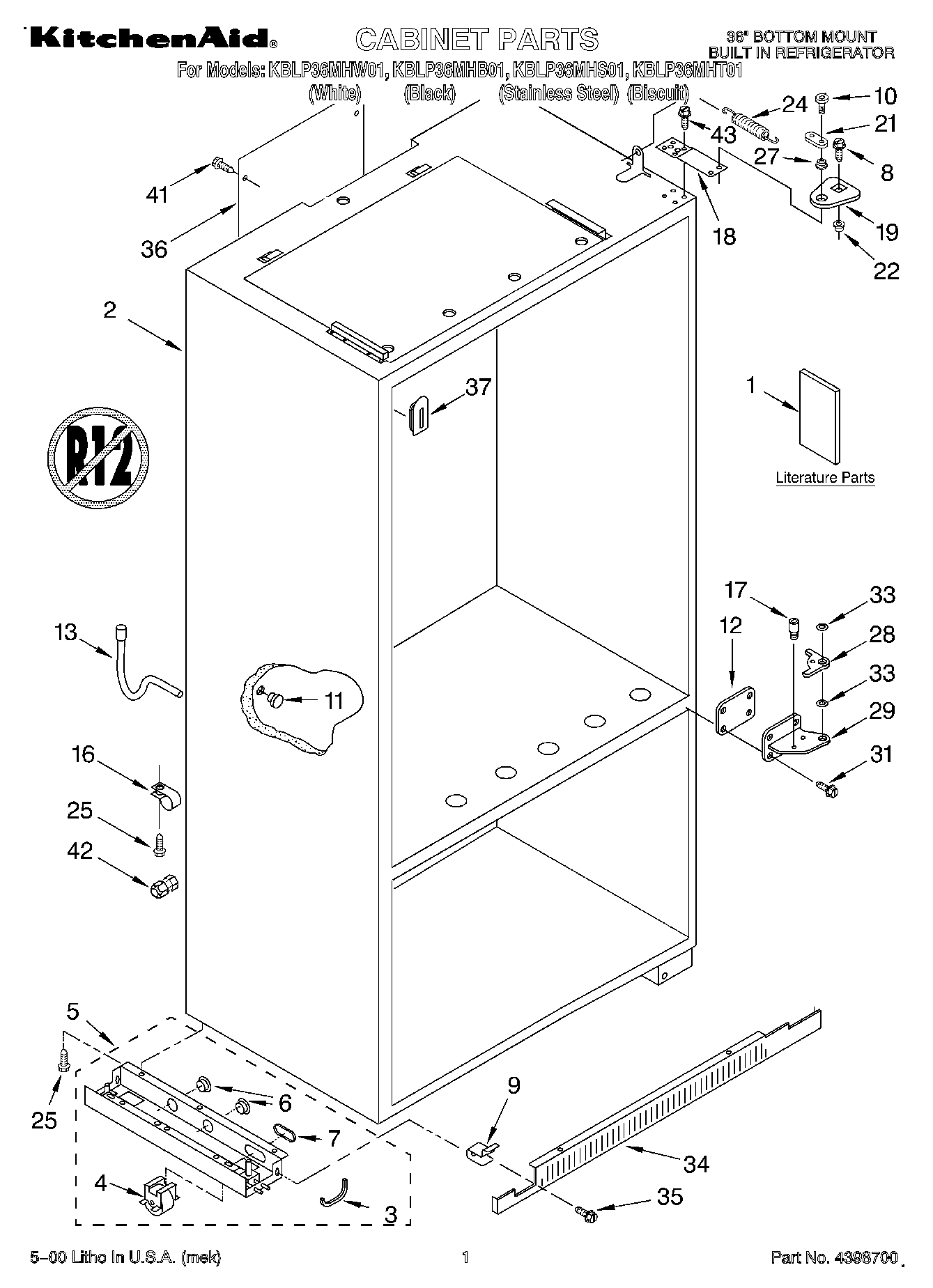

KBLP36MHW01 01 – CABINET, LITERATURE

Products

Position	Product
1	Modular Icemaker Service Sheet
1	LITERATURE PARTS (Use & Care Guide)
1	LITERATURE PARTS (Energy Label)
1	LITERATURE PARTS (Installation Instructions)
1	LITERATURE PARTS (Service & Wiring Sheet)
2	Cabinet (Not A Serviceable Part)
3	Grommet, Crossover Tube
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860229 Whirlpool Refrigerator Support
5	W10860448 Whirlpool Refrigerator Support
6	Grommet, Wiring
7	Grommet, Flexible
8	Screw
9	Mounting Bracket, Grill
10	Screw
11	Cap, Grommet
12	2207470 Whirlpool Refrigerator Hinge Shim
13	Tube, Drain Condensate
16	488946 Whirlpool Air Conditioner Clamp
17	Screw, Door Stop
18	2257644 Whirlpool Refrigerator Door Hinge
19	Cam-Closer, Door
21	Closer-Extension, Door
22	Bushing
24	WP2004517 Whirlpool Refrigerator Spring
25	W11624204 Whirlpool Screw
27	Bushing-Arm, Extension
28	W10188434 Whirlpool Refrigerator Hinge Gap
29	2005101 Whirlpool Refrigerator Bottom Hinge
31	W11474472 Whirlpool Screw
33	WP2006346 Whirlpool Refrigerator Washer
34	Grille Base, Front (White)
34	Grille Base, Front (Black)
35	Screw
36	Cover, Rear
37	Grommet, Wiring
41	WP1163283 Whirlpool Air Conditioner Screw
42	WP4211117 Whirlpool Refrigerator Connector
43	WP8204624 Whirlpool Bolt
