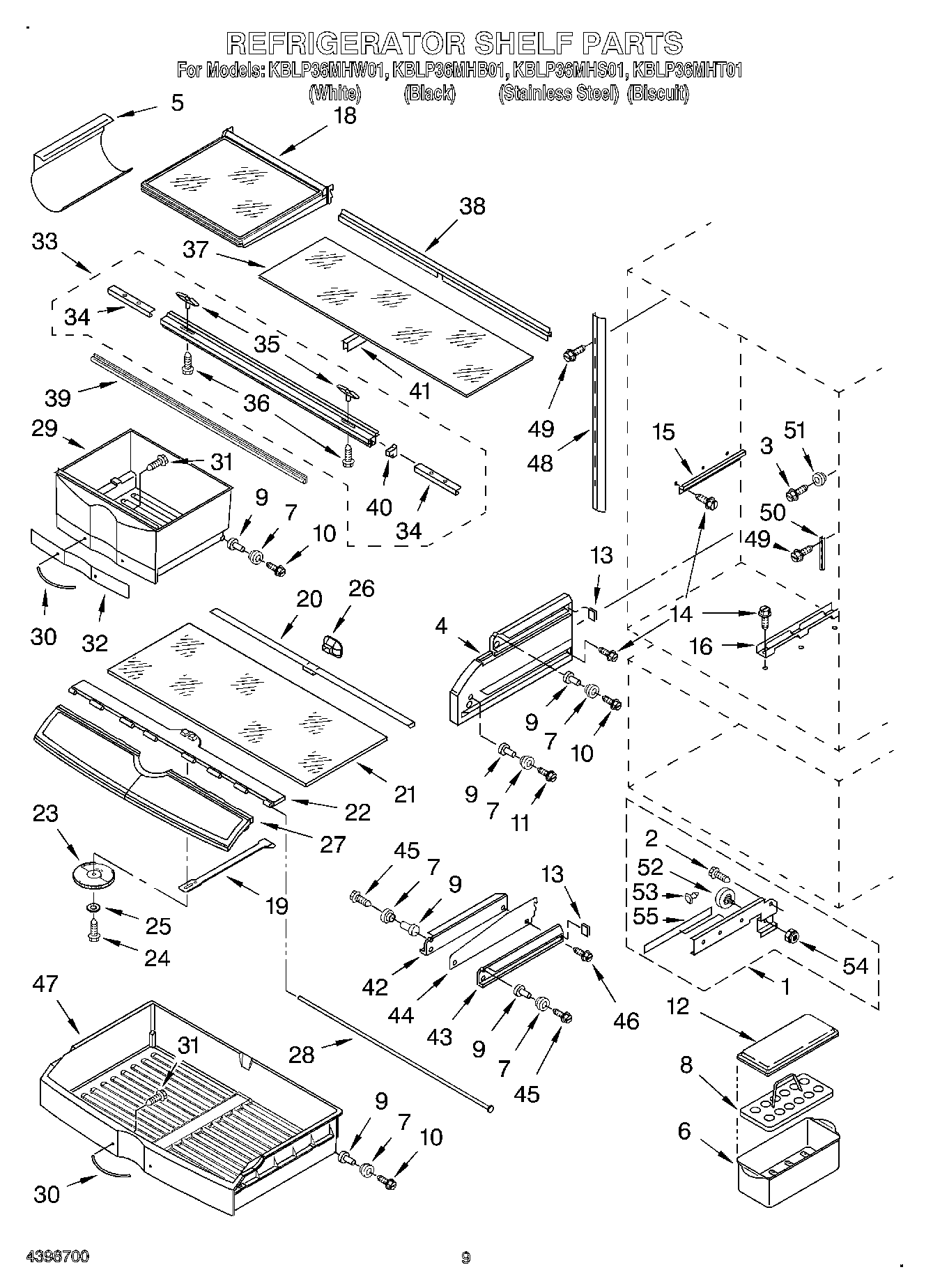

KBLP36MHW01 06 – REFRIGERATOR SHELF

Products

PositionProduct
1Slide, Freezer Basket (Left Side)
1Slide, Freezer Basket (Right Side)
2Screw, (3) No.8 x 1“
3Screw
4Spacer, Crisper (Left Side)
4Spacer, Crisper (Right Side)
5W10777924 Whirlpool Refrigerator Wine Rack
6W10136387A Whirlpool Refrigerator Egg Container
7Roller
8WP2177817 Whirlpool Refrigerator Egg Container
9Eyelet, Roller
11WP489261 Whirlpool Refrigerator Screw
12Cover
13Roller Stop
14W11624204 Whirlpool Screw
15Support, Crisper Shelf (2)
16Rail, Deli Center
18Shelf (4)
19Air Damper, Deli
20Rail-Rear, Deli
21Glass Shelf, Deli
22Rail-Front, Deli
23Control Knob, Deli
25Washer
26Connector, Deli Pan
27Lid, Deli Pan
28Hinge Rod, Deli Pan
29Cripser Pan
30Handle, Crisper Pan
312006253 Whirlpool Refrigerator Screw
32Overlay, Crisper Pan
33Rail-Front, Crisper Shelf
34Vent, Crisper Shelf
35Slide-Humidity, Crisper Shelf
362006254 Whirlpool Refrigerator Screw
37Glass, Crisper Shelf
38Rail-Rear, Crisper Shelf
39Seal-Front, Crisper Shelf
40Insulation, Crisper Rail
41Baffle-Center, Crisper Shelf
42Center Support, Left Half
43Center Support, Right Half
44Bracket, Center Support
45WPW10272364 Whirlpool Refrigerator Screw
46WP3400065 Whirlpool Refrigerator Screw
47Deli Pan
48Ladder, Shelf (4)
492006475 Whirlpool Refrigerator Screw
50Ladder, Crisper Support
51Shelf Stud
52Roller
53WPL 2207522
542207415 Whirlpool Refrigerator Nut
55WPL 2207569
