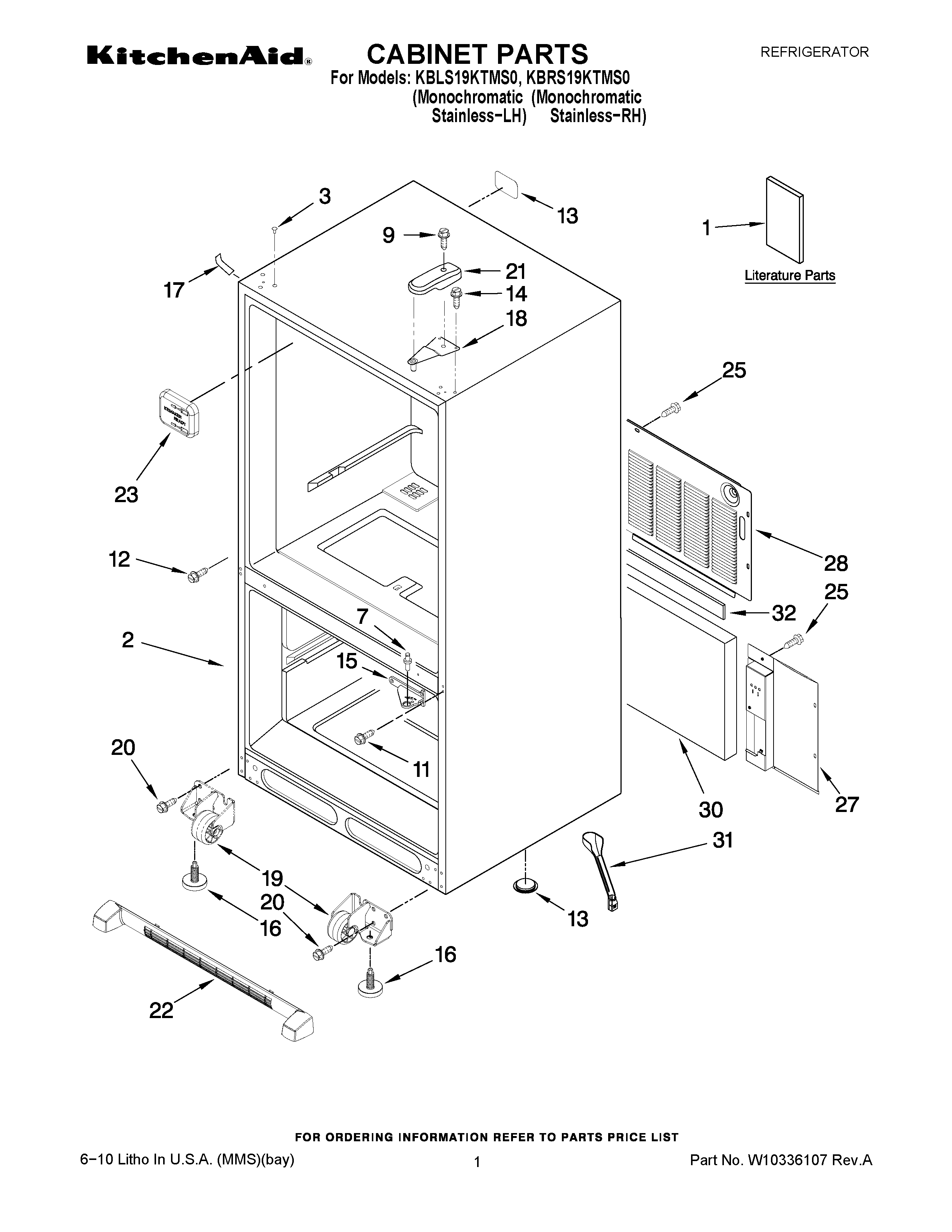

KBLS19KTMS0 01 – CABINET PARTS

KBLS19KTMS0 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1Energy Guide
1Use & Care Guide
2CABINET (NOT A SERVICEABLE PART)
3A3076901 Whirlpool Refrigerator Plug
7WP67006642 Whirlpool Refrigerator Pin
9WP8281196 Whirlpool Screw
11WP67006380 Whirlpool Screw
13W11685757 Whirlpool Label
14WP489349 Whirlpool Refrigerator Screw
1512607103AP Whirlpool Refrigerator Door Hinge
16WPW10141622 Whirlpool Leveler
17WP12587703AP Whirlpool Refrigerator Filler
18WP12566606ED Whirlpool Refrigerator Door Hinge
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
20WP98165 Whirlpool Screw
21W11106366 Whirlpool Refrigerator Door Hinge
22WPW10534165 Whirlpool Refrigerator Front Grille
23WP67001098 Whirlpool Refrigerator Tube Cover
2567006425 Whirlpool Refrigerator Screw
27W11684617 Whirlpool Valve Cover
28W10210978 Whirlpool Refrigerator Back Cover
30INSULATION, SOUND
31W10619951 Whirlpool Drain Tube with Grommet
32B5759655 Whirlpool Refrigerator Gasket
