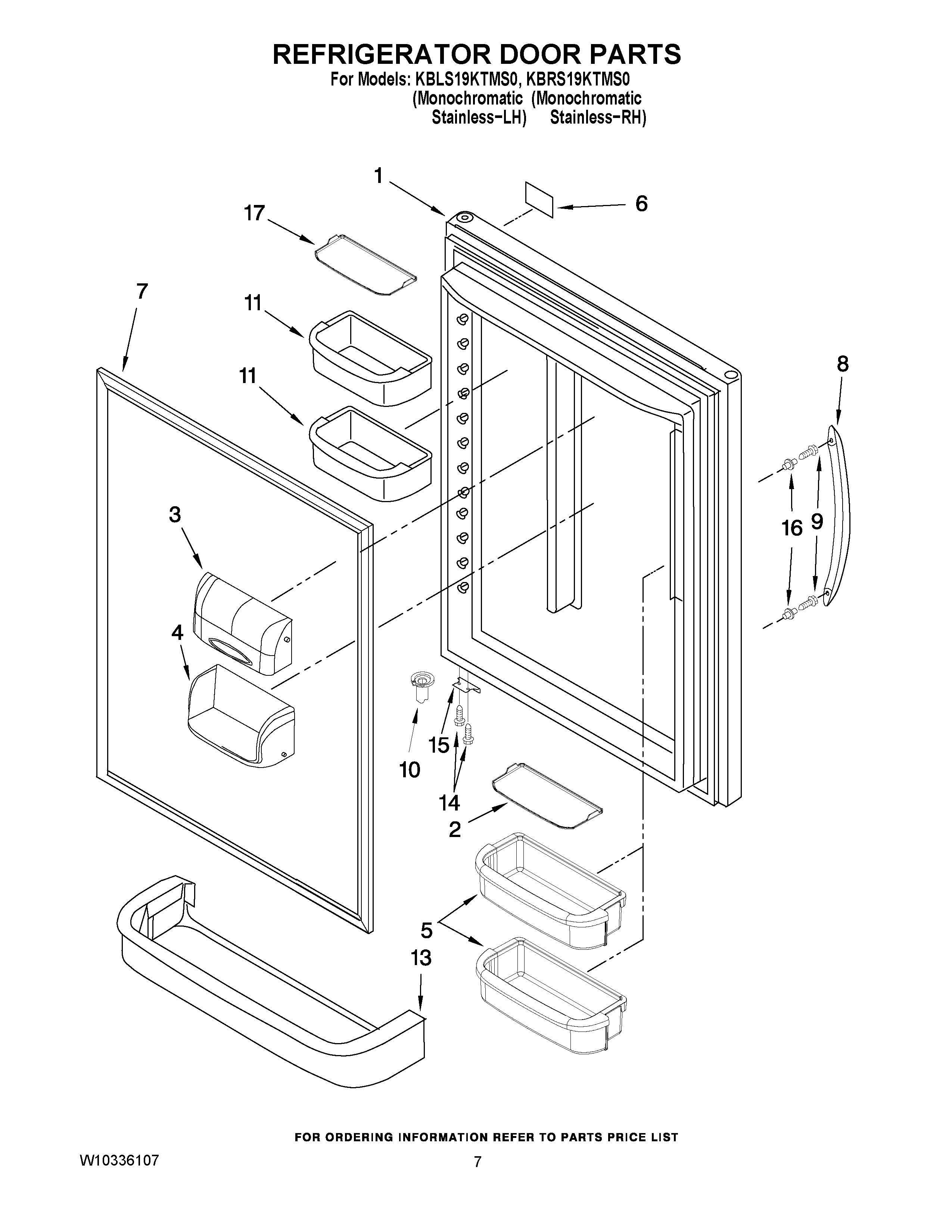

KBLS19KTMS0 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	13107541SQ Whirlpool Refrigerator DOR-FIP MS
1	13107539SQ Whirlpool Refrigerator DOR FIP Metal Silver
2	WPW10450021 Whirlpool Refrigerator Mat
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	NAMEPLATE
7	W11676571 Whirlpool Refrigerator FIP Gasket
8	WPW10314517K Whirlpool Refrigerator Handle
9	SCREW
10	WP12028505AP Whirlpool Closing Cam
11	WPW10351081 Whirlpool Refrigerator Cantilever Bin
13	67001139 Whirlpool Refrigerator Shelf Trim
14	WP98165 Whirlpool Screw
15	W11401472 Whirlpool Refrigerator Door Stop
16	WP67006113 Whirlpool Stud Bolt
17	W11408990 Whirlpool Refrigerator Mat
