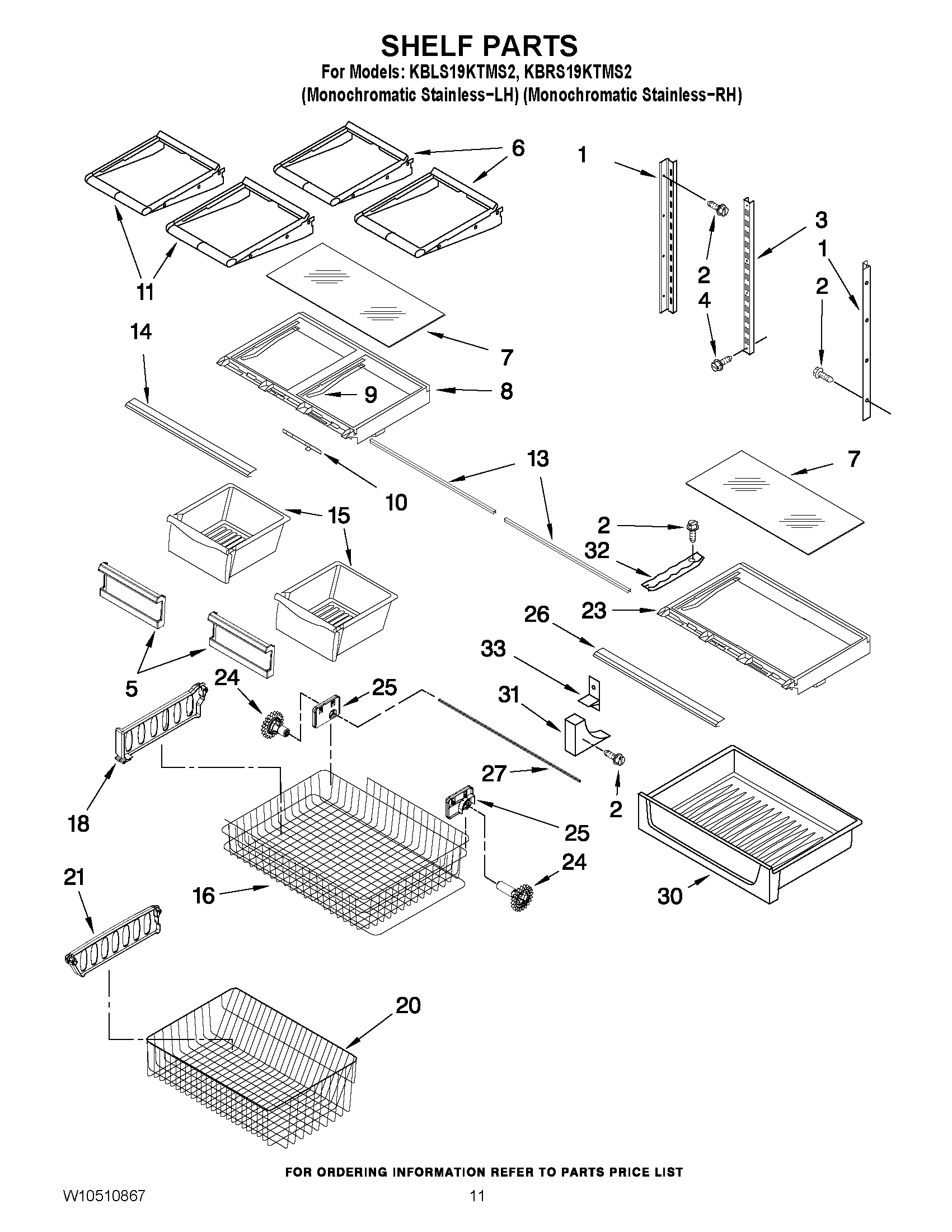

KBLS19KTMS2 06 – SHELF PARTS

KBLS19KTMS2 06 – SHELF PARTS

Written by

in

KBLS19KTMS2 06 – SHELF PARTS

Products

PositionProduct
1W10251970 Whirlpool Refrigerator Ladder
3W10273463 Whirlpool Refrigerator Ladder
467006425 Whirlpool Refrigerator Screw
5W10833529 Whirlpool Refrigerator Front Pan
6W11402522 Whirlpool Refrigerator Glass Shelf
7WP67006877 Whirlpool Refrigerator Glass Shelf
9RAIL-CENTR CRISPER
10SLIDE
13Whirlpool Refrigerator Shelf Support Liner
14WPW10231481 Whirlpool Refrigerator Shelf Trim
15W10833528 Whirpool Refrigerator Crisper Pan
16BASKET, FREEZER (UPPER)
18W10241046 Whirlpool Refrigerator Divider
20W10503182 Whirlpool Refrigerator Freezer Basket
21W10847995 Whirlpool Divider Assembly
23WPW10671240 Whirlpool Refrigerator Frame
24WPW10474716 Whirlpool Refrigerator Gear
24WPW10474715 Whirlpool Refrigerator Gear
25W10348259 Whirlpool Refrigerator Bracket Assembly
25W10348260 Whirlpool Refrigerator Bracket
26W10656984 Whirlpool Refrigerator Shelf Trim
27SHAFT, RACK
30W10328331 Whirlpool Refrigerator Utility Pan
31WP67001722 Whirlpool Refrigerator Support
31WP67001721 Whirlpool Refrigerator Support
32WP67001719 Whirlpool Refrigerator Track
33WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
