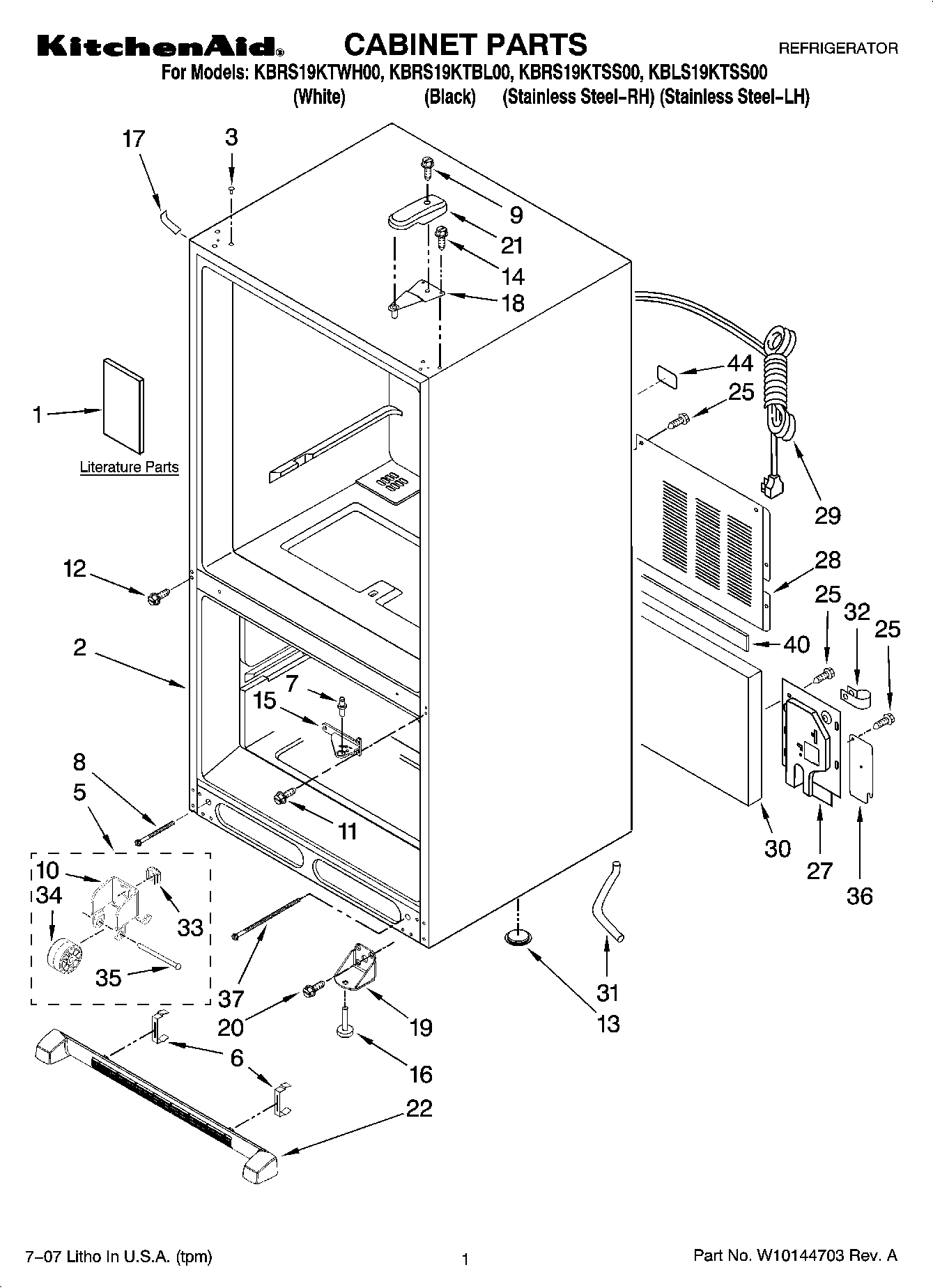

KBLS19KTSS00 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	Tech Sheet
1	Energy Tag
2	Cabinet (Not A Servicable Part)
3	WP67001130 Whirlpool Refrigerator White Button Plug
3	WP12246608 Whirlpool Refrigerator Button
5	Roller Assembly
6	Clip, Grille
7	WP67006642 Whirlpool Refrigerator Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	12456801V Whirlpool Refrigerator Bracket
11	WP67006380 Whirlpool Screw
12	WP489349 Whirlpool Refrigerator Screw
13	A3076901 Whirlpool Refrigerator Plug
15	WP12607103WD Whirlpool Refrigerator Center Hinge
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	W11177593 Whirlpool Leveling Feet
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	67003484 Whirlpool Refrigerator White Corner Cover
18	WP12566606ED Whirlpool Refrigerator Door Hinge
19	Bracket, Foot
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
22	WPW10534166 Whirlpool Refrigerator Front Grille
22	WPW10534167 Whirlpool Refrigerator Front Grille
25	67006425 Whirlpool Refrigerator Screw
27	Cover, Water Valve
28	Cover, Unit
29	Power Cord
30	67003796 Whirlpool Refrigerator Fiber Acoustic
31	Tube, Drain
32	67001067 Whirlpool Refrigerator Drain Tube Clip
33	M0286708 Whirlpool Refrigerator Holder Nut Assembly
34	WP10450603 Whirlpool Refrigerator Roller
35	Pin
36	Plate, Cover
37	Bolt, Adjusting (Rear)
40	Gasket
44	Label, Fill Tube
