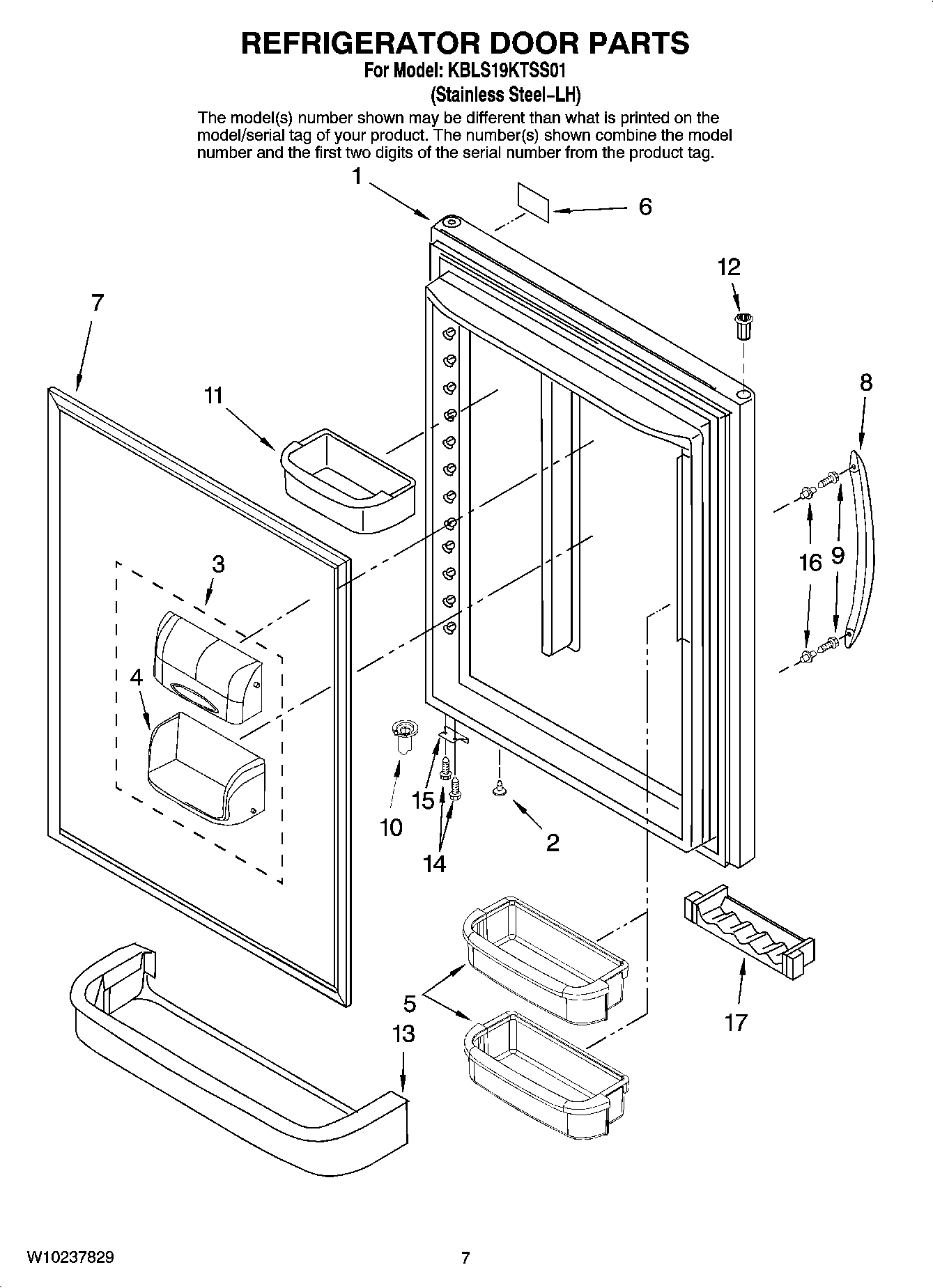

KBLS19KTSS01 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REF (STAINLESS)(LH)
267004838 Whirlpool Refrigerator Button Vent Plug
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10324005 Whirlpool Refrigerator Cantilever Bin
6NAMEPLATE
7WPW10436247 Whirlpool Refrigerator FIP Gasket
8WPW10314517K Whirlpool Refrigerator Handle
10WP67003639 Whirlpool Refrigerator Closer
1167001141 Whirlpool Refrigerator Small Bucket Door
1267004978 Whirlpool Refrigerator Black Door Bushing
13Retainer, Door
14WP98165 Whirlpool Screw
16WP67006113 Whirlpool Stud Bolt
17WP67005626 Whirlpool Refrigerator Can Caddy
