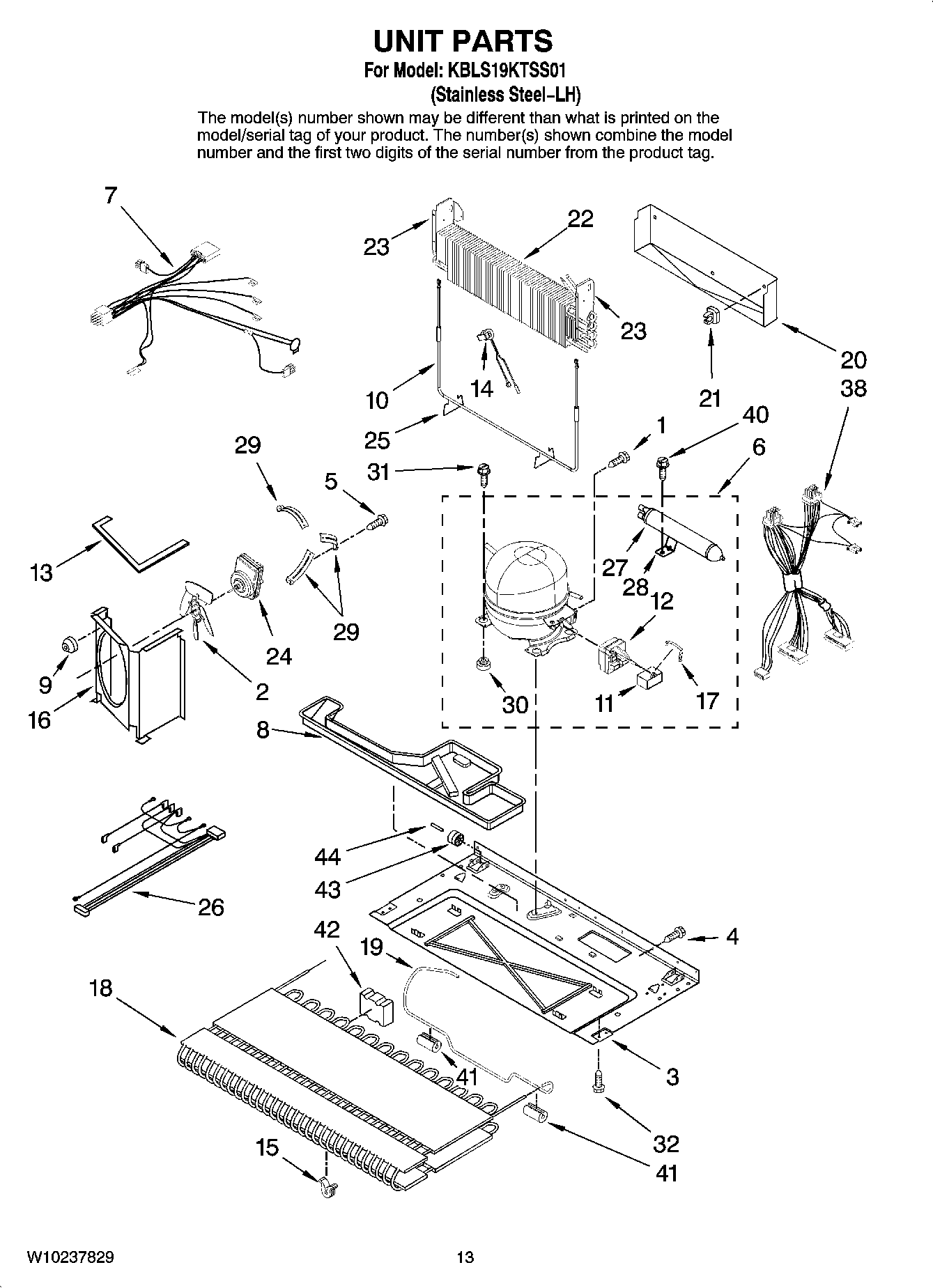

KBLS19KTSS01 07 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

KBLS19KTSS01 07 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KBLS19KTSS01 07 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
Torx Key
WP978025 Whirlpool Refrigerator Valve
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
VALVE, ACCESS (1/2“)
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WPL 799833
WPL ARI153549A
WPL ARI153548A
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI153547A
WPL ARI153546A
CLEANER, (STAINLESS STEEL)
978030 Whirlpool Refrigerator Valve
WP542638 Whirlpool Refrigerator Grease
WPL ARI153551A
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
VALVE, ACCESS (5/8“)
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392901 Whirlpool Biscuit Spray Paint
833938 Whirlpool Refrigerator Terminal
978027 Whirlpool Refrigerator Primary Valve
WP505587 Whirlpool Refrigerator Sealer
WPL ARI153550A
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
WP503695 Whirlpool Refrigerator Sealer
112992301 Whirlpool Refrigerator Screw
2W10156818 Whirlpool Refrigerator Fan Blade
3Basepan
467006425 Whirlpool Refrigerator Screw
5WP67004954 Whirlpool Refrigerator Screw
6COMPRESSOR (INCLUDES ITEMS 11,12,17,27)
7Harness, Evap. Heater
8Drain Pan
9Grommet (3)
10WP67002135 Whirlpool Refrigerator Defrost Heater
11WPW10662129 Whirlpool Refrigerator Run Capacitor
12WPW10197426 Whirlpool Refrigerator Start Device
13WP854334 Whirlpool Air Conditioner Sealing Strip
14WPW10165425 Whirlpool Bimetal Defrost Thermostat
15WPW10137529 Whirlpool Refrigerator Grommet
16Shroud, Condenser
17Clip, Capacitor
18W10346423 Whirlpool Refrigerator Condenser
19Tube, Discharge
20W11337775 Whirlpool Drip Tray
21CLIP, EVAP (2)
22EVAPORATOR
23Dam (Right Side)
23Dam (Left Side)
24Motor, Fan
25W11673433 Whirlpool Clip
2613060302 Whirlpool Refrigerator Wire Harness
27WPW10143759 Whirlpool Dryer Filter
2810547003 Whirlpool Refrigerator Dryer Clip
29WP67004953 Whirlpool Refrigerator Bracket
30WPW10169124 Whirlpool Refrigerator Grommet
3112846902 Whirlpool Refrigerator Screw
32Screw (4)
40WP33001882 Whirlpool Screw
4167005680 Whirlpool Refrigerator Condenser Grommet
42Block, Condenser
43WP67005149 Whirlpool Roller
4467006434 Whirlpool Axle Pin
