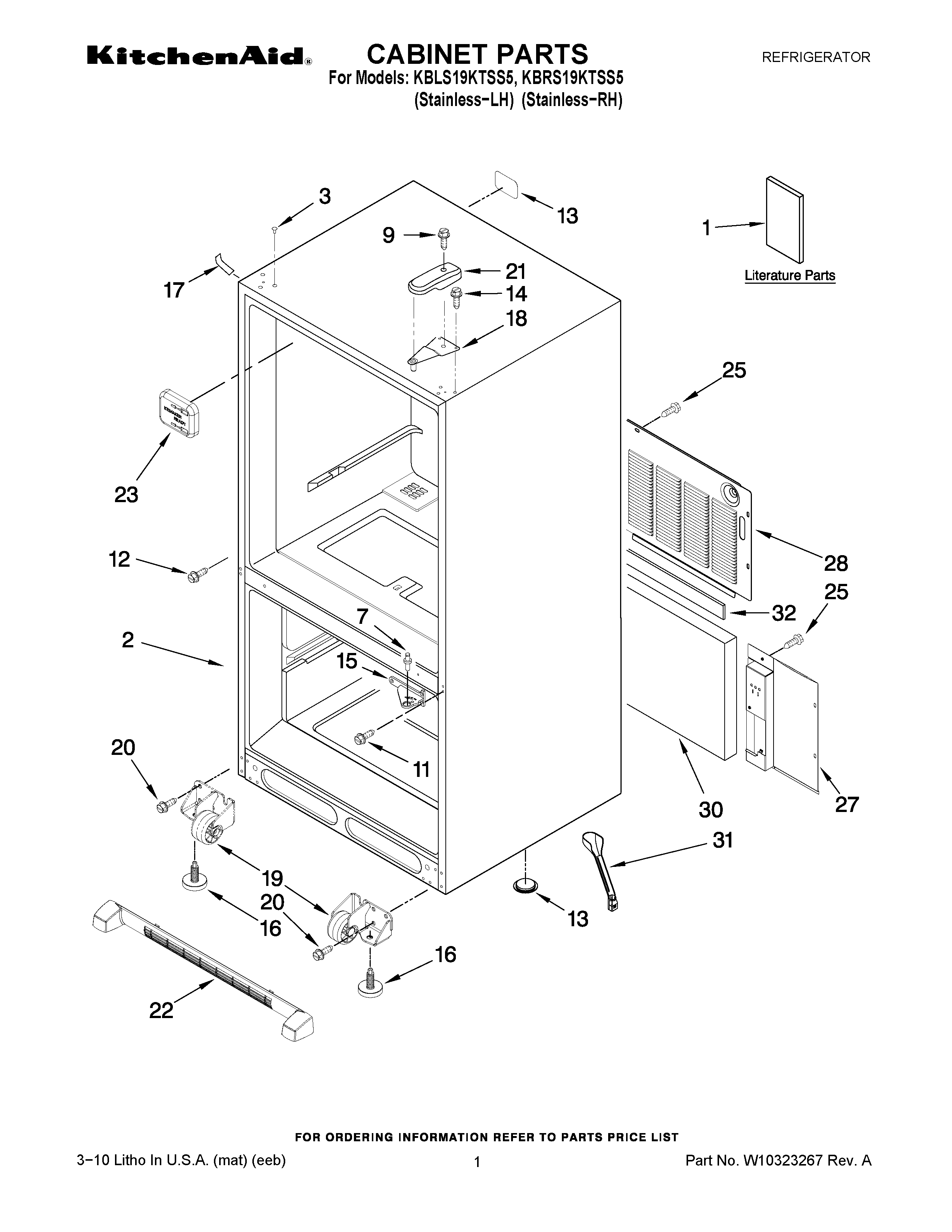

KBLS19KTSS5 01 – CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	Energy Guide
1	Use & Care Guide
2	CABINET (NOT A SERVICEABLE PART)
3	WP67001130 Whirlpool Refrigerator White Button Plug
7	WP67006642 Whirlpool Refrigerator Pin
9	WP8281196 Whirlpool Screw
11	WP67006380 Whirlpool Screw
13	W11685757 Whirlpool Label
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	WPW10141622 Whirlpool Leveler
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	WP12566606ED Whirlpool Refrigerator Door Hinge
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
19	WPW10515762 Whirlpool Refrigerator Cabinet Roller
20	WP98165 Whirlpool Screw
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
22	WPW10534167 Whirlpool Refrigerator Front Grille
23	WP67001098 Whirlpool Refrigerator Tube Cover
25	67006425 Whirlpool Refrigerator Screw
27	W11684617 Whirlpool Valve Cover
28	W10210978 Whirlpool Refrigerator Back Cover
30	INSULATION, SOUND
31	W10619951 Whirlpool Drain Tube with Grommet
32	B5759655 Whirlpool Refrigerator Gasket
