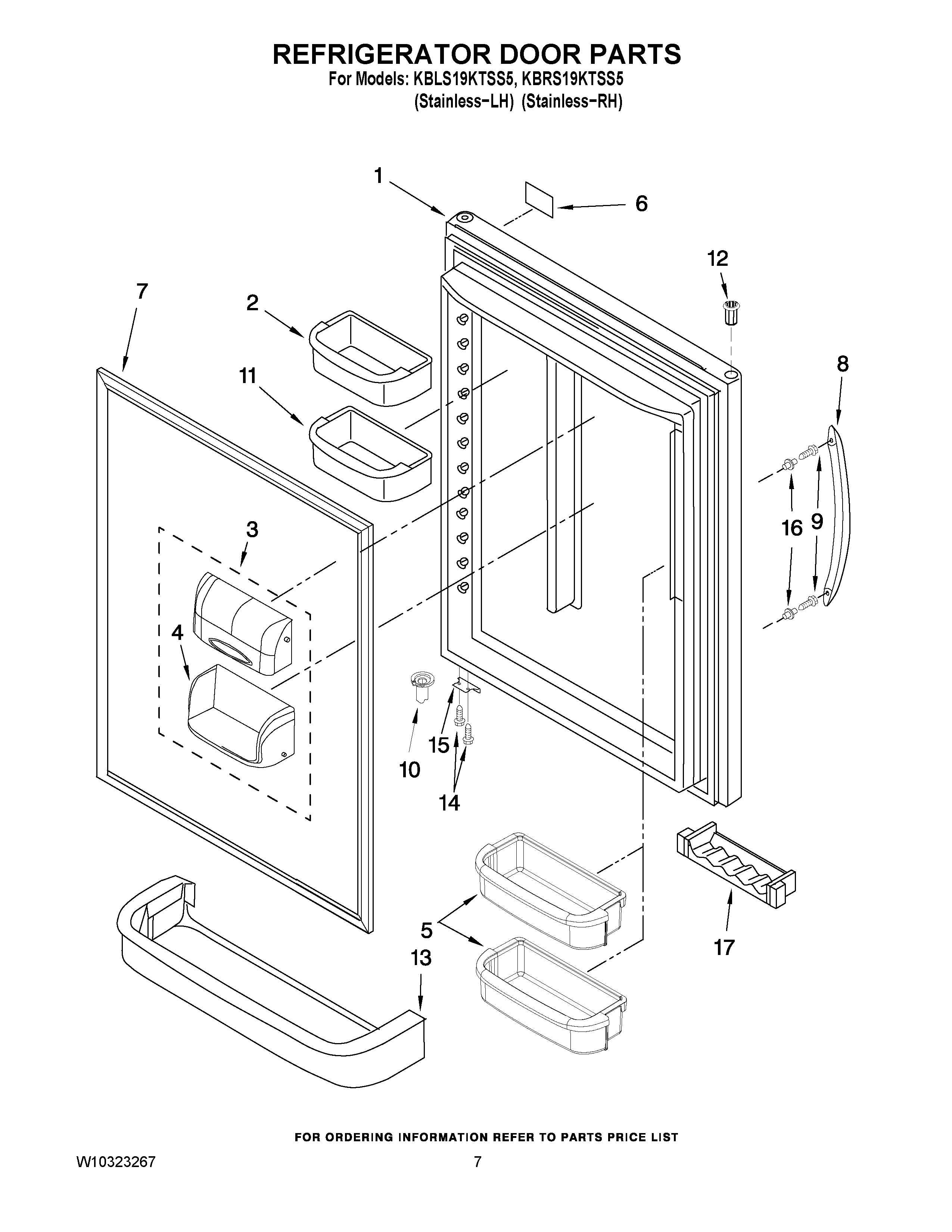

KBLS19KTSS5 04 – REFRIGERATOR DOOR PARTS

KBLS19KTSS5 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBLS19KTSS5 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (STAINLESS-RH)
113107540SQ Whirlpool Refrigerator DOR-FIP SS
2BUCKET, SHORT
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6NAMEPLATE
7WPW10436247 Whirlpool Refrigerator FIP Gasket
8WPW10314517K Whirlpool Refrigerator Handle
9SCREW
10WP67003639 Whirlpool Refrigerator Closer
11WPW10351081 Whirlpool Refrigerator Cantilever Bin
1267004978 Whirlpool Refrigerator Black Door Bushing
13Retainer, Door
14WP98165 Whirlpool Screw
15W11708403 Whirlpool Door Stop
16WP67006113 Whirlpool Stud Bolt
17WP67005626 Whirlpool Refrigerator Can Caddy
