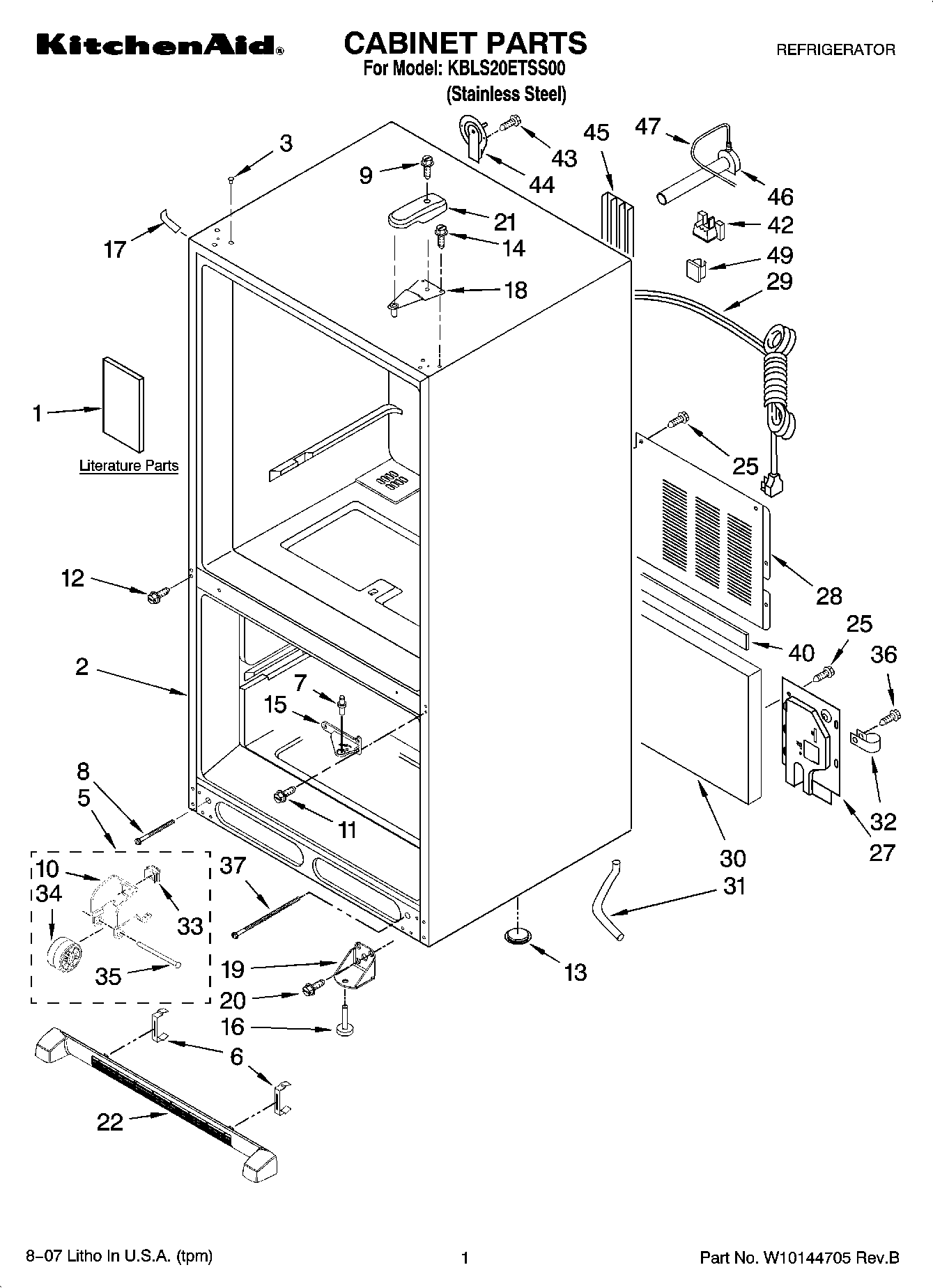

KBLS20ETSS00 01 – CABINET PARTS

KBLS20ETSS00 01 – CABINET PARTS

Written by

in

KBLS20ETSS00 01 – CABINET PARTS

Products

PositionProduct
1Energy Tag
1Tech Sheet
1Owners Manual
2Cabinet (Not A Servicable Part)
3WP12246608 Whirlpool Refrigerator Button
5Roller Assembly
6Clip, Grille
7WP67006642 Whirlpool Refrigerator Pin
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
1012456801V Whirlpool Refrigerator Bracket
11WP67006380 Whirlpool Screw
13A3076901 Whirlpool Refrigerator Plug
14WP489349 Whirlpool Refrigerator Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
16W11177593 Whirlpool Leveling Feet
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18WP12566606ED Whirlpool Refrigerator Door Hinge
19Bracket, Foot
2167001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
2567006425 Whirlpool Refrigerator Screw
27Cover, Water Valve
28Cover, Unit
29Power Cord
3067003796 Whirlpool Refrigerator Fiber Acoustic
31Tube, Drain
3267001067 Whirlpool Refrigerator Drain Tube Clip
33M0286708 Whirlpool Refrigerator Holder Nut Assembly
34WP10450603 Whirlpool Refrigerator Roller
35Pin
36WP33001882 Whirlpool Screw
37Bolt, Adjusting (Rear)
40Gasket
42WP12777701 Whirlpool Refrigerator Filler Block
43WP98165 Whirlpool Screw
4412726003 Whirlpool Refrigerator Water Cover
45Track, Waterline
46W11176463 Whirlpool Refrigerator Water Tube
47WPB5705307 Whirlpool Refrigerator Tube
49WPM0104106 Whirlpool Refrigerator Clip
