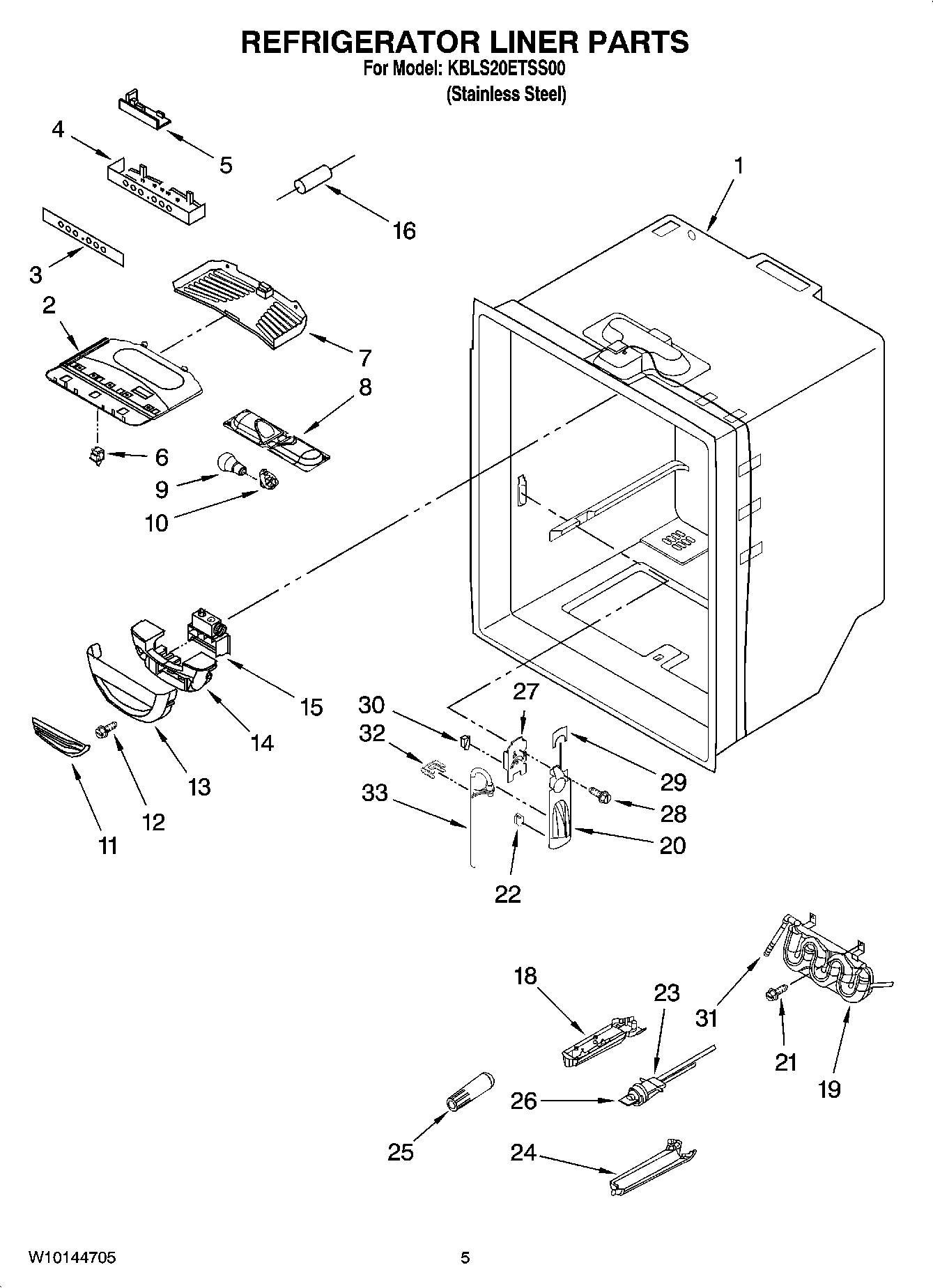

KBLS20ETSS00 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Housing, Ref. Light
3Overlay
4Module, Control
5WPW10207861-includeCORE Whirlpool WPW10207861 Refrigerator Electronic Control Board + Core
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10196393 Whirlpool Control Damper
1612002355 Whirlpool Refrigerator Thermistor Kit
18PLATE-FIL
19W11361728 Whirlpool Reservoir Assembly
20Cover, Dispenser Front
2167006425 Whirlpool Refrigerator Screw
22W10819546 Whirlpool Refrigerator Clip
23WP67006524 Whirlpool Refrigerator Housing
24WP12568001 Whirlpool Filter Cover
25everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
26Plug, Bypass
2712707303SP Whirlpool Refrigerator Plate
28WP98165 Whirlpool Screw
29W11519867 Whirlpool Refrigerator Cover
30WP12575501 Whirlpool Refrigerator Micro Switch
31WP2300868 Whirlpool Refrigerator Fitting
3267002816 Whirlpool Refrigerator Waterline Clip
33Harness, Damper Control
3367005644 Whirlpool Refrigerator Wire Harness
33Following Parts Not Illustrated
33W11677725 Whirlpool Refrigerator Guide
