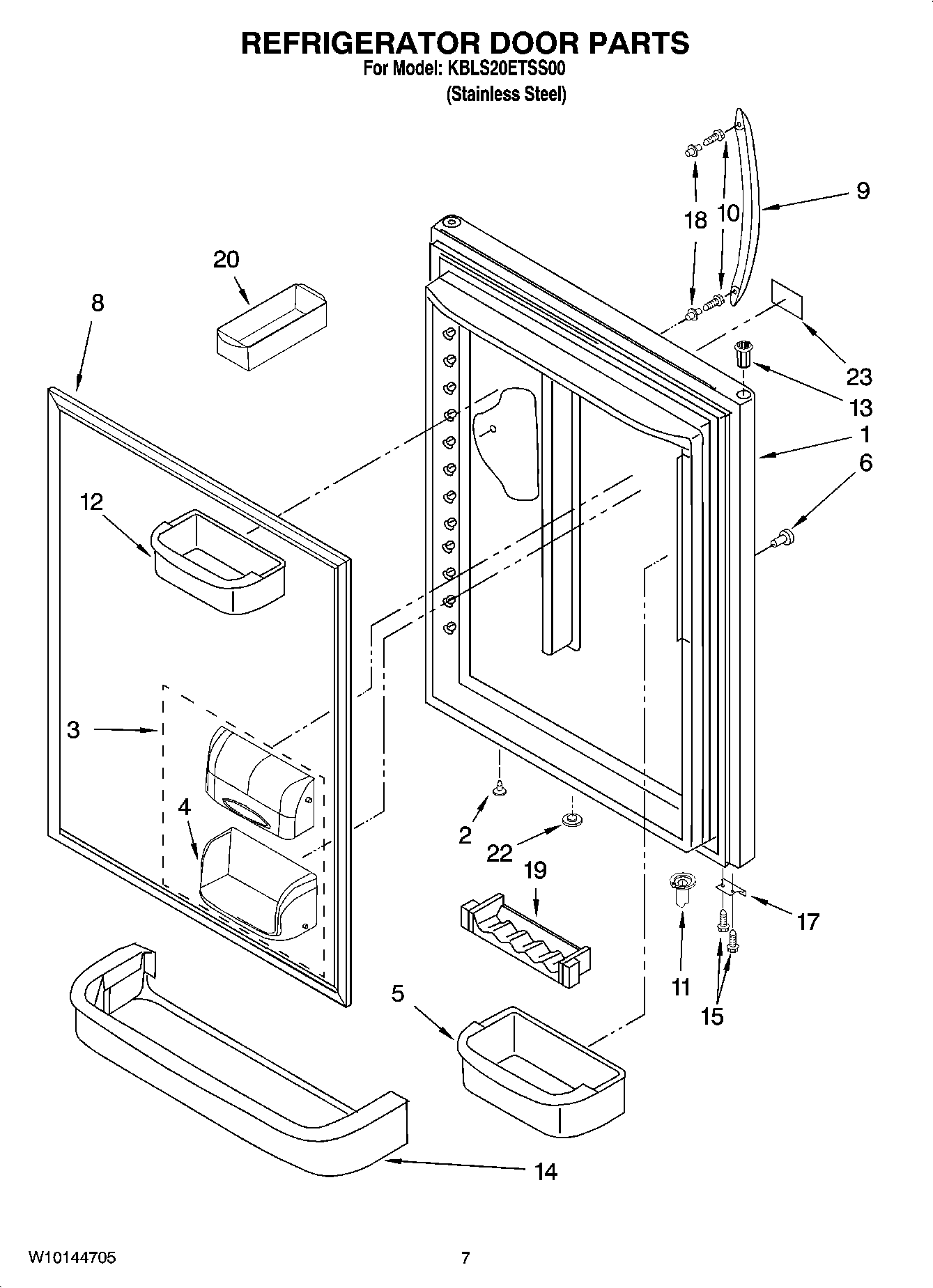

KBLS20ETSS00 04 – REFRIGERATOR DOOR PARTS

KBLS20ETSS00 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBLS20ETSS00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (w/ Insulation) (Stainless Steel)
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5Shelf Bin (Medium)
6WP12246608 Whirlpool Refrigerator Button
8W10849442 Whirlpool Refrigerator FIP Gasket
9Handle, Door (Stainless Steel)
10WP3387230 Whirlpool Screw
11WP67003639 Whirlpool Refrigerator Closer
12Shelf Bin (Large)
1367004978 Whirlpool Refrigerator Black Door Bushing
14Trim, Door Shelf
15WP98165 Whirlpool Screw
17W11708403 Whirlpool Door Stop
18Stud, Handle
19WP67005626 Whirlpool Refrigerator Can Caddy
20W10136387A Whirlpool Refrigerator Egg Container
2267004838 Whirlpool Refrigerator Button Vent Plug
23NAMEPLATE
