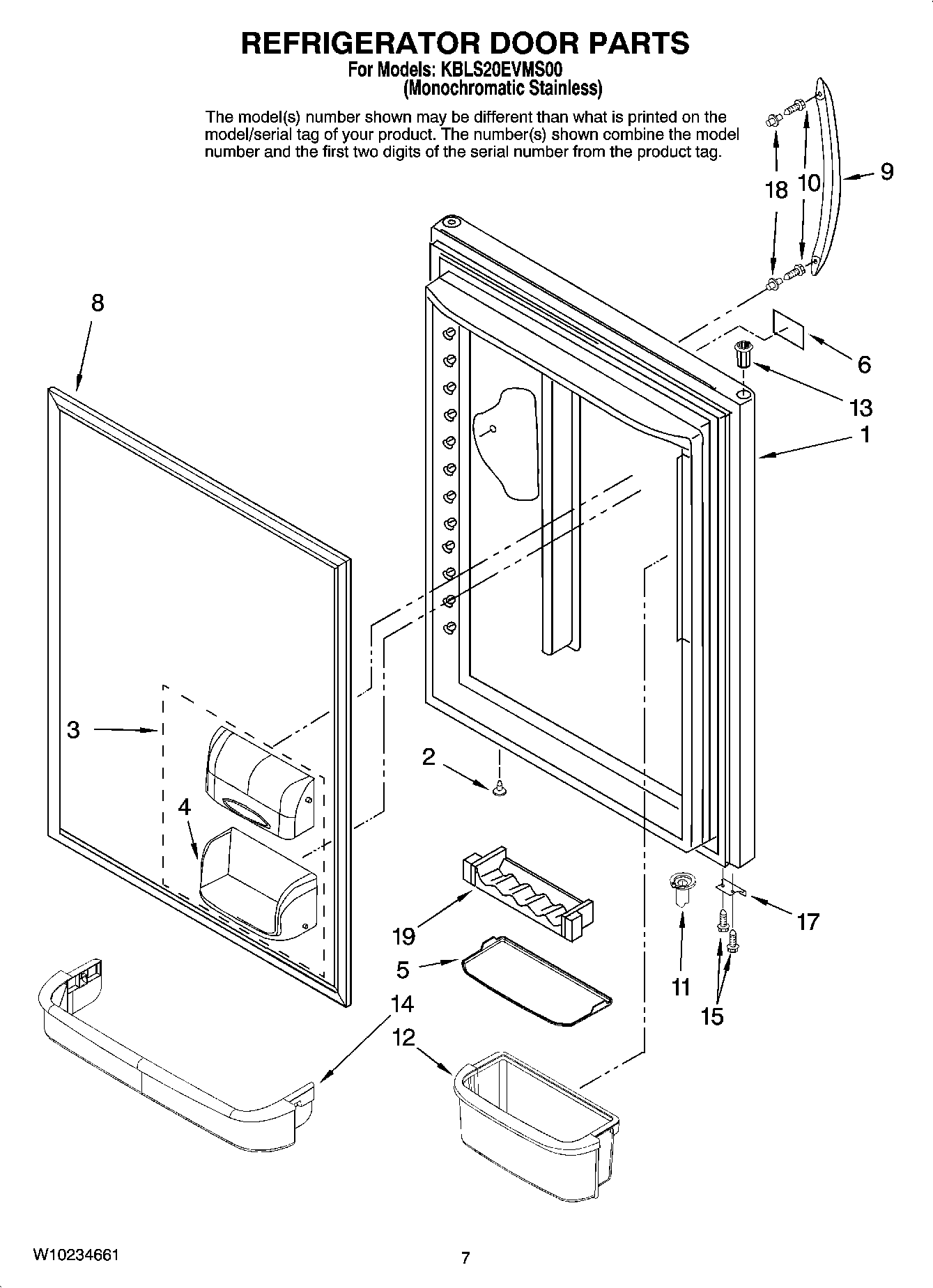

KBLS20EVMS00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (STAINLESS – LH)
267004838 Whirlpool Refrigerator Button Vent Plug
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5Gripper, Bucket
6NAMEPLATE
8Gasket, Door (Apollo Grey)
9WPW10314517K Whirlpool Refrigerator Handle
11WP12028505AP Whirlpool Closing Cam
12Shelf Bin (Large)
1310961006AP Whirlpool Refrigerator Hinge Bushing
14Retainer, Door
15WP98165 Whirlpool Screw
17W11401472 Whirlpool Refrigerator Door Stop
18WP67006113 Whirlpool Stud Bolt
19WP67005626 Whirlpool Refrigerator Can Caddy
