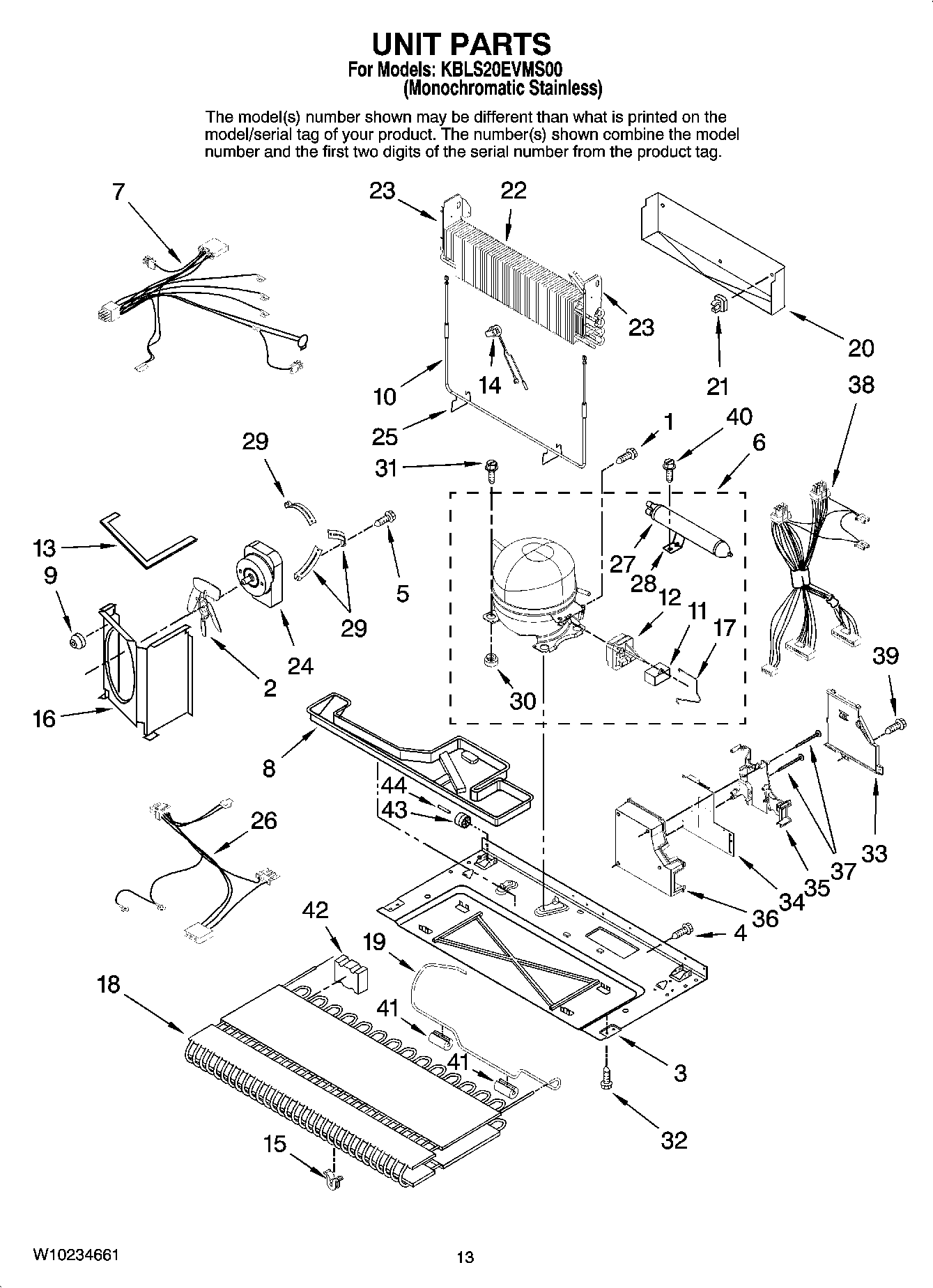

KBLS20EVMS00 07 – UNIT PARTS

KBLS20EVMS00 07 – UNIT PARTS

Written by

in

KBLS20EVMS00 07 – UNIT PARTS

Products

Position	Product
	978030 Whirlpool Refrigerator Valve
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
	REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
2	W10156818 Whirlpool Refrigerator Fan Blade
3	Basepan
4	67006425 Whirlpool Refrigerator Screw
5	WP67004954 Whirlpool Refrigerator Screw
6	W10160407 Whirlpool Refrigerator Compressor
7	Harness, Evap Heater
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	Grommet (3)
10	WP67002493 Whirlpool Refrigerator Defrost Heater
12	W10613606 Whirlpool Refrigerator Start Device Relay Overload
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	WPW10165425 Whirlpool Bimetal Defrost Thermostat
15	WPW10137529 Whirlpool Refrigerator Grommet
16	Shroud, Condenser
17	Clip, Capacitor
18	WP67006131 Whirlpool Refrigerator Condenser
19	WP12866903 Whirlpool Refrigerator Discharge Tube
20	W11547653 Whirlpool Refrigerator Drip Tray
21	CLIP, EVAP (2)
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	Dam (Right Side)
23	Dam (Left Side)
24	Motor, Fan
25	W11673433 Whirlpool Clip
26	Harness, Unit Includes Cord
27	WPW10143759 Whirlpool Dryer Filter
28	10547003 Whirlpool Refrigerator Dryer Clip
29	WP67004953 Whirlpool Refrigerator Bracket
30	67003493 Whirlpool Refrigerator Compressor Grommet
31	12846902 Whirlpool Refrigerator Screw
32	Screw (4)
33	67005421 Whirlpool Hoist Cover
34	Board, HV
35	Spacer, HV
36	Box, HV
37	Screw (2)
38	Harness, HV
39	W10709801 Whirlpool Refrigerator Screw
40	WP33001882 Whirlpool Screw
41	67005680 Whirlpool Refrigerator Condenser Grommet
42	Block, Condenser
43	WP67005149 Whirlpool Roller
44	67006434 Whirlpool Axle Pin
