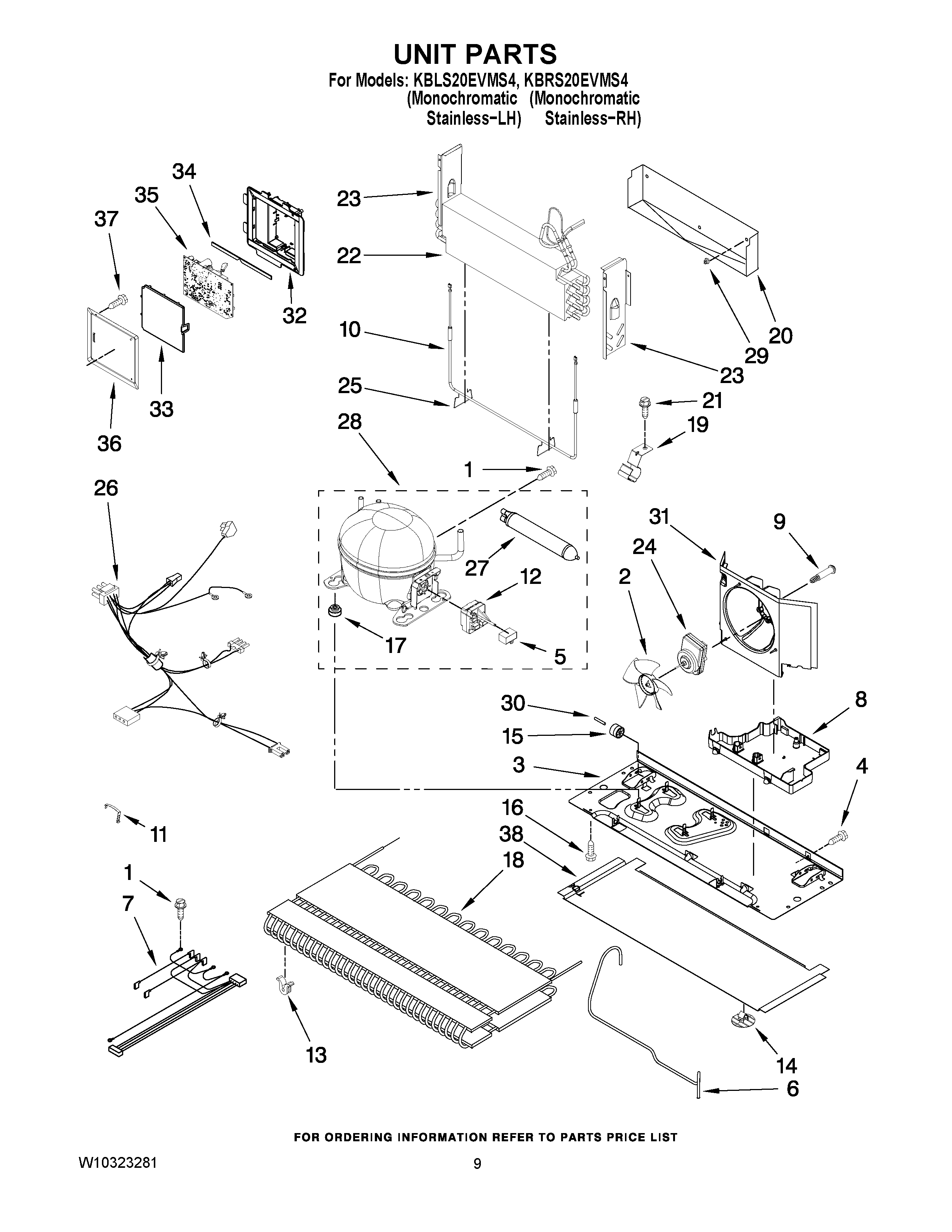

KBLS20EVMS4 05 – UNIT PARTS

KBLS20EVMS4 05 – UNIT PARTS

Written by

in

KBLS20EVMS4 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
4	67006425 Whirlpool Refrigerator Screw
5	WP65889-4 Whirlpool Refrigerator Capacitor
6	TUBE, DISCHARGE
7	W10292242 Whirlpool Refrigerator Wire Harness
8	WPW10655368 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	W10825088 Whirlpool Refrigerator Defrost Heater W10836434
11	STRAP, BALE
12	WPW10244032 Whirlpool Refrigerator Start Device
13	WPW10137529 Whirlpool Refrigerator Grommet
14	W10206339 Whirlpool Fastener
15	WP67005149 Whirlpool Roller
16	Screw
17	W10852725 Whirlpool Refrigerator Grommet
18	WPW10346415 Whirlpool Refrigerator Condenser
19	W10281329 Whirlpool Clamp
20	W11547653 Whirlpool Refrigerator Drip Tray
21	WP489474 Whirlpool Refrigerator Screw
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	Dam (Left Side)
23	Dam (Right Side)
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	W10222811 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10160407 Whirlpool Refrigerator Compressor
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	BOX, HV CONTROL
33	LID, HV BOX
34	GASKET, HV BOX
35	WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
36	12961602 Whirlpool Refrigerator Wire Cover
37	W11686675 Whirlpool Screw
38	EXTENSION-BASEPAN
