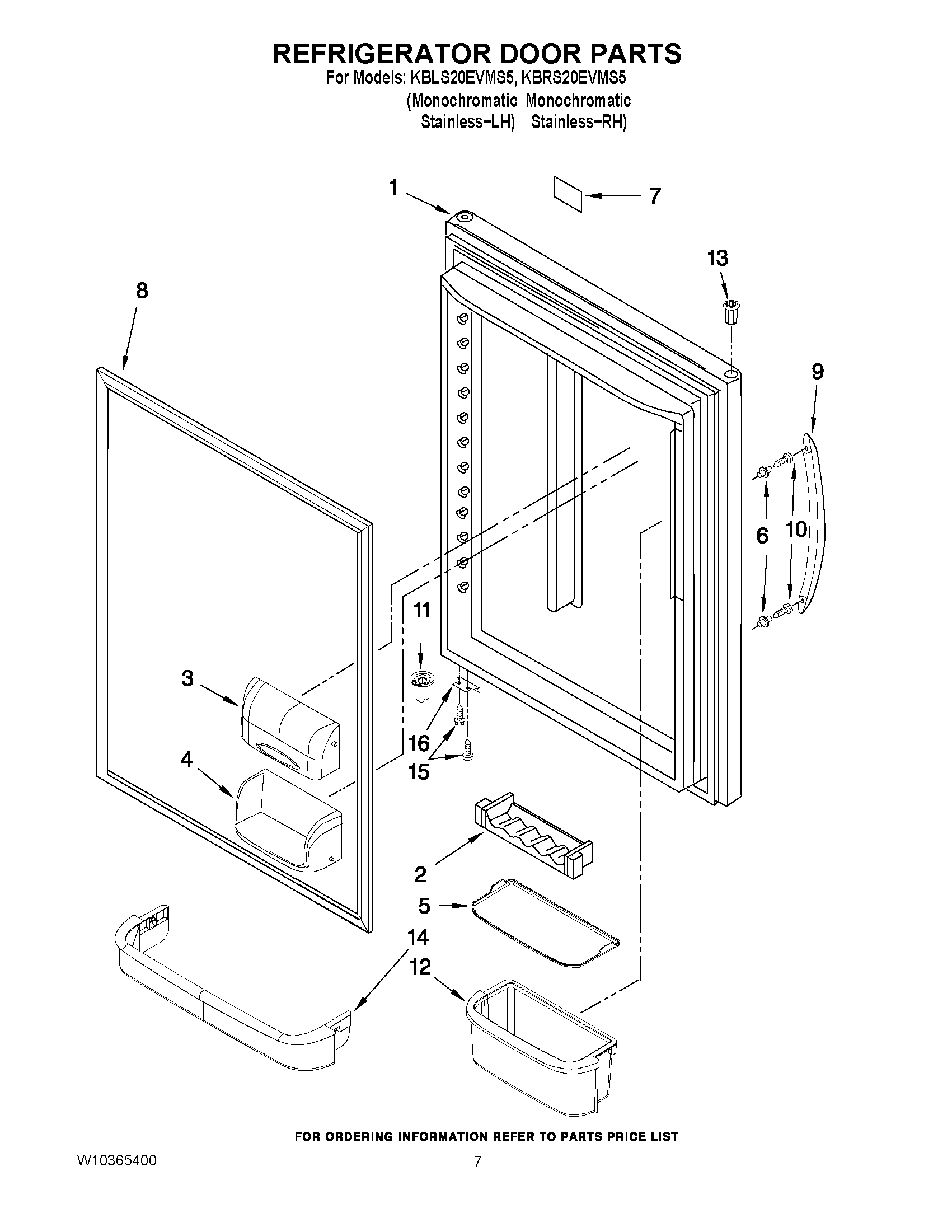

KBLS20EVMS5 04 – REFRIGERATOR DOOR PARTS

KBLS20EVMS5 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBLS20EVMS5 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (STAINLESS – RH)
1DOOR, REFRIGERATOR (STAINLESS – LH)
2WP67005626 Whirlpool Refrigerator Can Caddy
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5Gripper, Bucket
6WP67006113 Whirlpool Stud Bolt
7NAMEPLATE
8Gasket, Door (Apollo Grey)
9WPW10314517K Whirlpool Refrigerator Handle
10SCREW
11WP12028505AP Whirlpool Closing Cam
12BUCKET, SHELF (2) (GALLON)
1310961006AP Whirlpool Refrigerator Hinge Bushing
14Retainer, Door
15WP98165 Whirlpool Screw
16W11401472 Whirlpool Refrigerator Door Stop
