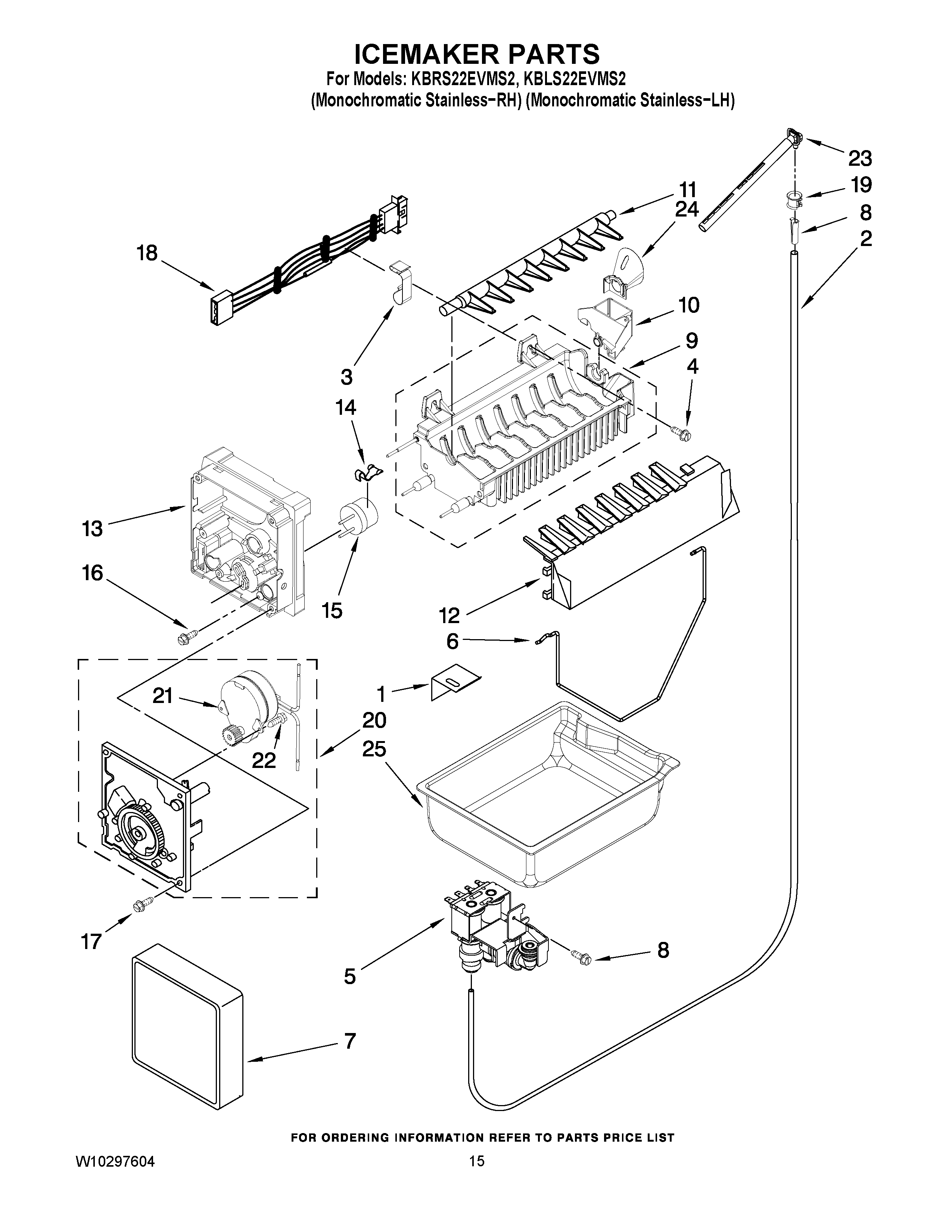

KBLS22EVMS2 08 – ICEMAKER PARTSadmin2025-04-26T11:45:51+00:00KBLS22EVMS2 08 – ICEMAKER PARTS ProductsPositionProduct1WP2256087 Whirlpool Refrigerator Bracket2W11120581 Whirlpool Refrigerator Water Tube3Clamp4WP681249 Whirlpool Screw Assembly5WP12544124 Whirlpool Refrigerator Valve6W11285509 Whirlpool Refrigerator Shut-Off Arm7WPW10289690 Whirlpool Ice Maker Cover8WPA3223101 Whirlpool Refrigerator Insert PL9WPW10190929 Whirlpool Refrigerator Ice Maker Mold10W10122561 Whirlpool Refrigerator Cup Fill11WP627843 Whirlpool Refrigerator Ejector Arm12WP2182124 Whirlpool Refrigerator Stripper Arm13WP2195914 Whirlpool Refrigerator Ice Maker Housing14WP2315522 Whirlpool Refrigerator Clip15WP627985 Whirlpool Icemaker Cycling Thermostat168533917 Whirlpool Refrigerator Screw17WP489464 Whirlpool Refrigerator Screw18WPD7813010 Whirlpool Refrigerator Wire Harness19WPM0114003 Whirlpool Microwave Speed Clip Clamp208201515 Whirlpool Refrigerator Motor and Gear Module Kit21CABINET (NOT A SERVICEABLE PART)22489136 Whirlpool Refrigerator Screw23W11176463 Whirlpool Refrigerator Water Tube2412918001 Whirlpool Refrigerator Funnel25WPW10171529 Whirlpool Refrigerator Ice Pan100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
